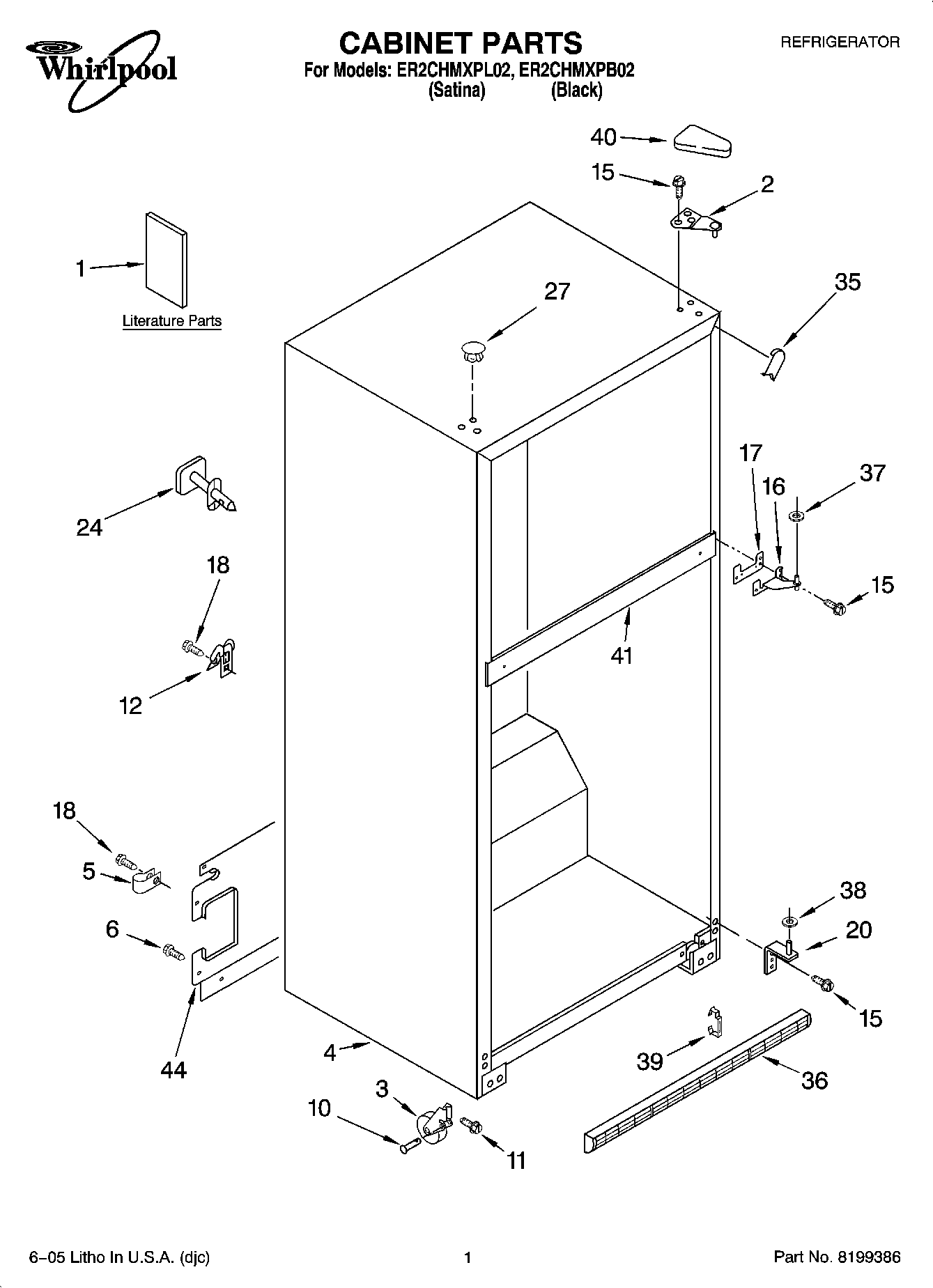

ER2CHMXPB02 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Modular Icemaker Service Sheet
1	Customer Instructions
1	Use & Care Guide
1	Energy Label
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cabinet (Not A Serviceable Part)
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
10	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
24	Fitting, Water Tube (Not Serviced)
27	WP2183998 Whirlpool Refrigerator Button Plug
35	W11252732 Whirlpool Refrigerator Filler
36	GRILLE (INCLUDES ILLUS. 19) (BLACK)
37	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
39	CLIP, GRILLE
40	WP2213363 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	Cover, Unit
