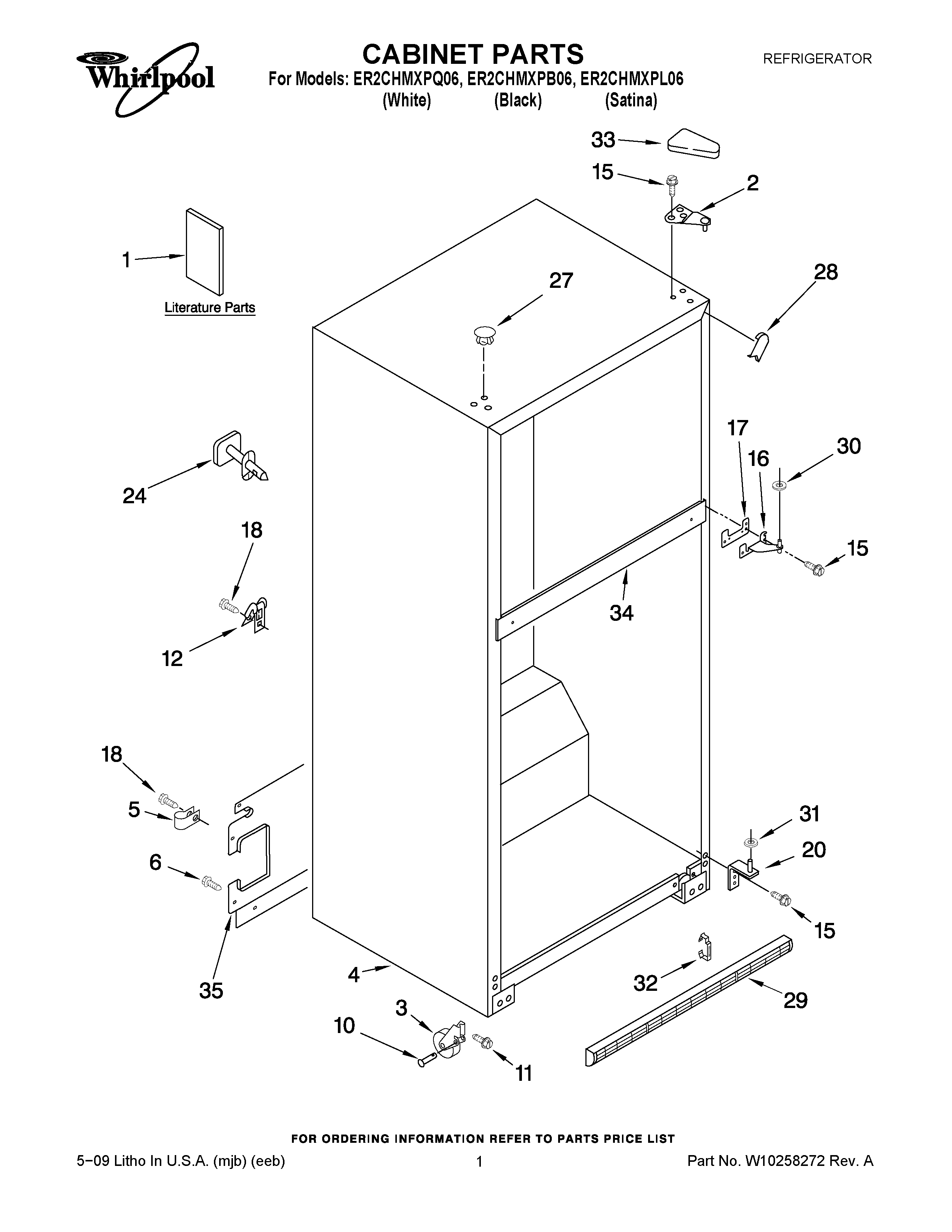

ER2CHMXPB06 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
1	ENERGY LABEL
1	Modular Icemaker Service Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cabinet, (Not A Serviceable Part)
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
10	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183852 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
24	Fitting, Water Tube (Not Serviced)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	WP2183998 Whirlpool Refrigerator Button Plug
28	W11252732 Whirlpool Refrigerator Filler
28	WPW10283959 Whirlpool Refrigerator Filler
29	GRILLE (INCLUDES ILLUS. 19) (BLACK)
29	Grille (White)
30	WP489467 Whirlpool Hinge Shim
31	WP487576 Whirlpool Washer
32	CLIP, GRILLE
33	WP2213360 Whirlpool Refrigerator Cover
33	WP2213363 Whirlpool Refrigerator Cover
34	Rail, Center (Not Serviced)
35	Cover, Unit
