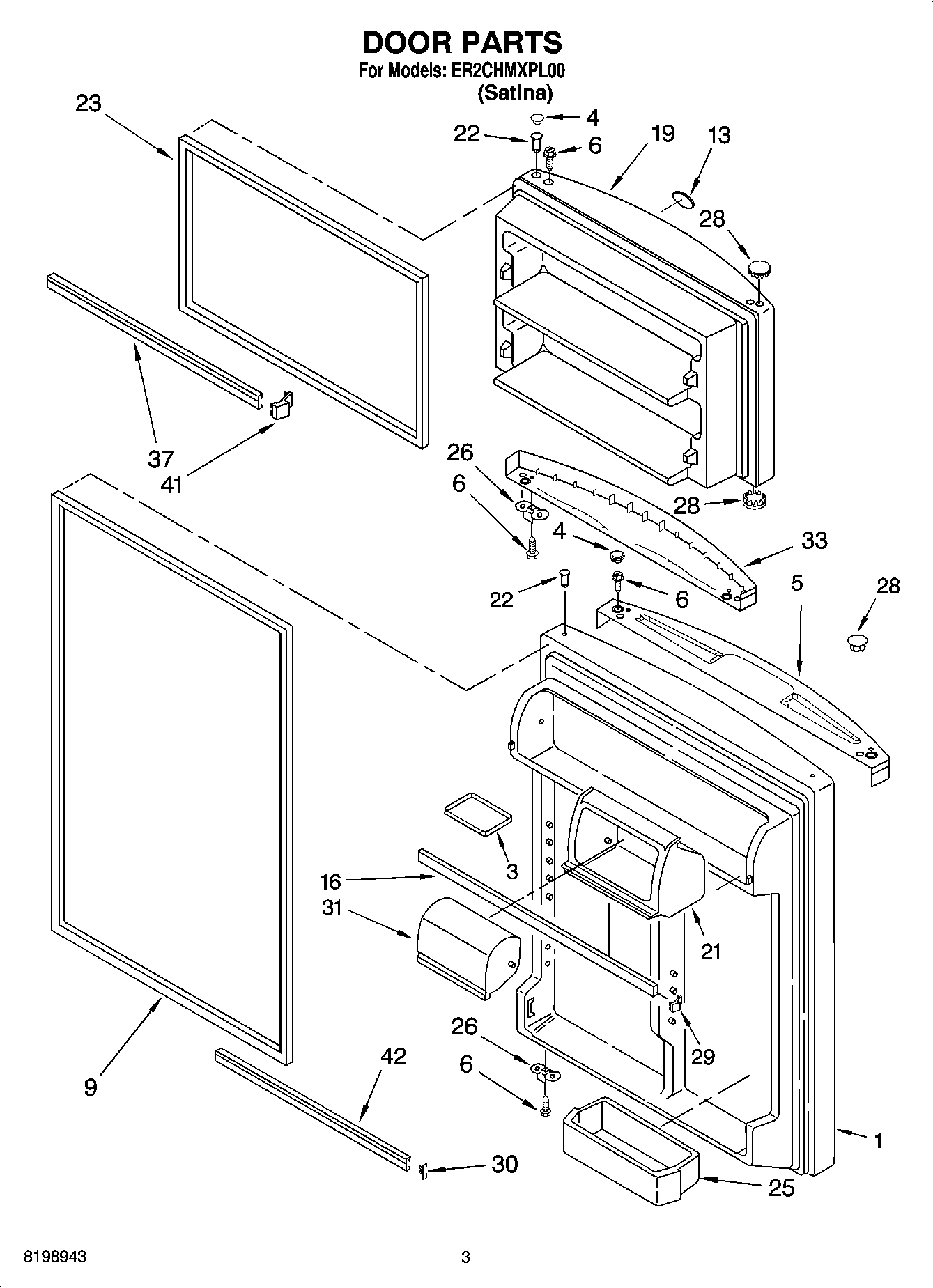

ER2CHMXPL00 02 – DOOR PARTS

ER2CHMXPL00 02 – DOOR PARTS

Written by

in

ER2CHMXPL00 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
3Tray, Door
4HOLE PLUG, ENDCAP (BLACK)
5Endcap, Handle (Black)
6WP681249 Whirlpool Screw Assembly
92177311 Whirlpool Refrigerator Magnetic Door Gasket
13WP2213265 Whirlpool Refrigerator Nameplate
16Trim, Door Shelf
19Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
21Housing Compartment
22WP2183003 Whirlpool Thimble
232177310 Whirlpool Refrigerator Door Gasket
25BIN-CNTLVR
26W11745278 Whirlpool Bracket
28WP2212651 Whirlpool Refrigerator Button Plug
29Endcap, Door Trim
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31DOOR-COMP
33Endcap, Handle (Black)
37Trim, Door Shelf (2)
41ENDCAP
42WPW10421486 Whirlpool Refrigerator Door Trim
