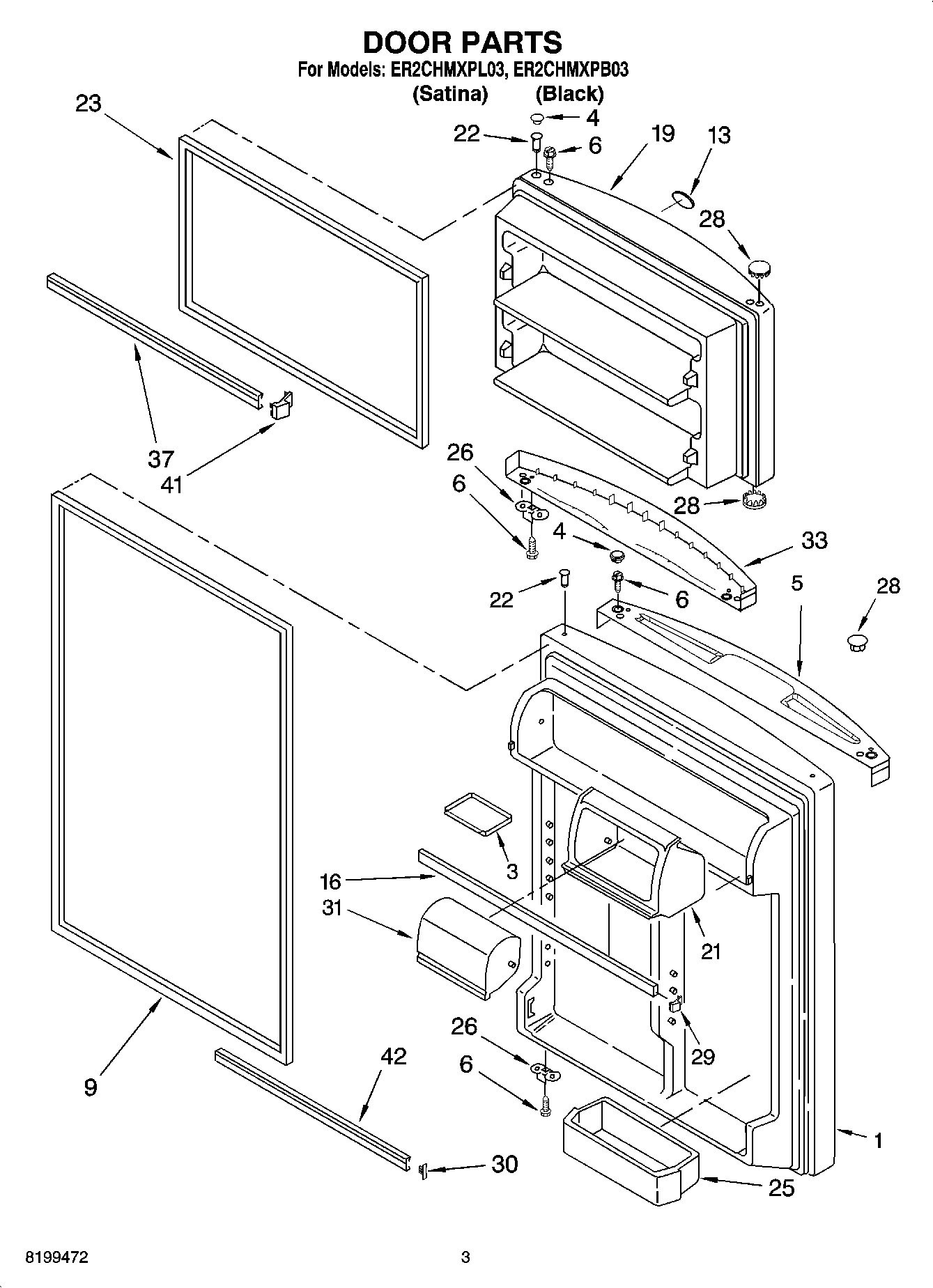

ER2CHMXPL03 02 – DOOR PARTS

ER2CHMXPL03 02 – DOOR PARTS

Written by

in

ER2CHMXPL03 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
3Tray, Door
4HOLE PLUG, ENDCAP (BLACK)
5Endcap, Handle (Black)
6WP681249 Whirlpool Screw Assembly
92177311 Whirlpool Refrigerator Magnetic Door Gasket
13WP2213265 Whirlpool Refrigerator Nameplate
16Trim, Door Shelf
19Freezer Door (Includes Illus. 6 & 7) (Black)
19Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
21Housing Compartment
22WP2183003 Whirlpool Thimble
232177310 Whirlpool Refrigerator Door Gasket
25BIN-CNTLVR
26W11745278 Whirlpool Bracket
28WP2212651 Whirlpool Refrigerator Button Plug
29Endcap, Door Trim
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31DOOR-COMP
33Endcap, Handle (Black)
37Trim, Door Shelf (2)
41ENDCAP
42WPW10421486 Whirlpool Refrigerator Door Trim
