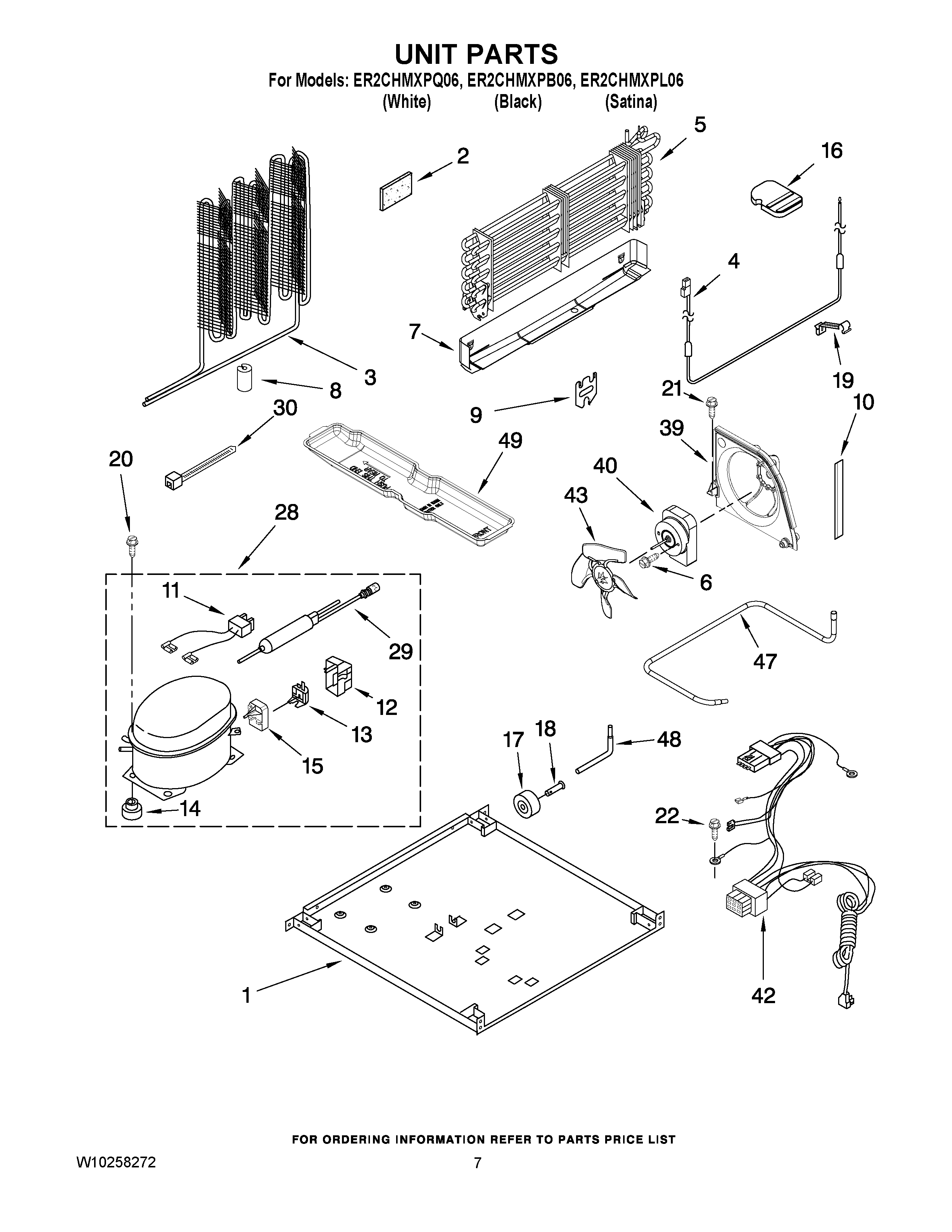

ER2CHMXPL06 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
NI	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	W10852725 Whirlpool Refrigerator Grommet
9	Bracket, Heater
10	Extension, Air Baffle
11	WPW10662129 Whirlpool Refrigerator Run Capacitor
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	8201647 Whirlpool Refrigerator Start Device
13	WP4387938 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2258450 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	3400518 Whirlpool Oven Foot Mount Screw
22	WP489128 Whirlpool Refrigerator Screw
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
39	WP2315541 Whirlpool Refrigerator Air Baffle
40	WP2188874 Whirlpool Refrigerator Condenser Motor
42	2187382 Whirlpool Refrigerator Wire Harness
43	W11458267 Whirlpool Refrigerator Fan Blade
47	2205293 Whirlpool Refrigerator Tube
48	W11676464 Whirlpool Tube
49	WP2254574 Whirlpool Refrigerator Evaporator Tray
