ER2CHMXPQ04 02 – DOOR PARTS

ER2CHMXPQ04 02 – DOOR PARTS

Written by

in

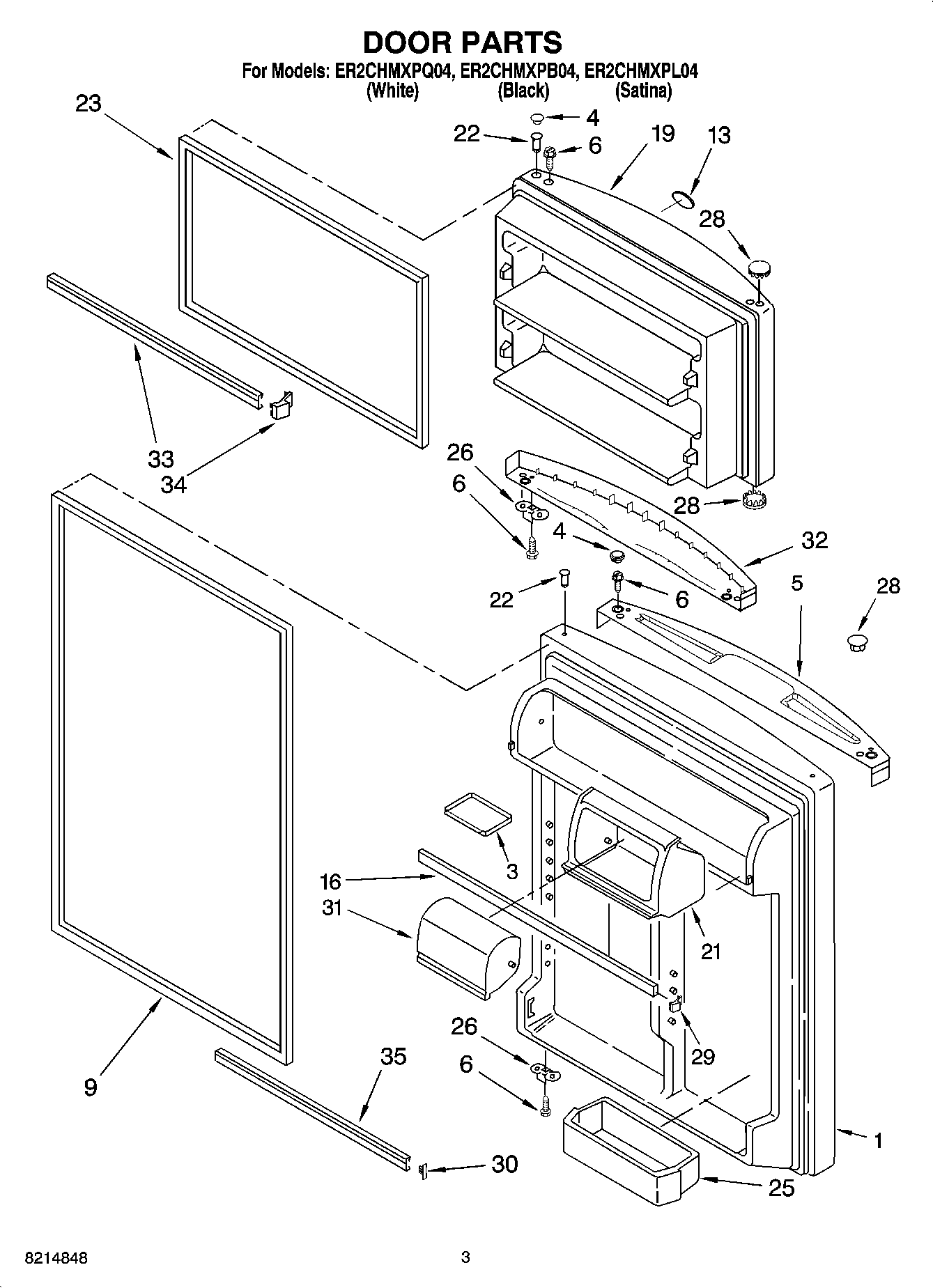

ER2CHMXPQ04 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (White)
1Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
3Tray, Door
4HOLE PLUG, ENDCAP (BLACK)
4HOLE PLUG, ENDCAP (WHITE)
5Endcap, Handle (Black)
5Endcap, Handle (White)
6WP681249 Whirlpool Screw Assembly
92159061 Whirlpool Refrigerator Door Gasket
92177311 Whirlpool Refrigerator Magnetic Door Gasket
13WP2213265 Whirlpool Refrigerator Nameplate
16Trim, Door Shelf
19Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
19Freezer Door (Includes Illus. 6 & 7) (Black)
19Freezer Door (Includes Illus. 6 & 7) (White)
21Housing Compartment
22WP2314293 Whirlpool Refrigerator Thimble
23WHITE DOOR GASKET-FIP
232177310 Whirlpool Refrigerator Door Gasket
25BIN-CNTLVR
26W11745278 Whirlpool Bracket
28WP2212651 Whirlpool Refrigerator Button Plug
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29Endcap, Door Trim
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31DOOR-COMP
32Endcap, Handle (Black)
32Endcap, Handle (White)
33Trim, Door Shelf (2)
34ENDCAP
35WPW10421486 Whirlpool Refrigerator Door Trim
