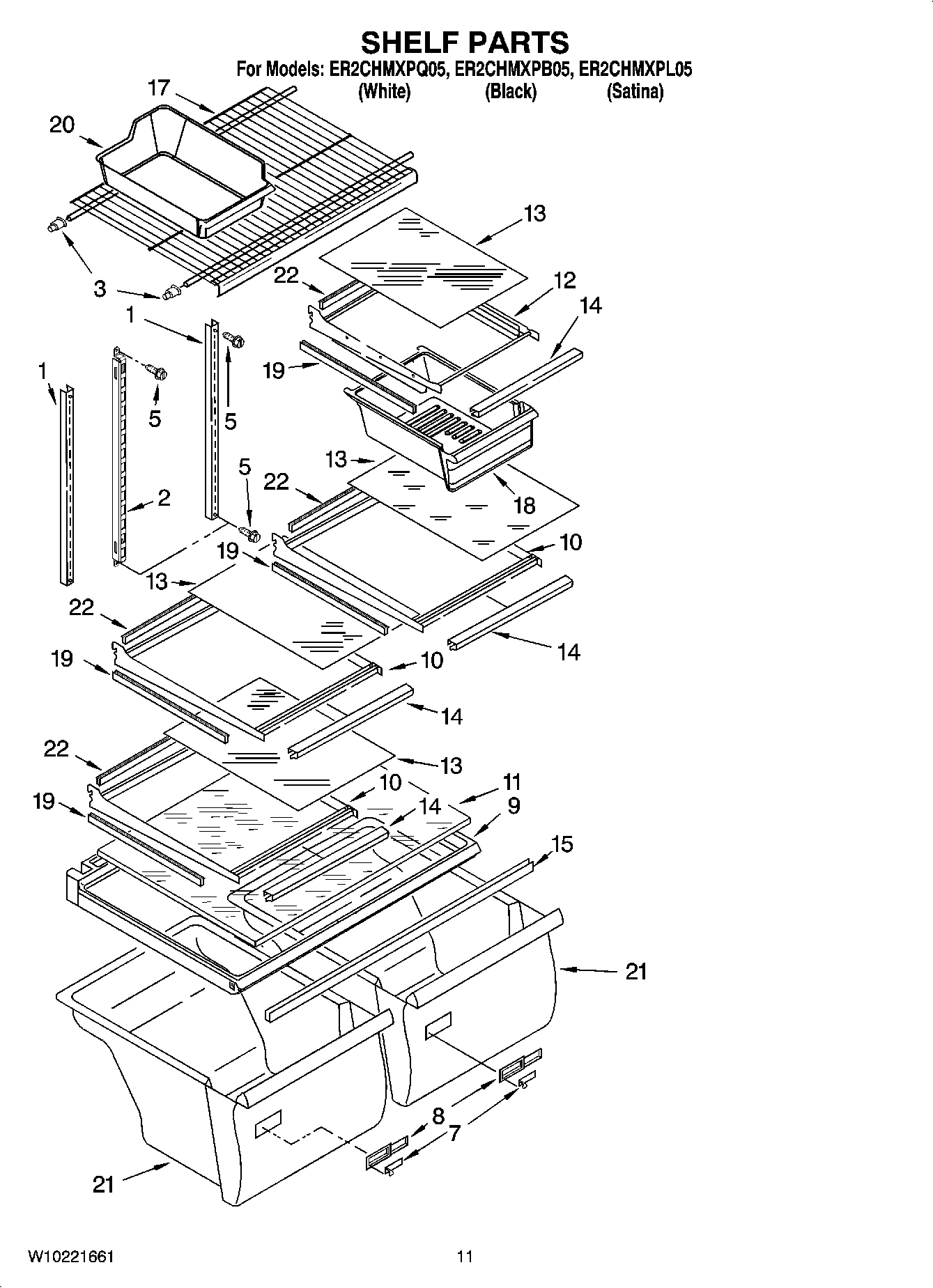

ER2CHMXPQ05 06 – SHELF PARTS, OPTIONAL PARTS

Written by

Products

Position	Product
	350930 Whirlpool White Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL 799832
	WPL 799833
	WPL 876029
	WPL ARI39975A7
	WPL ARI39974A5
	WPL ARI39973A8
	WPL ARI39972A4
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL 786032
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI39976A5
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WPL ARI39977A2
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
5	WP489478 Whirlpool Refrigerator Screw
7	WP2176222 Whirlpool Refrigerator Slide
8	WP2212446 Whirlpool Refrigerator Control Body
9	WP2314549 Whirlpool Refrigerator Cover
10	Shelf, Cantilever
11	WP2176225 Whirlpool Glass Shelf
12	Pan, Shelf Cantilever
13	Glass, Shelf
14	Trim, Shelf Front
15	WP2172748 Whirlpool Drawer Support
17	Shelf, Freezer
18	WP2218132K Whirlpool Crisper Meat Pan
19	Trim, Shelf Side
20	2254352A Whirlpool Refrigerator Ice Container
21	W10854037 Whirlpool Refrigerator Crisper Pan
22	WP2188689 Whirlpool Refrigerator Shelf Trim
