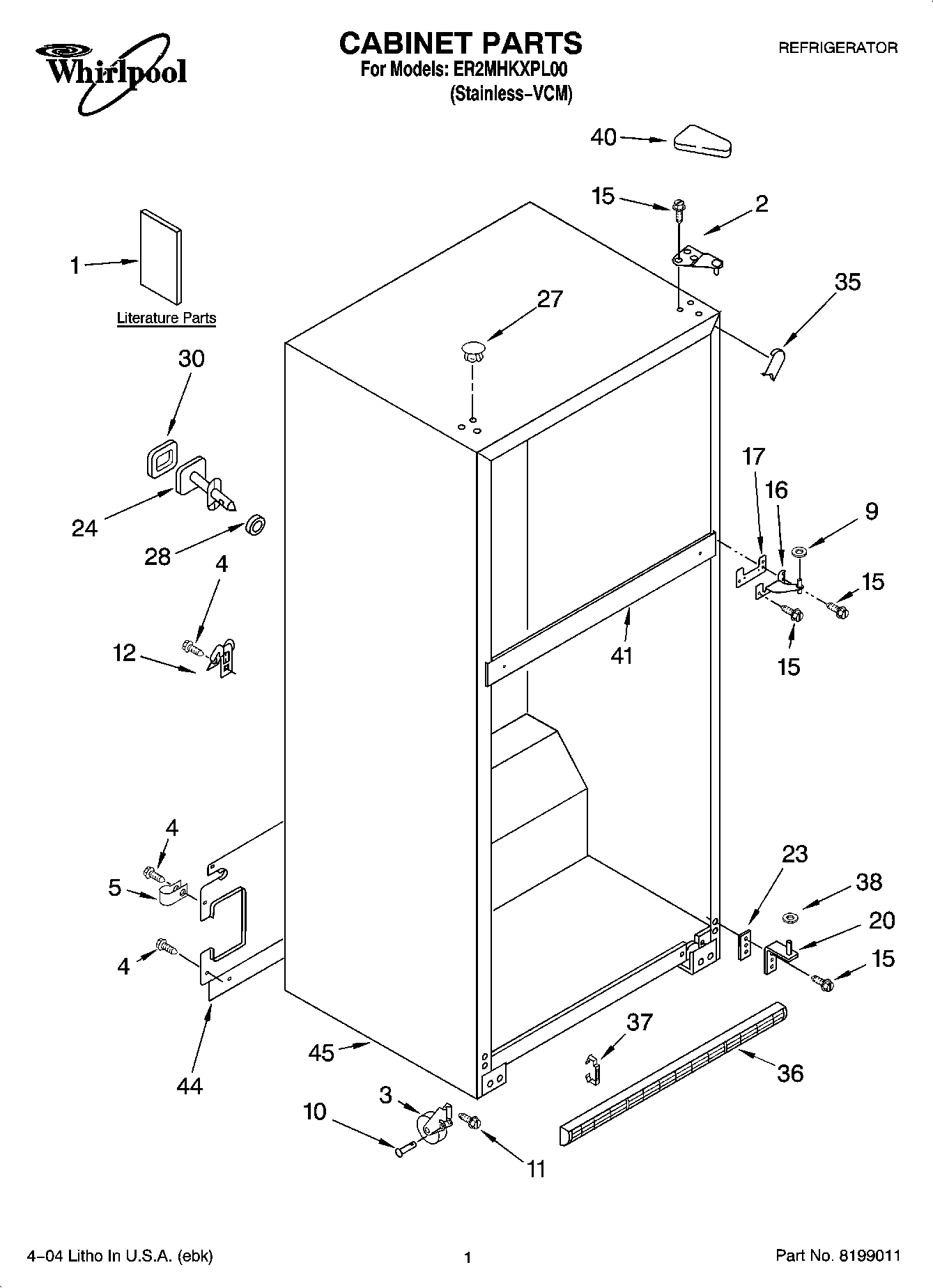

ER2MHKXPL00 01 – CABINET PARTS

Products

PositionProduct
1Customer Instructions
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Energy Label
1Use & Care Guide
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489464 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
9WP489467 Whirlpool Hinge Shim
10W11594405 Whirlpool Axle
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
20WP2254473 Whirlpool Refrigerator Door Hinge
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27WP2183998 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35W11252732 Whirlpool Refrigerator Filler
36GRILLE (INCLUDES ILLUS. 19) (BLACK)
37CLIP, GRILLE
38WP487576 Whirlpool Washer
40WP2213363 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
44Cover, Unit
45Cabinet (Not A Serviceable Part)
