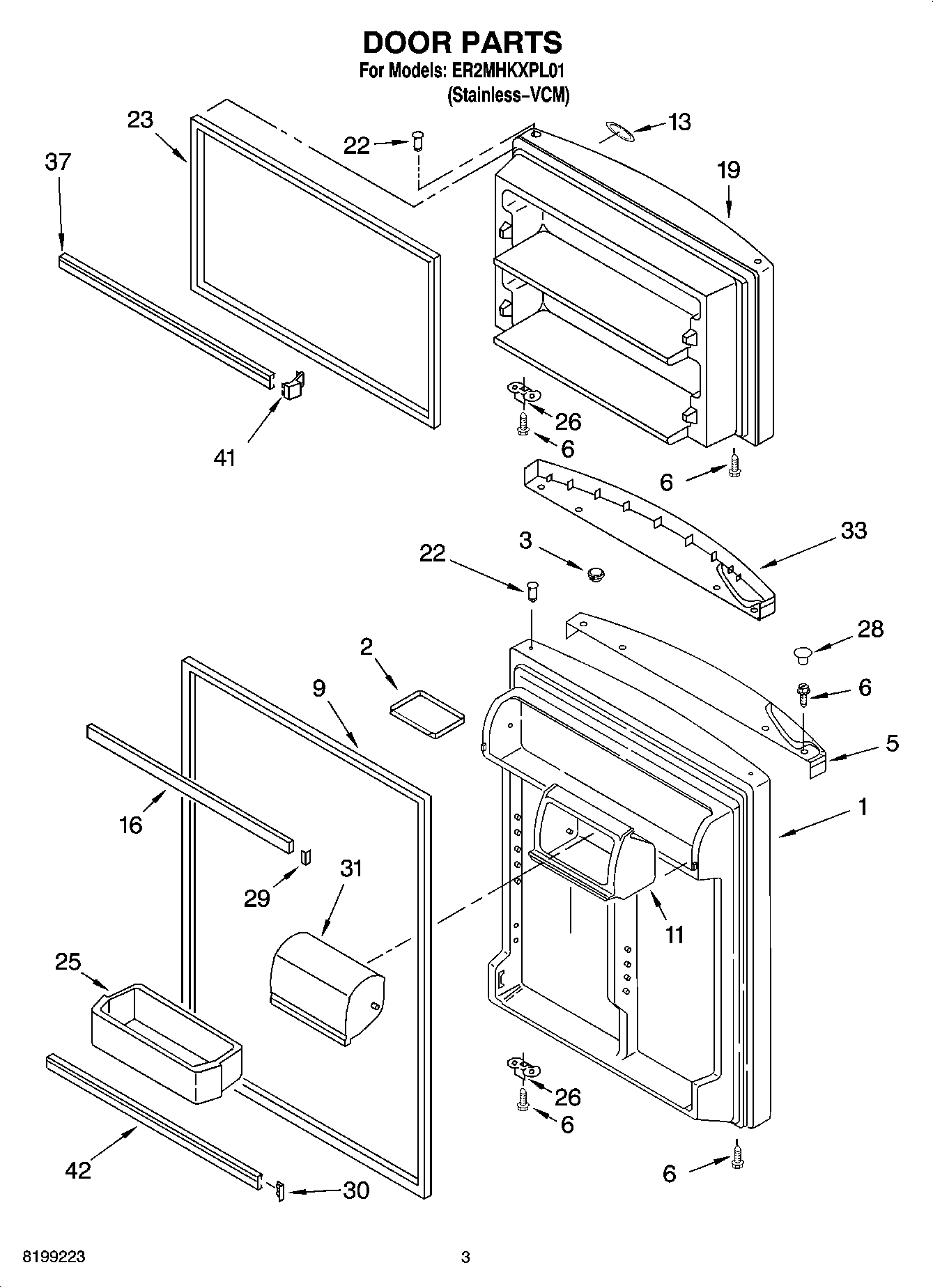

ER2MHKXPL01 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
2	Tray, Door
3	HOLE PLUG, ENDCAP (BLACK)
5	Endcap, Handle (Black)
6	WP681249 Whirlpool Screw Assembly
9	2177311 Whirlpool Refrigerator Magnetic Door Gasket
11	Housing Compartment
13	WP2213265 Whirlpool Refrigerator Nameplate
16	Trim, Door Shelf
19	Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
22	WP2183003 Whirlpool Thimble
23	2177310 Whirlpool Refrigerator Door Gasket
25	BIN-CNTLVR
26	W11745278 Whirlpool Bracket
28	WP2212651 Whirlpool Refrigerator Button Plug
29	Endcap, Door Trim
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	DOOR-COMP
33	Endcap, Handle (Black)
37	Trim, Door Shelf (2)
41	ENDCAP
42	WPW10421486 Whirlpool Refrigerator Door Trim
