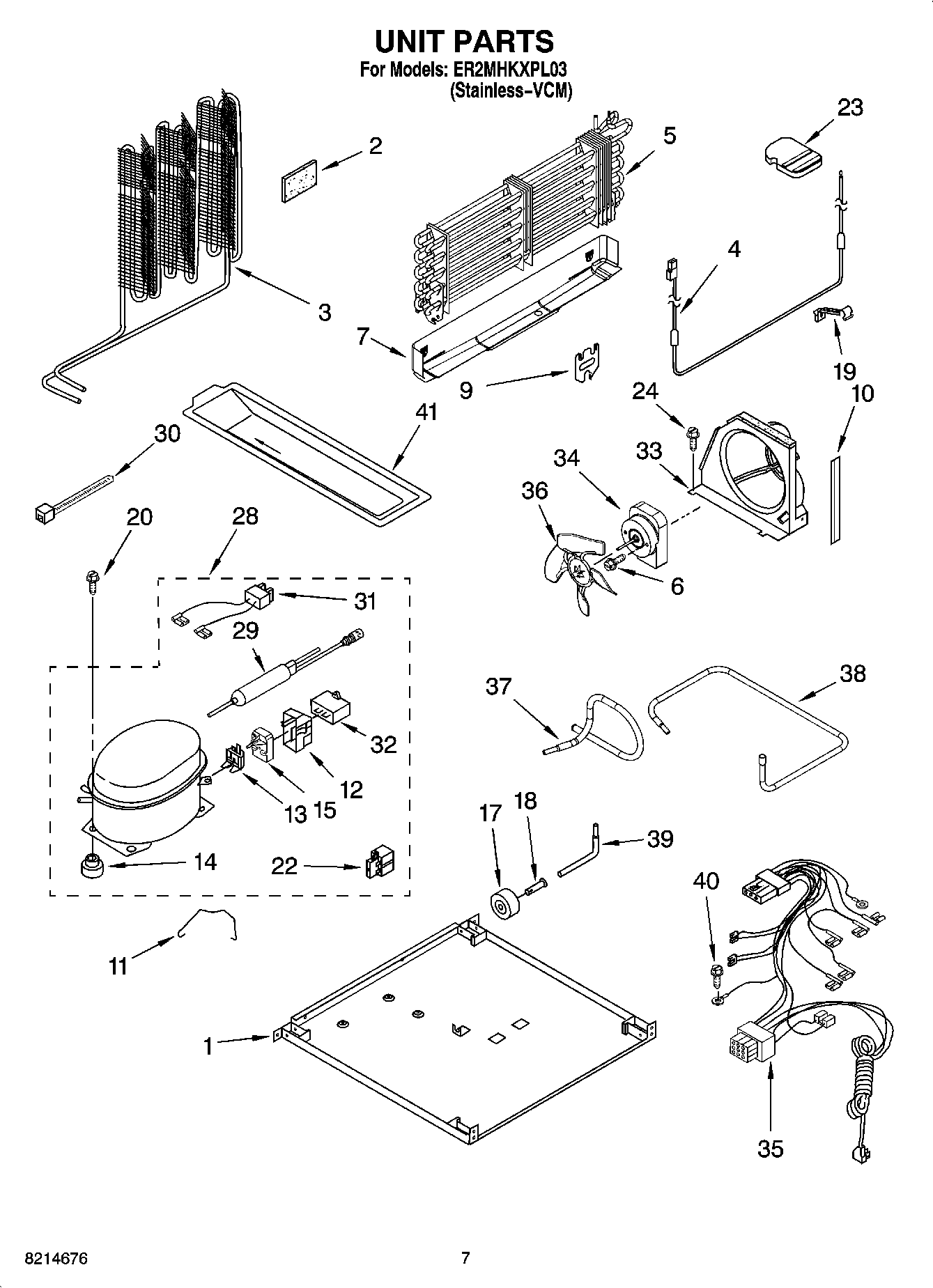

ER2MHKXPL03 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
11	2212996 Whirlpool Refrigerator Retainer
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	WP2225785 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
22	W10920279 Whirlpool Refrigerator Start Relay
23	Support Block
24	3400518 Whirlpool Oven Foot Mount Screw
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	WP2172890 Whirlpool Refrigerator Wire
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Air Baffle
34	WP2188874 Whirlpool Refrigerator Condenser Motor
35	2187382 Whirlpool Refrigerator Wire Harness
36	W11458267 Whirlpool Refrigerator Fan Blade
37	Tube, Discharge
38	Tube, Suction
39	2154109 Whirlpool Refrigerator Tube
40	WP489128 Whirlpool Refrigerator Screw
41	8201826 Whirlpool Refrigerator Evaporator Tray
41	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
41	Following Parts Not Illustrated and Optional Parts Not Included
41	978026 Whirlpool Refrigerator Primary Valve
41	VALVE, ACCESS (5/8“)
41	VALVE, ACCESS (1/2“)
41	WP978025 Whirlpool Refrigerator Valve
41	978030 Whirlpool Refrigerator Valve
41	978027 Whirlpool Refrigerator Primary Valve
41	876764 Whirlpool Refrigerator Primary Valve
