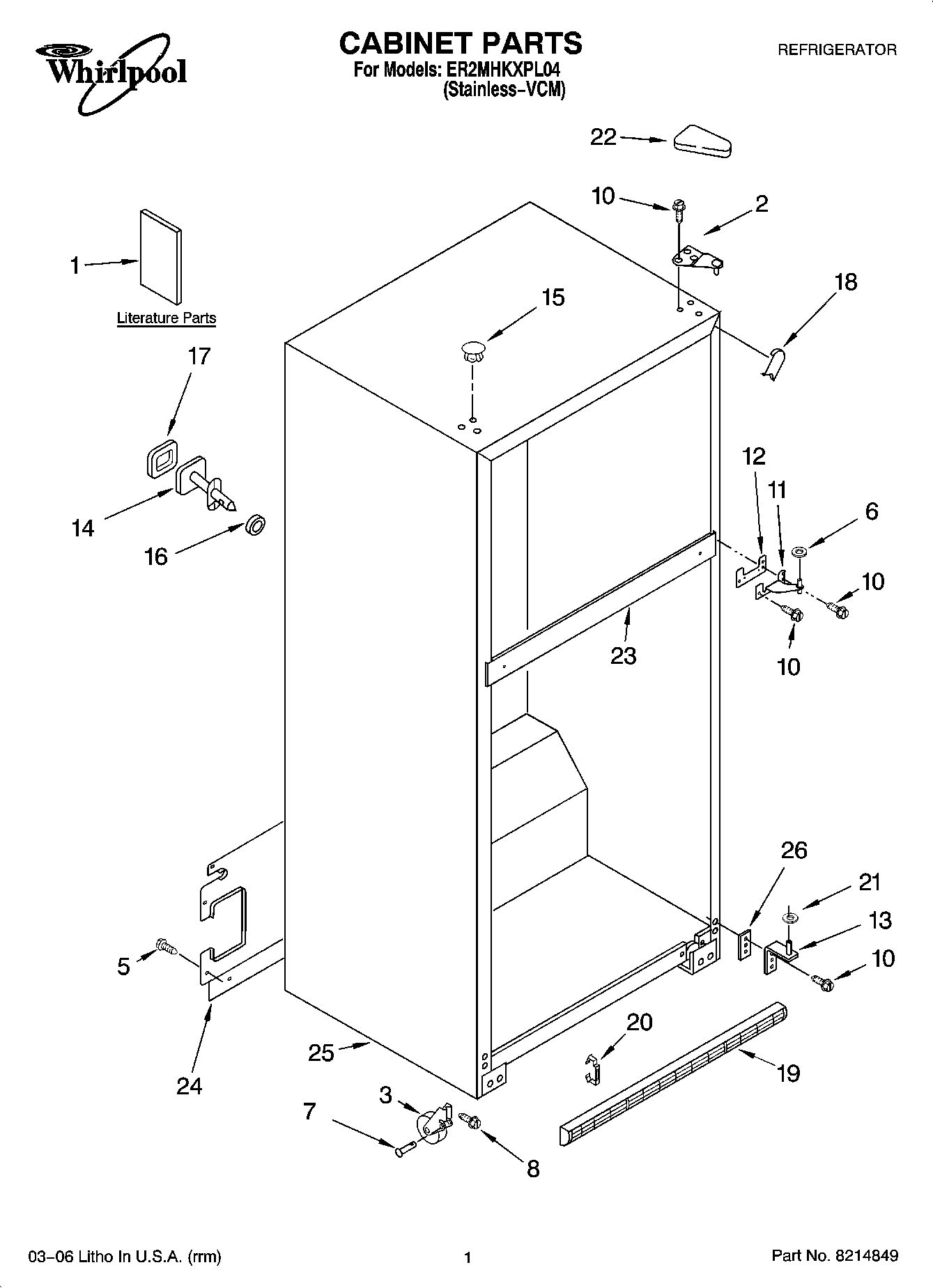

ER2MHKXPL04 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide
1	Service & Wiring Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP489467 Whirlpool Hinge Shim
7	W11594405 Whirlpool Axle
8	WP3400504 Whirlpool Refrigerator Screw
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183854 Whirlpool Refrigerator Shim
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	Fitting, Water Tube (Not Serviced)
15	WP2183998 Whirlpool Refrigerator Button Plug
16	Seal, Front (Not Serviced)
17	Seal, Rear (Not Serviced)
18	W11252732 Whirlpool Refrigerator Filler
19	GRILLE (INCLUDES ILLUS. 19) (BLACK)
20	CLIP, GRILLE
21	WP487576 Whirlpool Washer
22	WP2213363 Whirlpool Refrigerator Cover
23	Rail, Center (Not Serviced)
24	Cover, Unit
25	Cabinet, (Not A Serviceable Part)
26	Shim, Bottom Hinge
