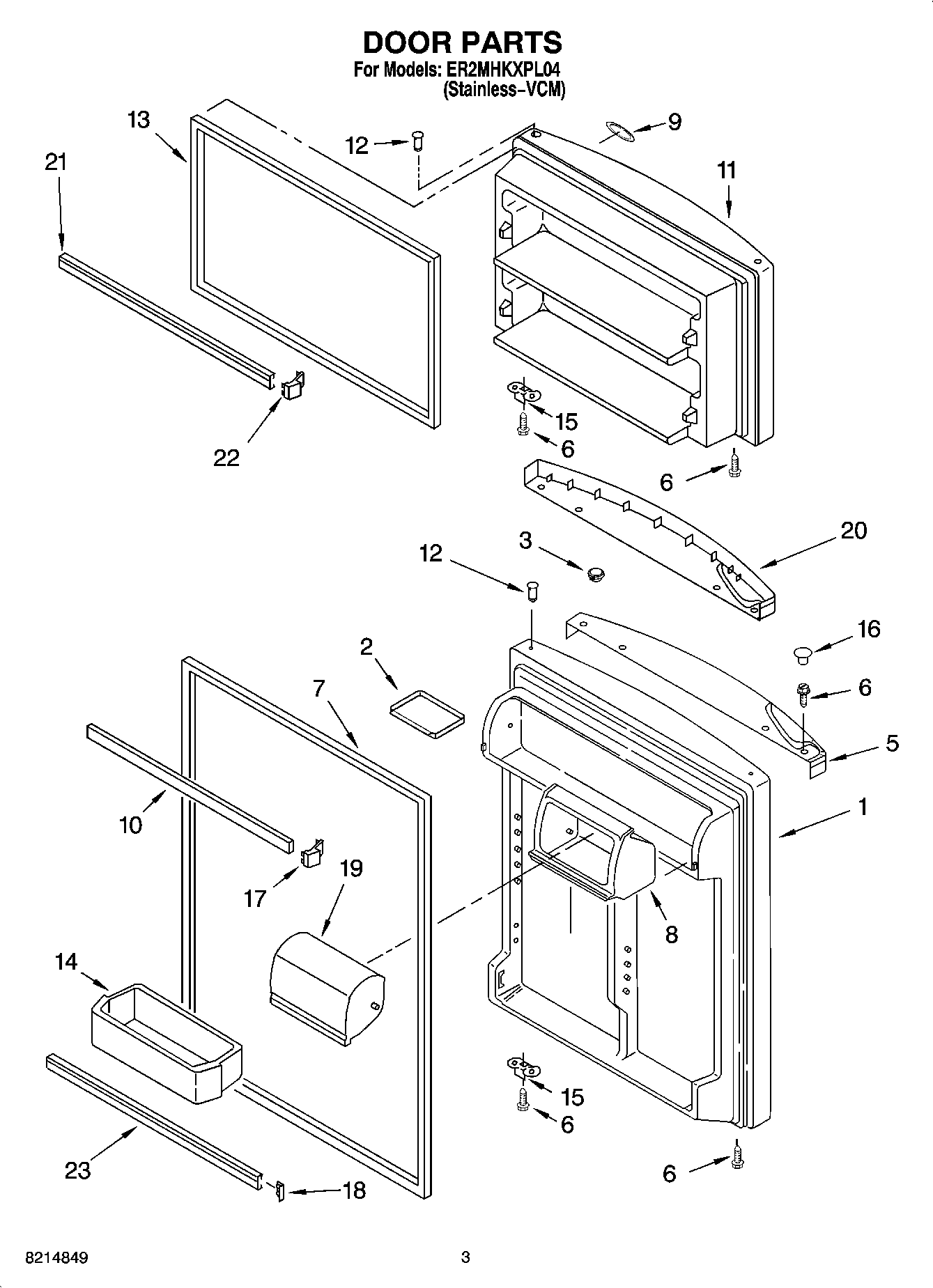

ER2MHKXPL04 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
2	Tray, Door
3	HOLE PLUG, ENDCAP (BLACK)
5	Endcap, Handle (Black)
6	WP681249 Whirlpool Screw Assembly
7	2177311 Whirlpool Refrigerator Magnetic Door Gasket
8	Housing Compartment
9	WP2213265 Whirlpool Refrigerator Nameplate
10	Trim, Door Shelf
11	Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
12	WP2183003 Whirlpool Thimble
13	2177310 Whirlpool Refrigerator Door Gasket
14	BIN-CNTLVR
15	W11745278 Whirlpool Bracket
16	WP2212651 Whirlpool Refrigerator Button Plug
17	Endcap, Door Trim
18	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
19	DOOR-COMP
20	Endcap, Handle (Black)
21	Trim, Door Shelf (2)
22	ENDCAP
23	WPW10421486 Whirlpool Refrigerator Door Trim
