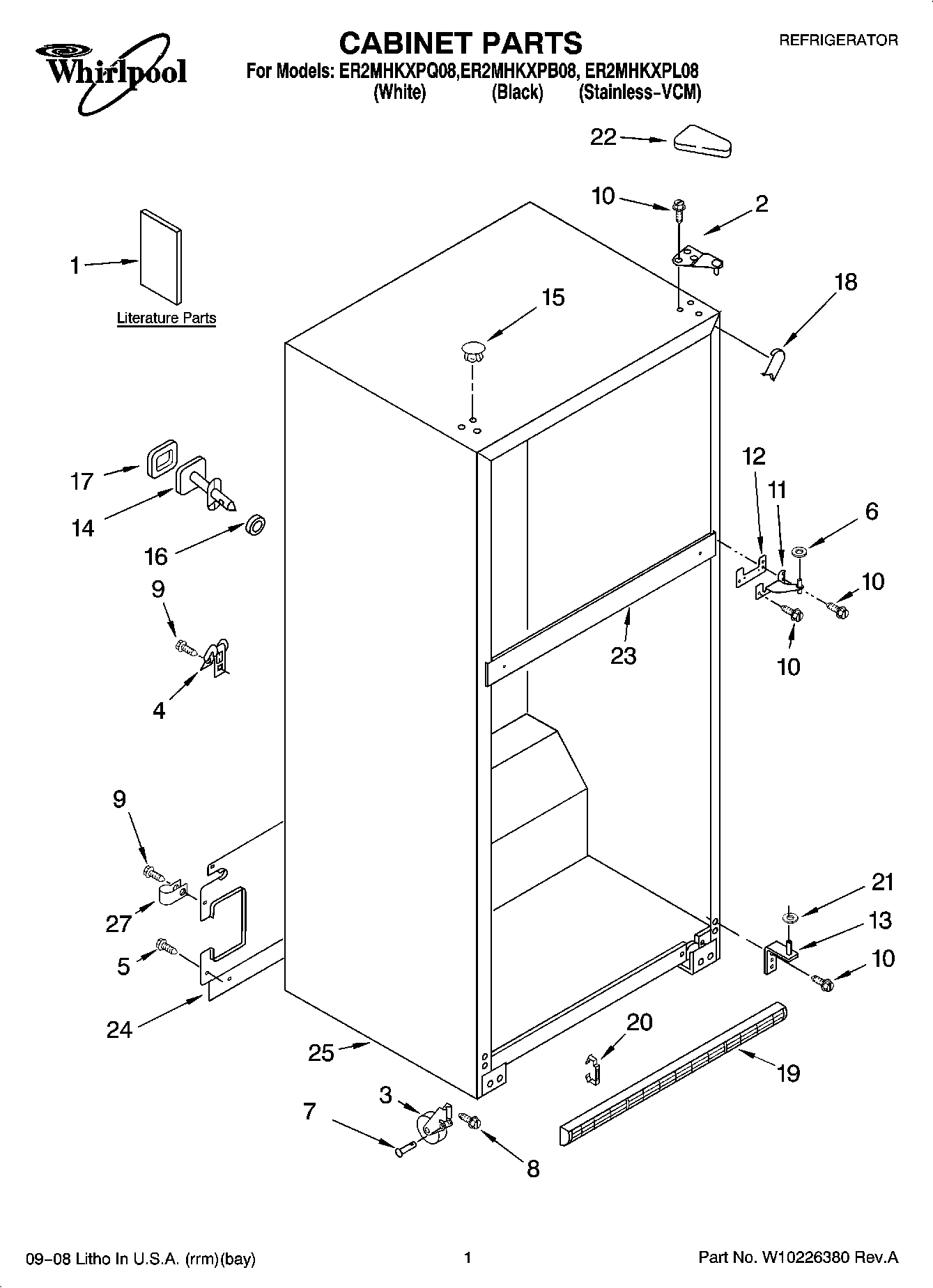

ER2MHKXPL08 01 – CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
1	Use & Care Guide (Trilingual)
1	Use & Care Guide (Bilingual)
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	549193 Whirlpool Refrigerator Power Clamp
5	WP489427 Whirlpool Refrigerator Screw
6	WP489467 Whirlpool Hinge Shim
7	W11594405 Whirlpool Axle
8	WP3400504 Whirlpool Refrigerator Screw
9	WP489464 Whirlpool Refrigerator Screw
10	WP489497 Whirlpool Screw
11	WP2254618 Whirlpool Center Door Hinge
12	WP2183852 Whirlpool Refrigerator Shim
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	Fitting, Water Tube (Not Serviced)
15	WP2151652 Whirlpool Refrigerator Button Plug
15	WP2183998 Whirlpool Refrigerator Button Plug
16	Seal, Front (Not Serviced)
17	Seal, Rear (Not Serviced)
18	WPW10283959 Whirlpool Refrigerator Filler
18	W11252732 Whirlpool Refrigerator Filler
19	Grille (White)
19	GRILLE (INCLUDES ILLUS. 19) (BLACK)
20	CLIP, GRILLE
21	WP487576 Whirlpool Washer
22	WP2213360 Whirlpool Refrigerator Cover
22	WP2213363 Whirlpool Refrigerator Cover
23	Rail, Center (Not Serviced)
24	Cover, Unit
25	Cabinet, (Not A Serviceable Part)
27	WP488366 Whirlpool Refrigerator Clamp
