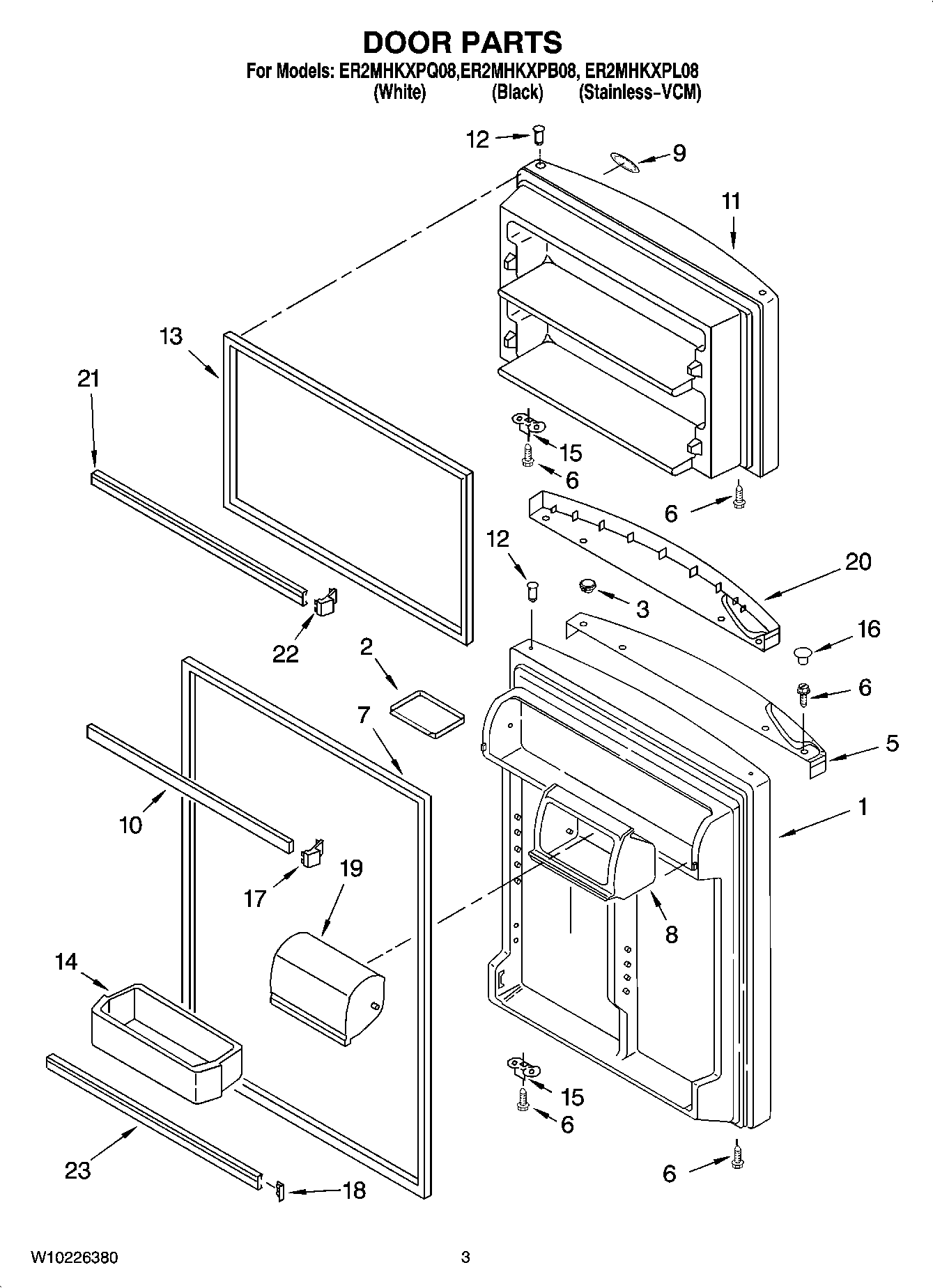

ER2MHKXPL08 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 8 & 12) (White)
1	Refrigerator Door (Includes Illus. 8 & 12) (Stainless VCM)
1	Refrigerator Door (Includes Illus. 8 & 12) (Black)
2	Tray, Door
3	HOLE PLUG, ENDCAP (BLACK)
3	HOLE PLUG, ENDCAP (WHITE)
5	Endcap, Handle (Black)
5	Endcap, Handle (White)
6	WP681249 Whirlpool Screw Assembly
7	2159061 Whirlpool Refrigerator Door Gasket
7	2177311 Whirlpool Refrigerator Magnetic Door Gasket
8	Housing Compartment
9	WP2213265 Whirlpool Refrigerator Nameplate
10	Trim, Door Shelf
11	Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
11	Freezer Door (Includes Illus. 6 & 7) (Black)
11	Freezer Door (Includes Illus. 6 & 7) (White)
12	WP2314293 Whirlpool Refrigerator Thimble
13	WHITE DOOR GASKET-FIP
13	2177310 Whirlpool Refrigerator Door Gasket
14	BIN-CNTLVR
15	W11745278 Whirlpool Bracket
16	WP2212651 Whirlpool Refrigerator Button Plug
16	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
17	Endcap, Door Trim
18	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
19	DOOR-COMP
20	Endcap, Handle (Black)
20	Endcap, Handle (White)
21	Trim, Door Shelf (2)
22	ENDCAP
23	WPW10421486 Whirlpool Refrigerator Door Trim
