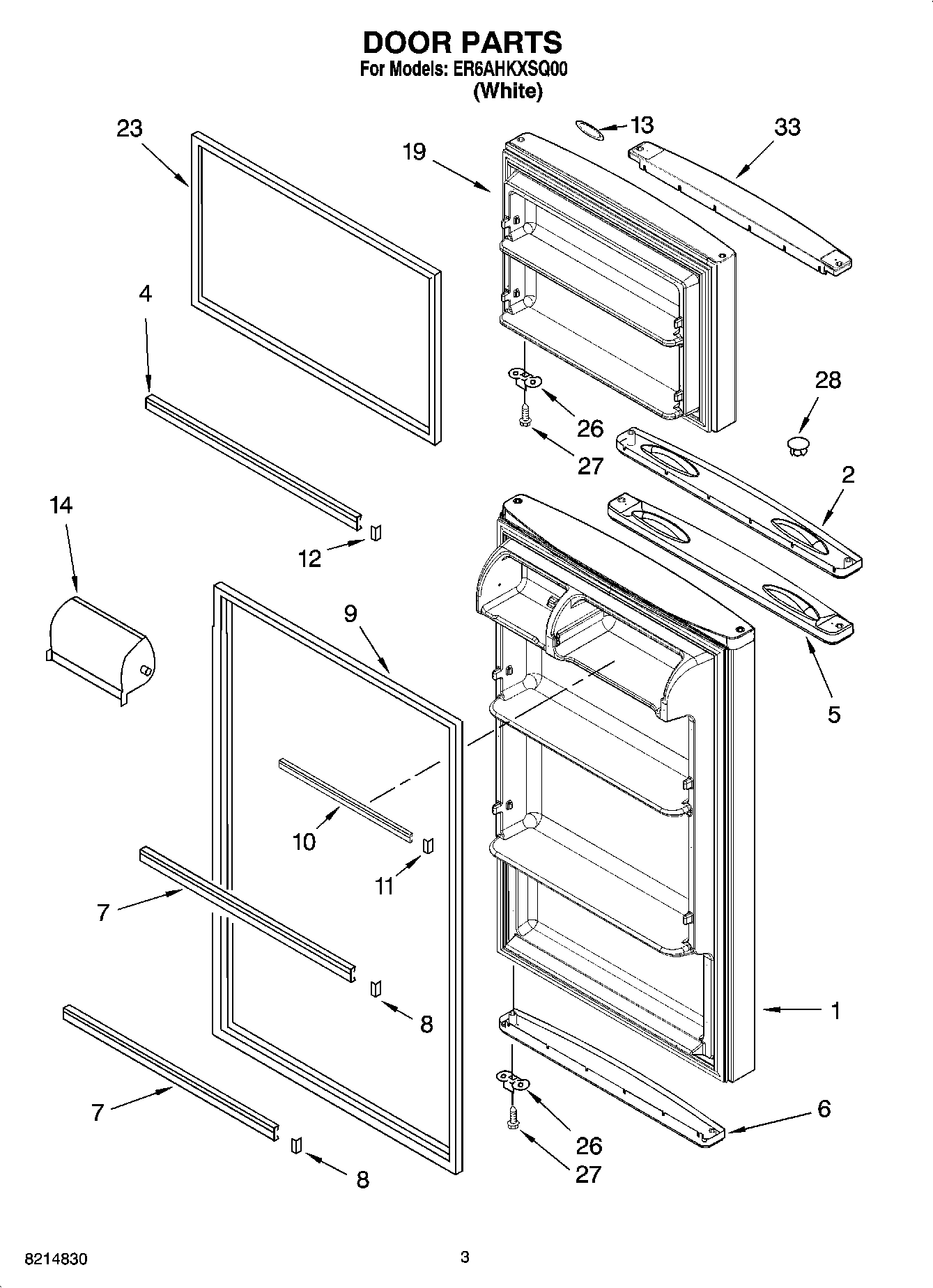

ER6AHKXSQ00 02 – DOOR PARTS

ER6AHKXSQ00 02 – DOOR PARTS

Written by

in

ER6AHKXSQ00 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 9 & MOLDED DOOR HANDLE) (WHITE)
22265645W Whirlpool Refrigerator Handle
4WP2266727 Whirlpool Refrigerator Door Trim
6Endcap, Bottom (White)
7WP2266738 Whirlpool Refrigerator Door Trim
8ENDCAP
9WP2319266T Whirlpool Refrigerator FIP Gasket
10W11129820 Whirlpool Refrigerator Door Trim
11ENDCAP-TRM
12WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13WP2213265 Whirlpool Refrigerator Nameplate
14DOOR-COMP
192316367W Whirlpool Refrigerator DOR-FIP WH (DROP SHIP)
23WP2319263T Whirlpool Refrigerator FIP Gasket
26W11745278 Whirlpool Bracket
27SCREW
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
332265644W Whirlpool Refrigerator Door Trim
