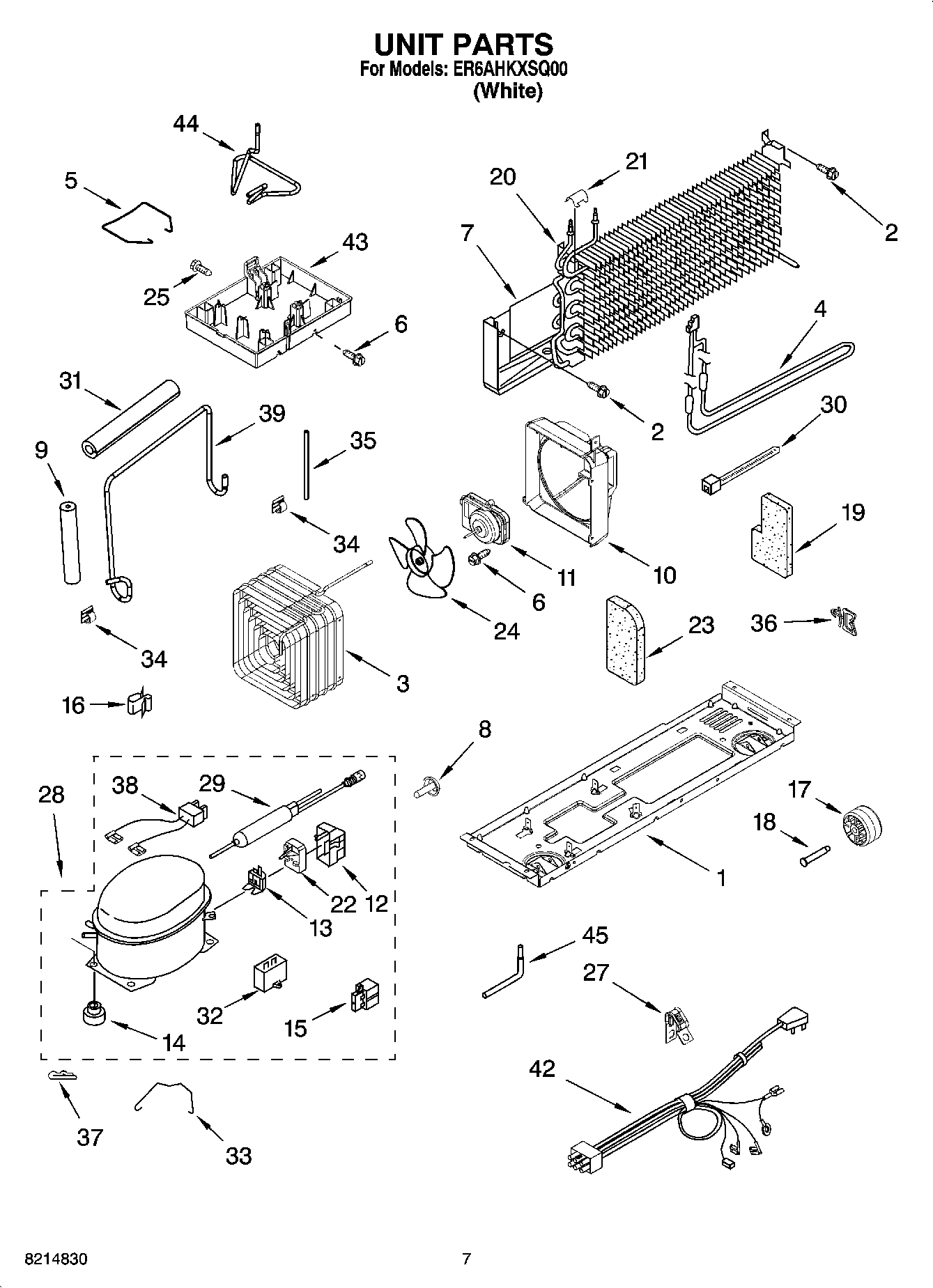

ER6AHKXSQ00 04 – UNIT PARTS

ER6AHKXSQ00 04 – UNIT PARTS

Written by

in

ER6AHKXSQ00 04 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (5/8“)
	876764 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	978027 Whirlpool Refrigerator Primary Valve
	978030 Whirlpool Refrigerator Valve
	WP978025 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	WP2264004 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	Snap Rivet
9	SLEEVE
10	WP2263929 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WPW10169124 Whirlpool Refrigerator Grommet
15	W10920279 Whirlpool Refrigerator Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	WP2225929 Whirlpool Refrigerator Start Device
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
27	549193 Whirlpool Refrigerator Power Clamp
28	Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	2264838 Whirlpool Refrigerator Sleeve
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	2212996 Whirlpool Refrigerator Retainer
34	W11501419 Whirlpool Refrigerator Clip
35	2264278 Whirlpool Refrigerator Extension
36	CLIP, HARNESS
37	Clip, Compressor
38	WP2172890 Whirlpool Refrigerator Wire
39	2264131 Whirlpool Refrigerator Tube Extension
42	Wire Assy. Unit
43	WP2263928 Whirlpool Refrigerator Evaporator Tray
44	2316181 Whirlpool Tube
45	W11676464 Whirlpool Tube
