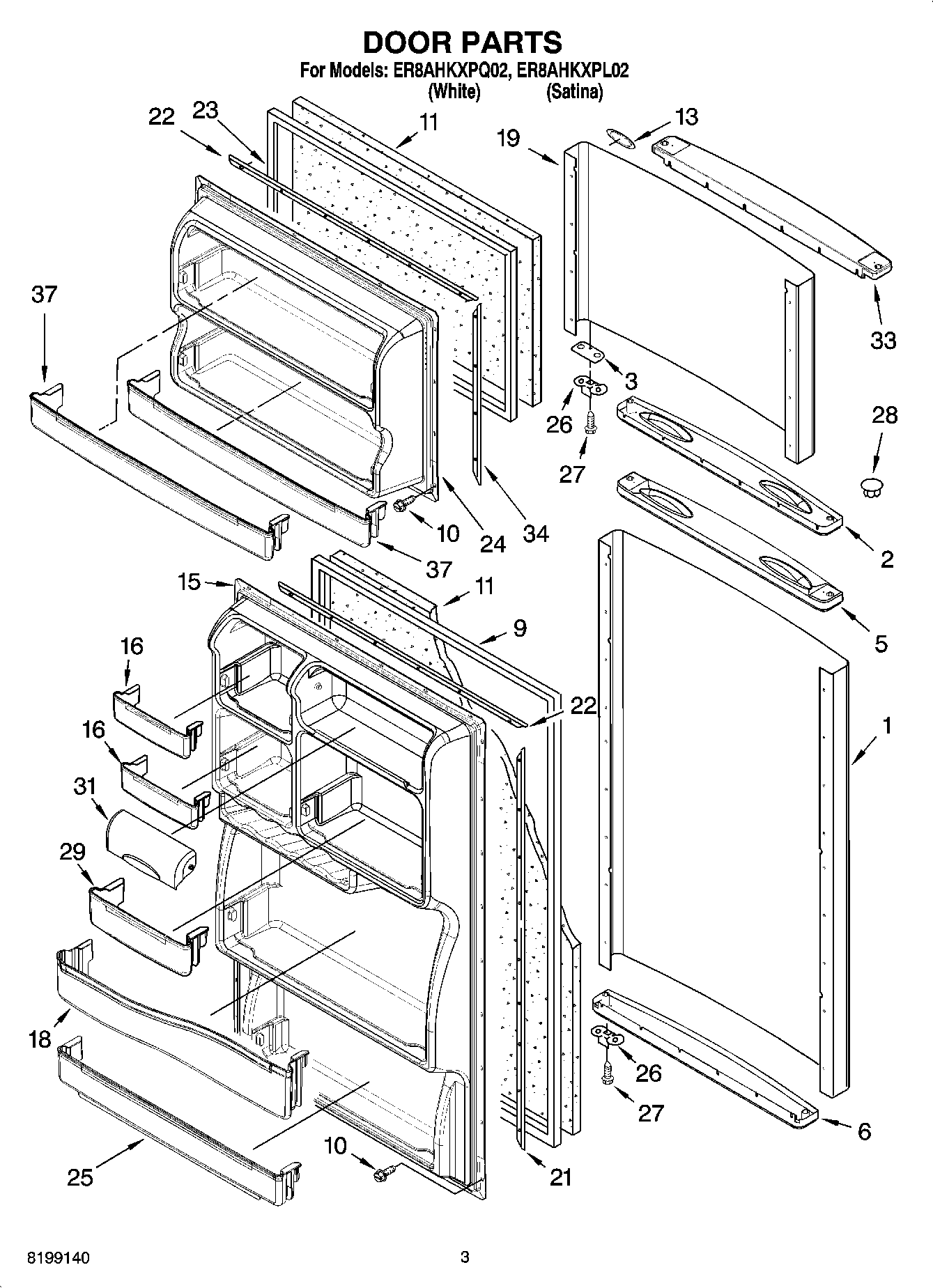

ER8AHKXPL02 02 – DOOR PARTSadmin2025-04-26T11:07:47+00:00ER8AHKXPL02 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (Includes Items 5 & 6) (Also Order Item 11) (White) |
| 1 | Refrigerator Door Panel (Includes Items 5 & 6) (Also Order Item 11) (Satina) |
| 2 | Endcap, Handle (Freezer) |
| 3 | 2258681B Whirlpool Refrigerator Shim |
| 3 | WP2258681W Whirlpool Refrigerator Shim |
| 5 | 2265645W Whirlpool Refrigerator Handle |
| 5 | Endcap, Handle (Refrigerator) |
| 6 | End Cap-Bottom |
| 6 | Endcap, Bottom (White) |
| 9 | WP2319264B Whirlpool Door Gasket |
| 9 | WP2319264T Whirlpool Door Gasket |
| 10 | 2256637 Whirlpool Refrigerator Screw |
| 11 | WPL 876029 |
| 13 | WP2213265 Whirlpool Refrigerator Nameplate |
| 15 | Interior Door Panel (Refrigerator) |
| 16 | Trim, Door Shelf |
| 18 | Trim, Door (Middle) |
| 19 | Freezer Door Panel (Includes Items 2 & 33) (Also order Item 11) (White) |
| 19 | Freezer Door Panel (Includes Items 2 & 33) (Also order Item 11) (Satina) |
| 21 | Retainer, Gasket |
| 22 | Retainer, Gasket |
| 23 | 2188462A Whirlpool Freezer Door Gasket |
| 23 | Door Gasket, Magnetic (Black) |
| 24 | Interior Door Panel (Freezer) |
| 25 | Trim, Door Shelf (Bottom) |
| 26 | W11745278 Whirlpool Bracket |
| 27 | SCREW |
| 28 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 28 | WP2212651 Whirlpool Refrigerator Button Plug |
| 29 | Trim, Door |
| 31 | Compartment Door |
| 33 | 2265644W Whirlpool Refrigerator Door Trim |
| 33 | 2252863 Whirlpool Refrigerator Door Trim |
| 34 | Retainer, Gasket |
| 37 | Trim, Door Shelf |
