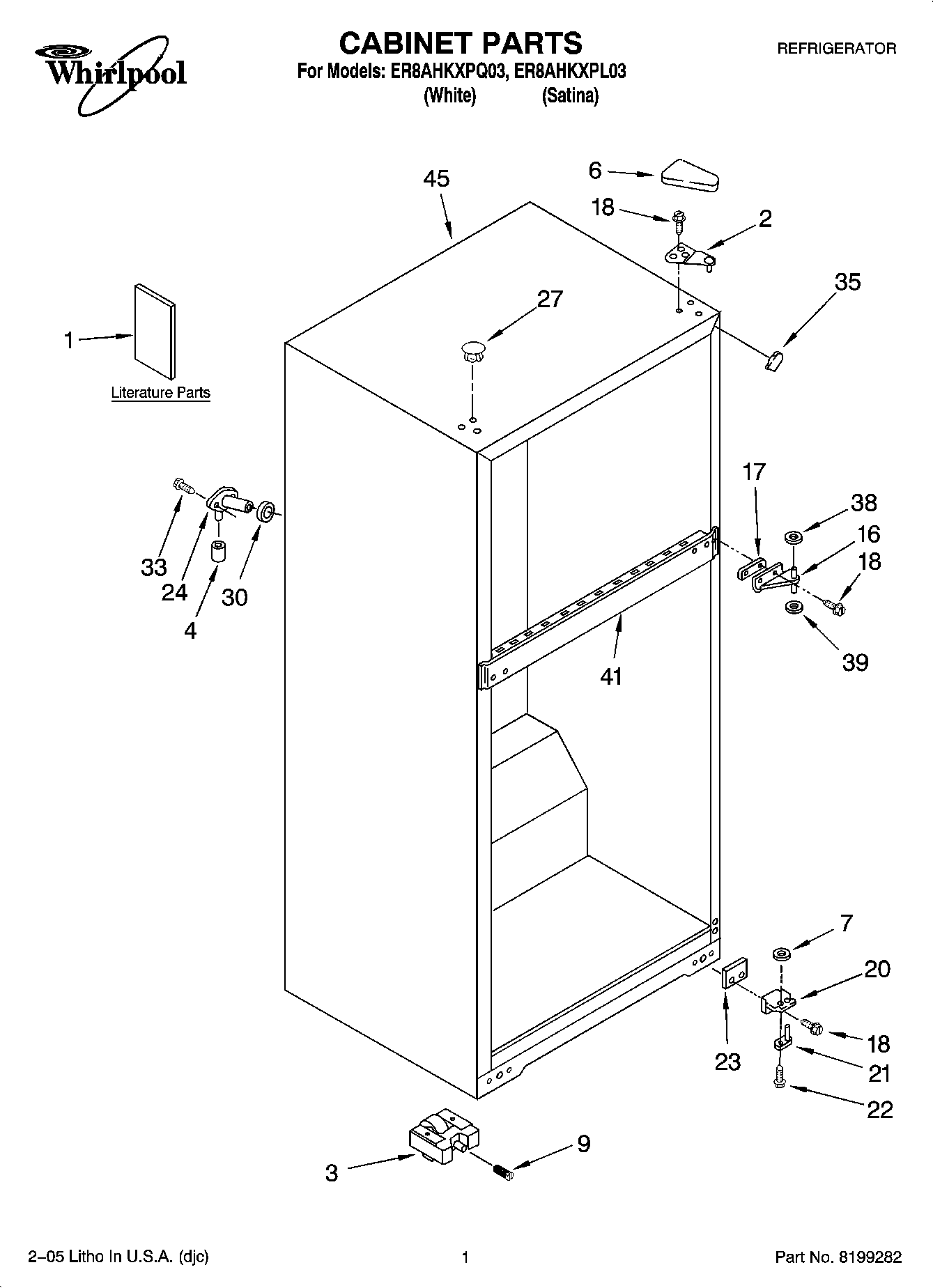

ER8AHKXPQ03 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	English
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP487996 Whirlpool Refrigerator Cap Tube
6	WP2213360 Whirlpool Refrigerator Cover
6	WP2213363 Whirlpool Refrigerator Cover
7	WP488296 Whirlpool Washer Refrigerator
9	2222100 Whirlpool Refrigerator Screw
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
17	2215385 Whirlpool Refrigerator Shim
18	WP489497 Whirlpool Screw
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	WP3428970 Whirlpool Refrigerator Screw
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
27	WP2151652 Whirlpool Refrigerator Button Plug
27	WP2183998 Whirlpool Refrigerator Button Plug
30	WP1106508 Whirlpool Refrigerator Gasket
33	WP488729 Whirlpool Refrigerator Door Screw
35	W10859322 Whirlpool Refrigerator Filler
35	W11500943 Whirlpool Refrigerator Filler
38	WP489467 Whirlpool Hinge Shim
39	WP487802 Whirlpool Refrigerator Washer
41	Rail Center (Not Serviced)
45	Cabinet (Not A Serviceable Part)
