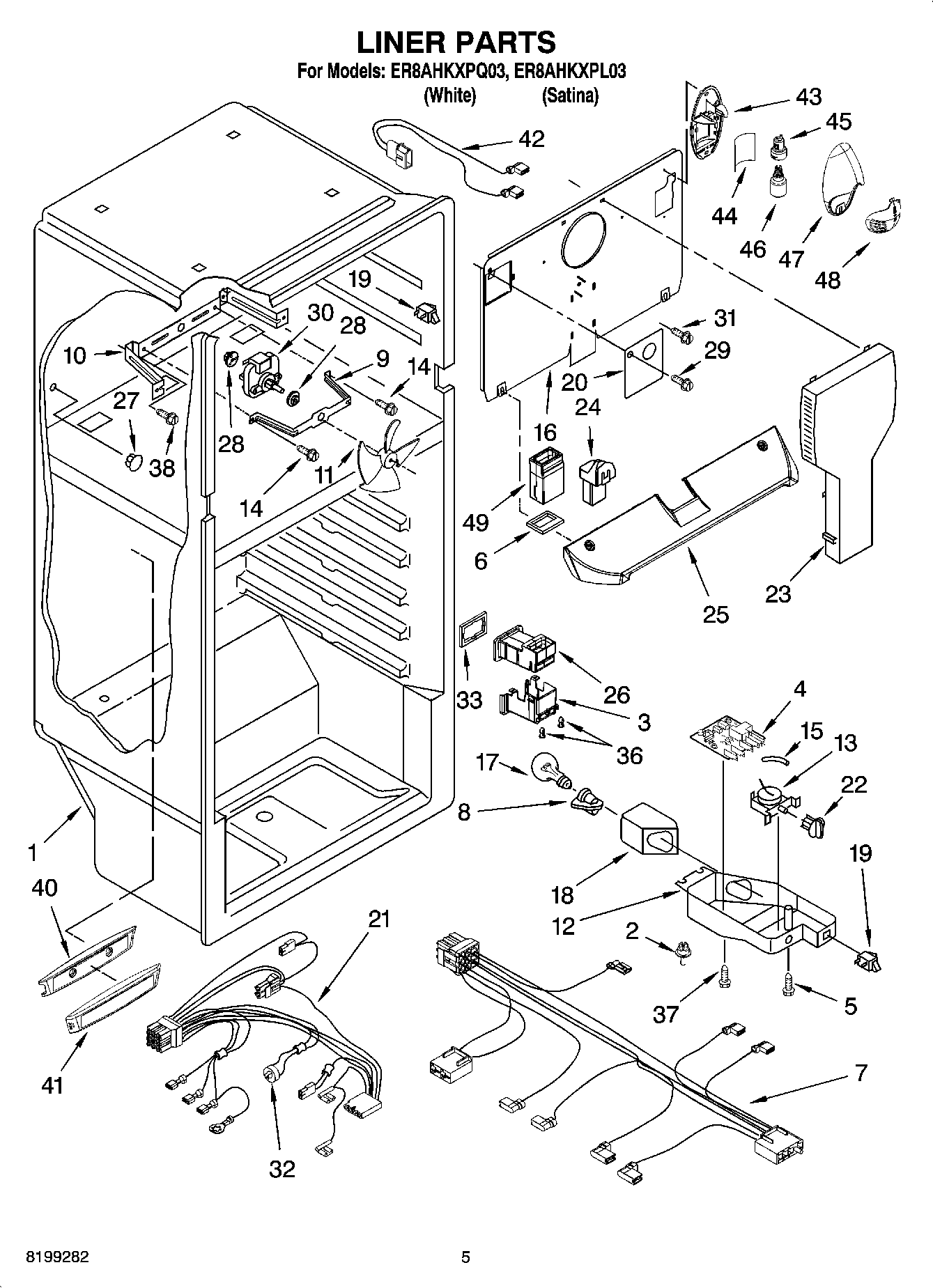

ER8AHKXPQ03 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	2252837 Whirlpool Refrigerator Cover
4	4388931 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	2263075 Whirlpool Refrigerator Gasket
7	2262434 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	WP2169142 Whirlpool Fan Blade
12	2263083 Whirlpool Refrigerator Control Box
13	WPW10511937 Whirlpool Thermostat Control
14	WP489399 Whirlpool Refrigerator Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	2264715 Whirlpool Evaporator Cover
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP2217784 Whirlpool Refrigerator Cover
21	2261881 Whirlpool Refrigerator Wire Harness
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	9790408 Whirlpool Refrigerator Air Tower
24	Hood And Foil Assembly
25	Cover, Air Return
26	Air Diffuser
27	WP941839 Whirlpool Refrigerator Button Plug
28	WP2264462 Whirlpool Refrigerator Grommet
29	WP489478 Whirlpool Refrigerator Screw
30	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
31	WP489474 Whirlpool Refrigerator Screw
32	WP2211224 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
33	Gasket, Body Air Diffuser
36	Rivet
37	WP487353 Whirlpool Refrigerator Screw
38	WP489442 Whirlpool Refrigerator Screw
40	Insulation (4)
41	GRILL
42	2261879 Whirlpool Wire Harness
43	Light Holder
44	Deflector, Light
45	W10545295 Whirlpool Refrigerator Socket
46	Light Bulb
47	Cover, Light Holder
48	Lens, Light
49	2252831 Whirlpool Refrigerator Air Duct
