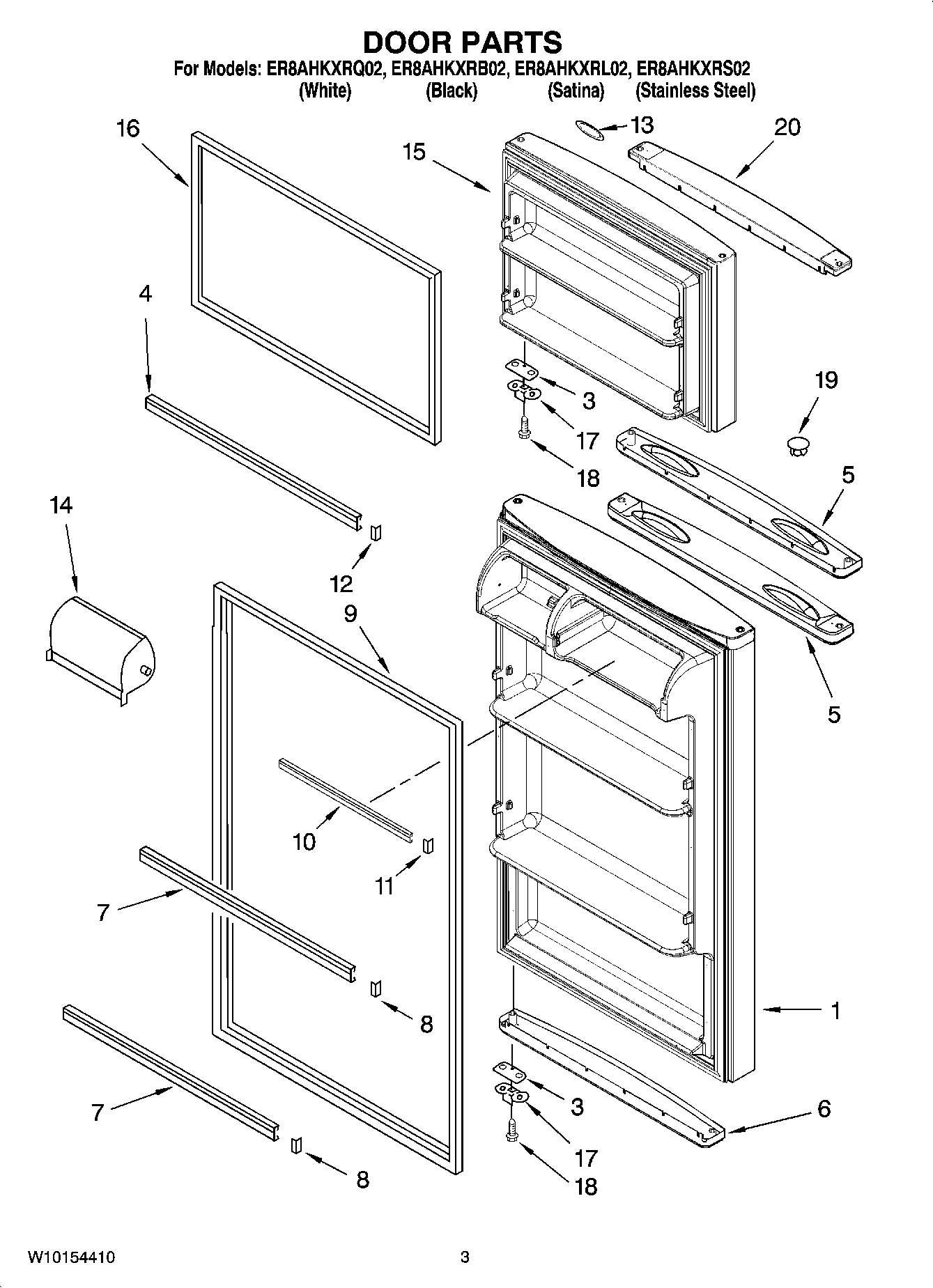

ER8AHKXRB02 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 5,6 & 9) (White)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (SATINA)
1	Refrigerator Door (Includes Illus. 9,18 & 19)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (BLACK)
3	WP2258681W Whirlpool Refrigerator Shim
3	2258681B Whirlpool Refrigerator Shim
4	WP2266727 Whirlpool Refrigerator Door Trim
5	Endcap, Handle (Refrigerator)
5	2265645W Whirlpool Refrigerator Handle
6	Endcap, Bottom (White)
6	End Cap-Bottom
7	WP2266738 Whirlpool Refrigerator Door Trim
8	ENDCAP
9	WP2319264W Whirlpool Refrigerator FIP Gasket
9	WP2319264B Whirlpool Door Gasket
10	W11129820 Whirlpool Refrigerator Door Trim
11	ENDCAP-TRM
12	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13	WP2213265 Whirlpool Refrigerator Nameplate
14	DOOR-COMP
15	FREEZER DOOR (INCLUDES ILLUS. 16) (SATINA)
15	L2265678W Whirlpool Refrigerator Door FIP-WH
15	FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (BLACK)
15	Freezer Door (Includes Illus. 15,20 & 21)
16	GASKET-FIP
16	WP2319263B Whirlpool Refrigerator Black Door Gasket
17	W11745278 Whirlpool Bracket
18	SCREW
19	WP2212651 Whirlpool Refrigerator Button Plug
19	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
20	2265644W Whirlpool Refrigerator Door Trim
20	2252863 Whirlpool Refrigerator Door Trim
