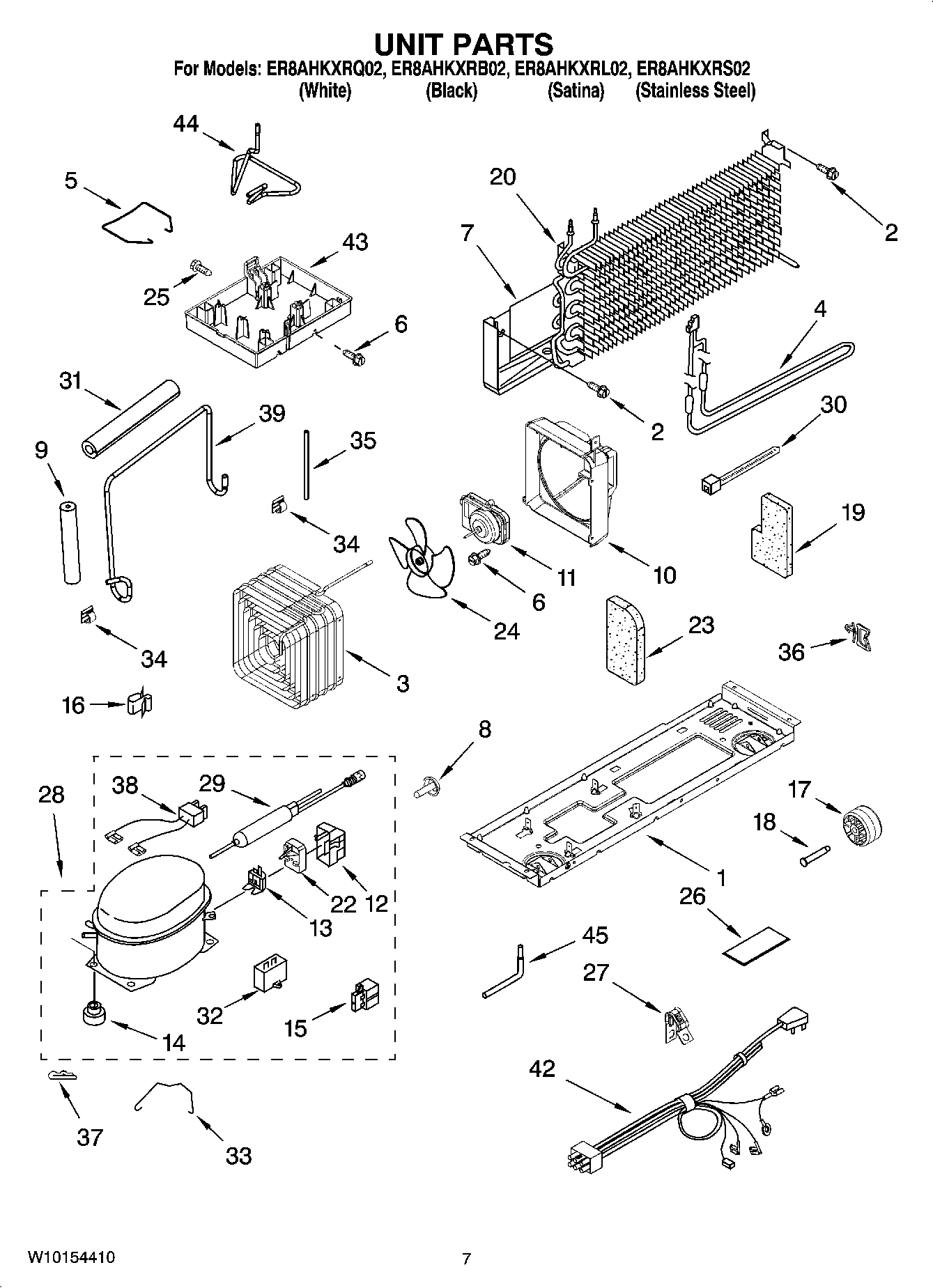

ER8AHKXRB02 04 – UNIT PARTS
Written by
in
ER8AHKXRB02 04 – UNIT PARTS
Products
Position
Product
978030 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
REFRIGERANT CHARGE 3.75 Ozs. (R134A)
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
1
WPW10222450 Whirlpool Refrigerator Support
2
WP489442 Whirlpool Refrigerator Screw
3
WP2264004 Whirlpool Refrigerator Condenser
4
WP2263749 Whirlpool Defrost Heater Assembly
5
2264835 Whirlpool Clip
6
WPW10171469 Whirlpool Refrigerator Screw
7
Heat Shield
8
Snap Rivet
9
SLEEVE
10
WP2263929 Whirlpool Refrigerator Air Baffle
11
W11578915 Whirlpool Condenser Motor
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2214067 Whirlpool Refrigerator Overload Relay
14
WPW10169124 Whirlpool Refrigerator Grommet
14
WP4387558 Whirlpool Refrigerator Compressor Grommet
16
W10812038 Whirlpool Refrigerator Clip
17
WPW10475495 Whirlpool Roller Assembly
18
WP2264756 Whirlpool Refrigerator Rivet
19
8201619 Whirlpool Refrigerator Support Assembly
20
WP2263920 Whirlpool Refrigerator Evaporator
22
WP2225929 Whirlpool Refrigerator Start Device
24
2264129 Whirlpool Refrigerator Fan Blade
25
WP489489 Whirlpool Screw
26
2266360 Whirlpool Shield Assembly
27
549193 Whirlpool Refrigerator Power Clamp
28
Compressor (Includes Items 12,13,14,22,29, 32 & 34) (Also Order 482801 Installation Kit & 876765 Tube Kit)
29
WPW10143759 Whirlpool Dryer Filter
30
WPW10339879 Whirlpool Wire Tie
31
2264838 Whirlpool Refrigerator Sleeve
32
WPW10662129 Whirlpool Refrigerator Run Capacitor
33
2212996 Whirlpool Refrigerator Retainer
34
W11501419 Whirlpool Refrigerator Clip
35
2264278 Whirlpool Refrigerator Extension
36
CLIP, HARNESS
37
Clip, Compressor
38
WP2172890 Whirlpool Refrigerator Wire
39
2264131 Whirlpool Refrigerator Tube Extension
42
Wire Assy. Unit
43
WP2263928 Whirlpool Refrigerator Evaporator Tray
44
2316181 Whirlpool Tube
45
W11676464 Whirlpool Tube
←
