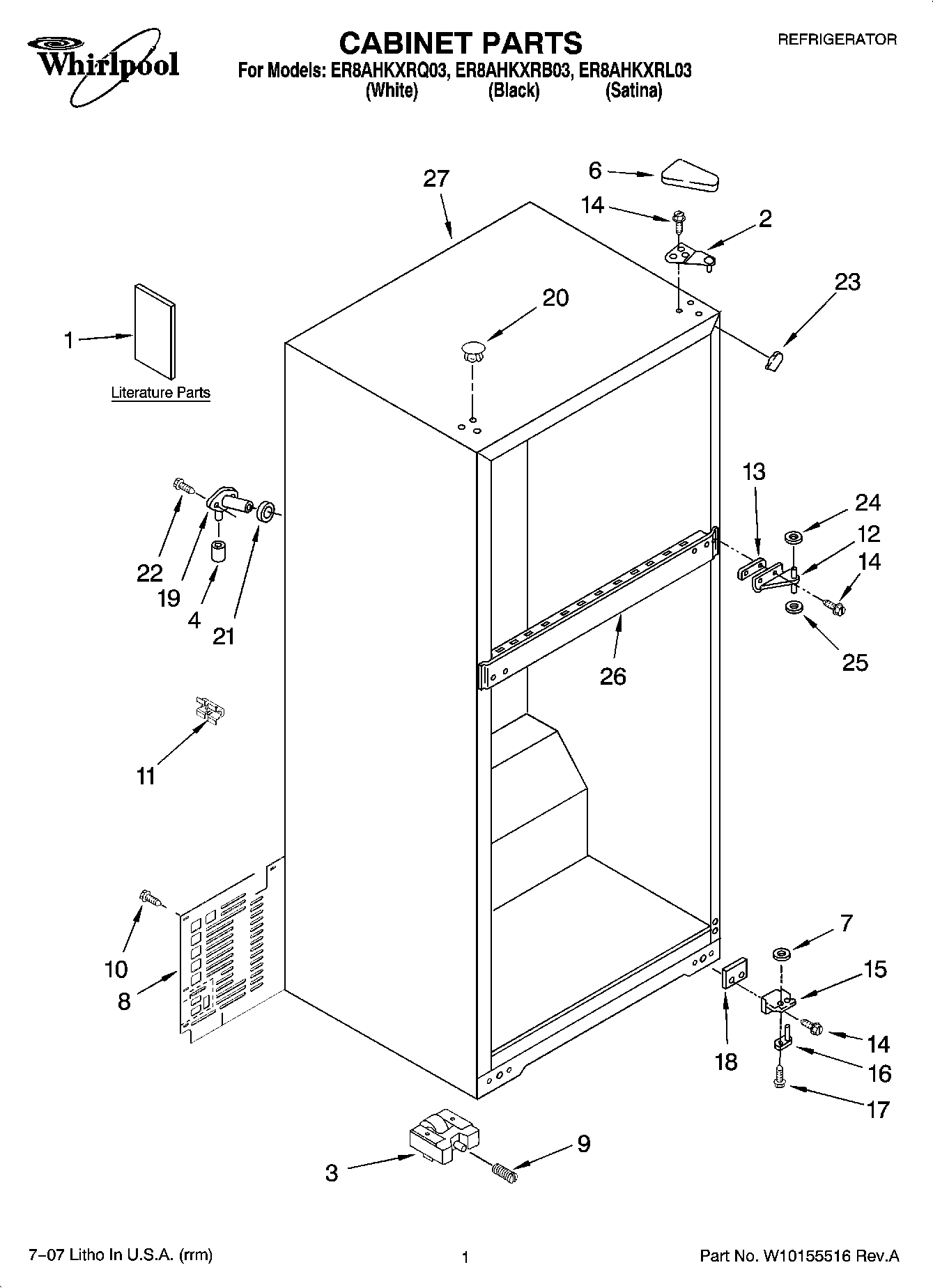

ER8AHKXRB03 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Guide
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP487996 Whirlpool Refrigerator Cap Tube
6	WP2213360 Whirlpool Refrigerator Cover
6	WP2213363 Whirlpool Refrigerator Cover
7	WP488296 Whirlpool Washer Refrigerator
8	WP2264132 Whirlpool Refrigerator Unit Cover
9	2222100 Whirlpool Refrigerator Screw
10	WP489442 Whirlpool Refrigerator Screw
11	2266506 Whirlpool Refrigerator Spacer
12	WP2166037 Whirlpool Refrigerator Door Hinge
13	2215385 Whirlpool Refrigerator Shim
13	2166043 Whirlpool Refrigerator Shim
14	WP489497 Whirlpool Screw
15	WP2325482 Whirlpool Bottom Hinge
16	Hinge-Pin Bott.
17	WP3428970 Whirlpool Refrigerator Screw
18	WP2201567 Whirlpool Hinge Shim
19	WP2196157 Whirlpool Fill Tube
20	WP2151652 Whirlpool Refrigerator Button Plug
20	WP2183998 Whirlpool Refrigerator Button Plug
21	WP1106508 Whirlpool Refrigerator Gasket
22	WP488729 Whirlpool Refrigerator Door Screw
23	W11500943 Whirlpool Refrigerator Filler
23	W10859322 Whirlpool Refrigerator Filler
24	WP489467 Whirlpool Hinge Shim
25	WP487576 Whirlpool Washer
26	Rail, Center (Not Serviced)
27	Cabinet, (Not A Serviceable Part)
