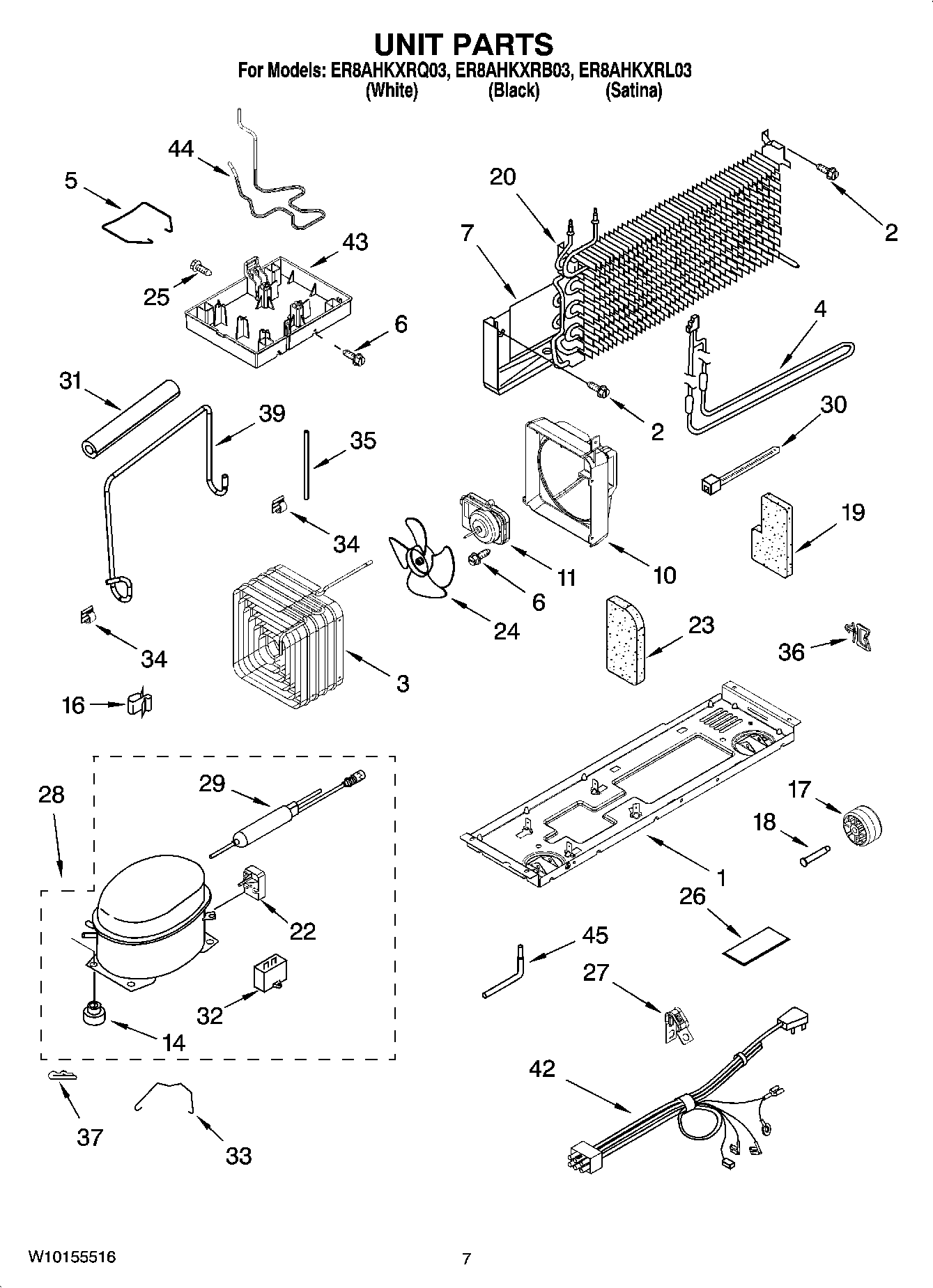

ER8AHKXRB03 04 – UNIT PARTS

Products

Position	Product
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
10	WP2263929 Whirlpool Refrigerator Air Baffle
11	W11578915 Whirlpool Condenser Motor
14	WP2163786 Whirlpool Refrigerator Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
22	WPW10197428 Whirlpool Start Device
24	2264129 Whirlpool Refrigerator Fan Blade
25	WP489489 Whirlpool Screw
26	2266360 Whirlpool Shield Assembly
27	549193 Whirlpool Refrigerator Power Clamp
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	2264838 Whirlpool Refrigerator Sleeve
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Bale Strap
34	W11501419 Whirlpool Refrigerator Clip
35	2264278 Whirlpool Refrigerator Extension
36	CLIP, HARNESS
37	Clip, Compressor
39	W10140199 Whirlpool Extension Tube
42	Wire Assy. Unit
43	WP2263928 Whirlpool Refrigerator Evaporator Tray
44	W10140197 Whirlpool Refrigerator Tube
45	Following Parts Not Illustrated and Optional Parts Not Included
45	VALVE, ACCESS (5/8“)
45	876764 Whirlpool Refrigerator Primary Valve
45	Tube, Process
45	WP978025 Whirlpool Refrigerator Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	VALVE, ACCESS (1/2“)
45	978026 Whirlpool Refrigerator Primary Valve
45	978030 Whirlpool Refrigerator Valve
45	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
