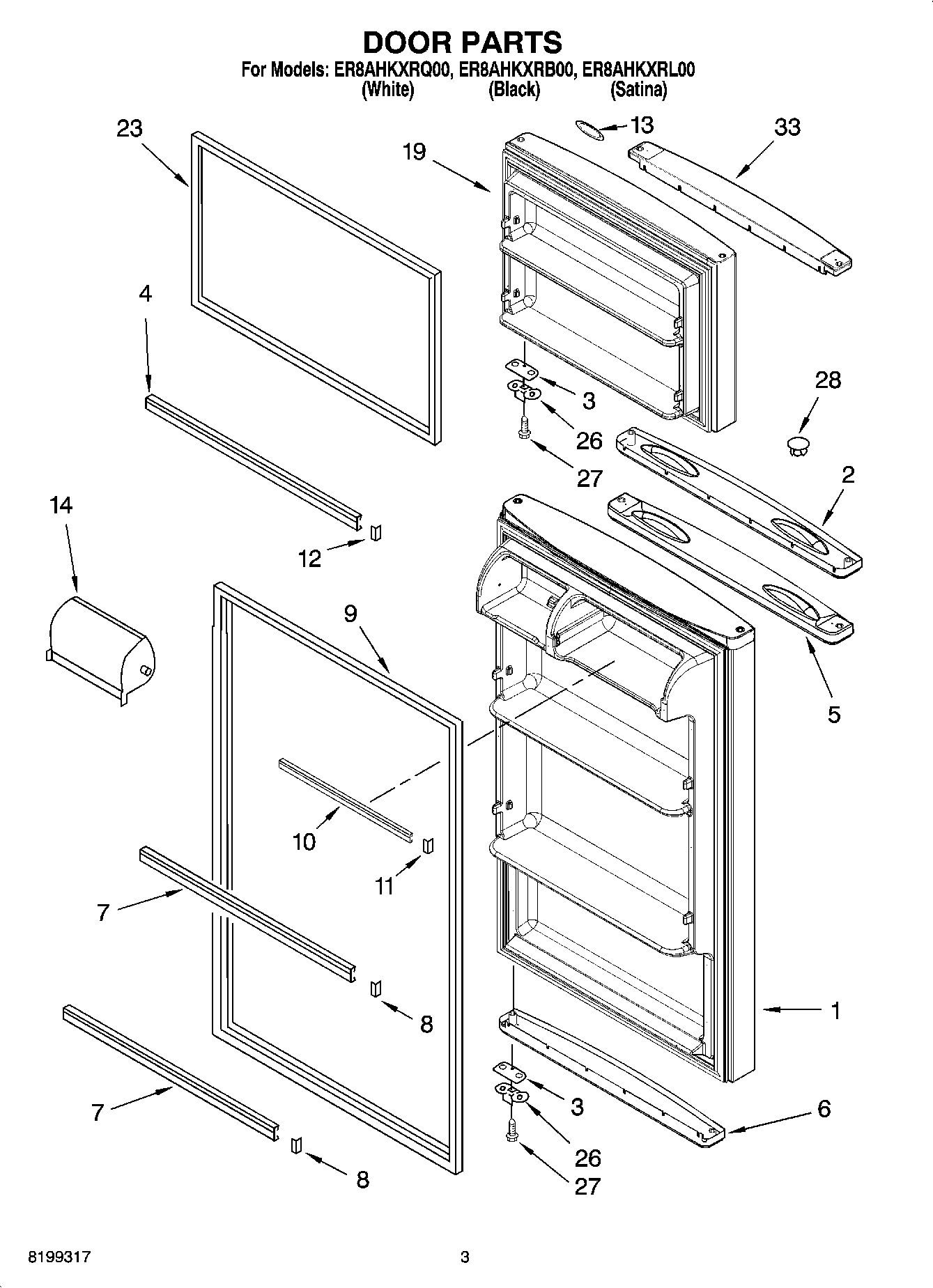

ER8AHKXRQ00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 5,6 & 9) (White)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (SATINA)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9) (BLACK)
2	Endcap, Handle (Freezer)
3	2258681B Whirlpool Refrigerator Shim
3	WP2258681W Whirlpool Refrigerator Shim
4	WP2266727 Whirlpool Refrigerator Door Trim
5	Endcap, Handle (Refrigerator)
5	2265645W Whirlpool Refrigerator Handle
6	Endcap, Bottom (White)
6	End Cap-Bottom
7	WP2266738 Whirlpool Refrigerator Door Trim
8	ENDCAP
9	WP2319264B Whirlpool Door Gasket
9	WP2319264W Whirlpool Refrigerator FIP Gasket
10	W11129820 Whirlpool Refrigerator Door Trim
11	ENDCAP-TRM
12	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
13	WP2213265 Whirlpool Refrigerator Nameplate
14	DOOR-COMP
19	FREEZER DOOR (INCLUDES ILLUS. 16) (SATINA)
19	L2265678W Whirlpool Refrigerator Door FIP-WH
19	FREEZER DOOR (INCLUDES ITEM 14 & MOLDED DOOR HANDLE) (BLACK)
23	GASKET-FIP
23	WP2319263B Whirlpool Refrigerator Black Door Gasket
26	W11745278 Whirlpool Bracket
27	SCREW
28	WP2212651 Whirlpool Refrigerator Button Plug
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
33	2265644W Whirlpool Refrigerator Door Trim
33	2252863 Whirlpool Refrigerator Door Trim
