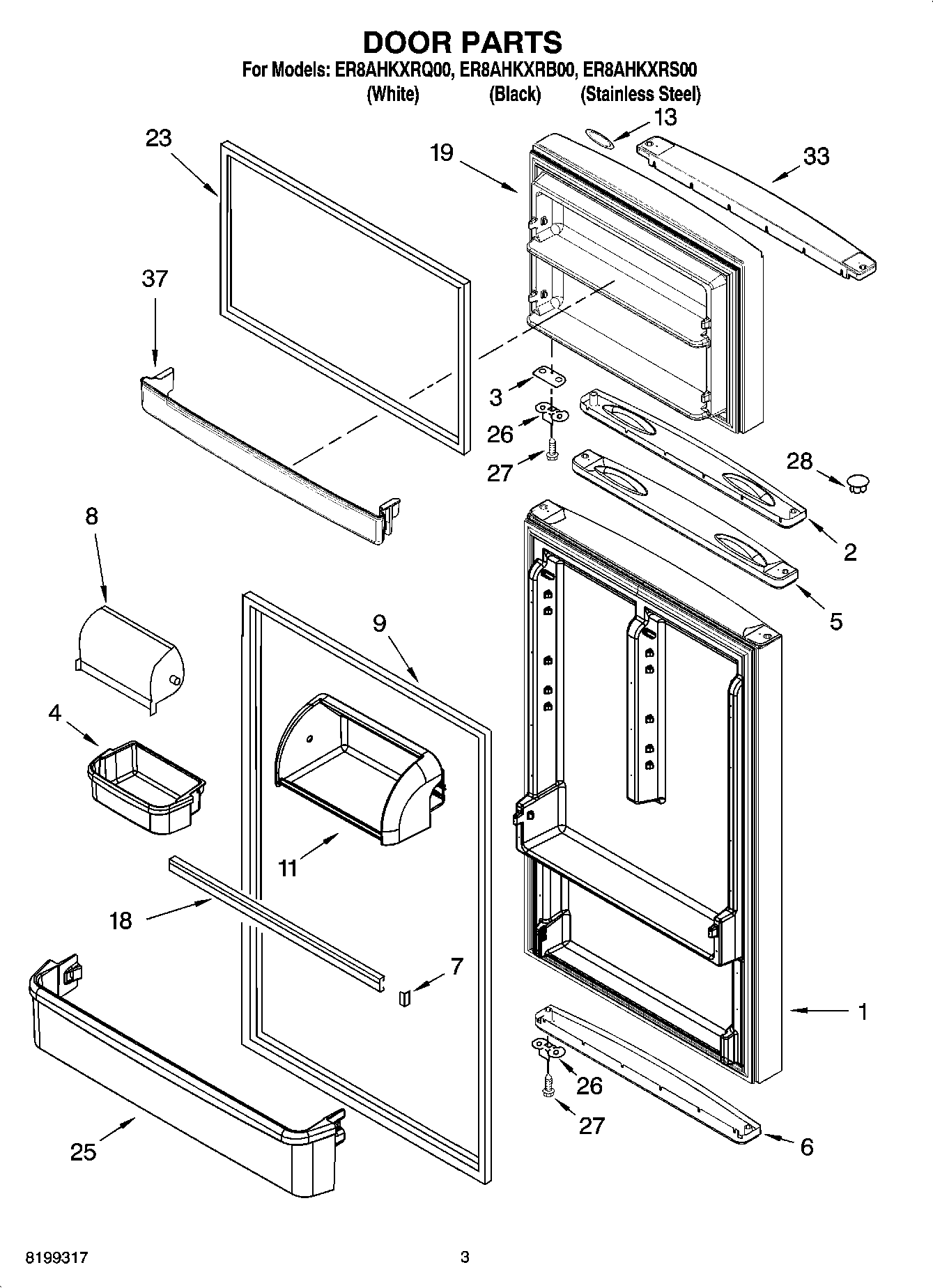

ER8AHKXRS00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Illus. 5,6 & 9) (Stainless Steel)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK)
2	Endcap, Handle (Freezer)
3	WP2258681W Whirlpool Refrigerator Shim
3	2258681B Whirlpool Refrigerator Shim
4	W11396038 Whirlpool Door Shelf Bin
5	2265645W Whirlpool Refrigerator Handle
5	Endcap, Handle (Refrigerator)
6	Endcap, Bottom (White)
6	End Cap-Bottom
7	ENDCAP-TRM
8	Door, Compartment
9	WP2319264B Whirlpool Door Gasket
9	WP2319264W Whirlpool Refrigerator FIP Gasket
11	2264477 Whirlpool Refrigerator Housing Assembly
13	WP2213265 Whirlpool Refrigerator Nameplate
18	Trim, Door
19	FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (BLACK)
19	FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (WHITE)
19	Freezer Door Panel (Includes Illus. 2,23 & 33) (Stainless Steel)
23	WP2319263B Whirlpool Refrigerator Black Door Gasket
23	GASKET-FIP
25	Trim, Door Shelf (Bottom)
26	W11745278 Whirlpool Bracket
27	SCREW
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	WP2212651 Whirlpool Refrigerator Button Plug
33	2265644W Whirlpool Refrigerator Door Trim
33	2252863 Whirlpool Refrigerator Door Trim
37	Trim, Door Shelf (Freezer)
