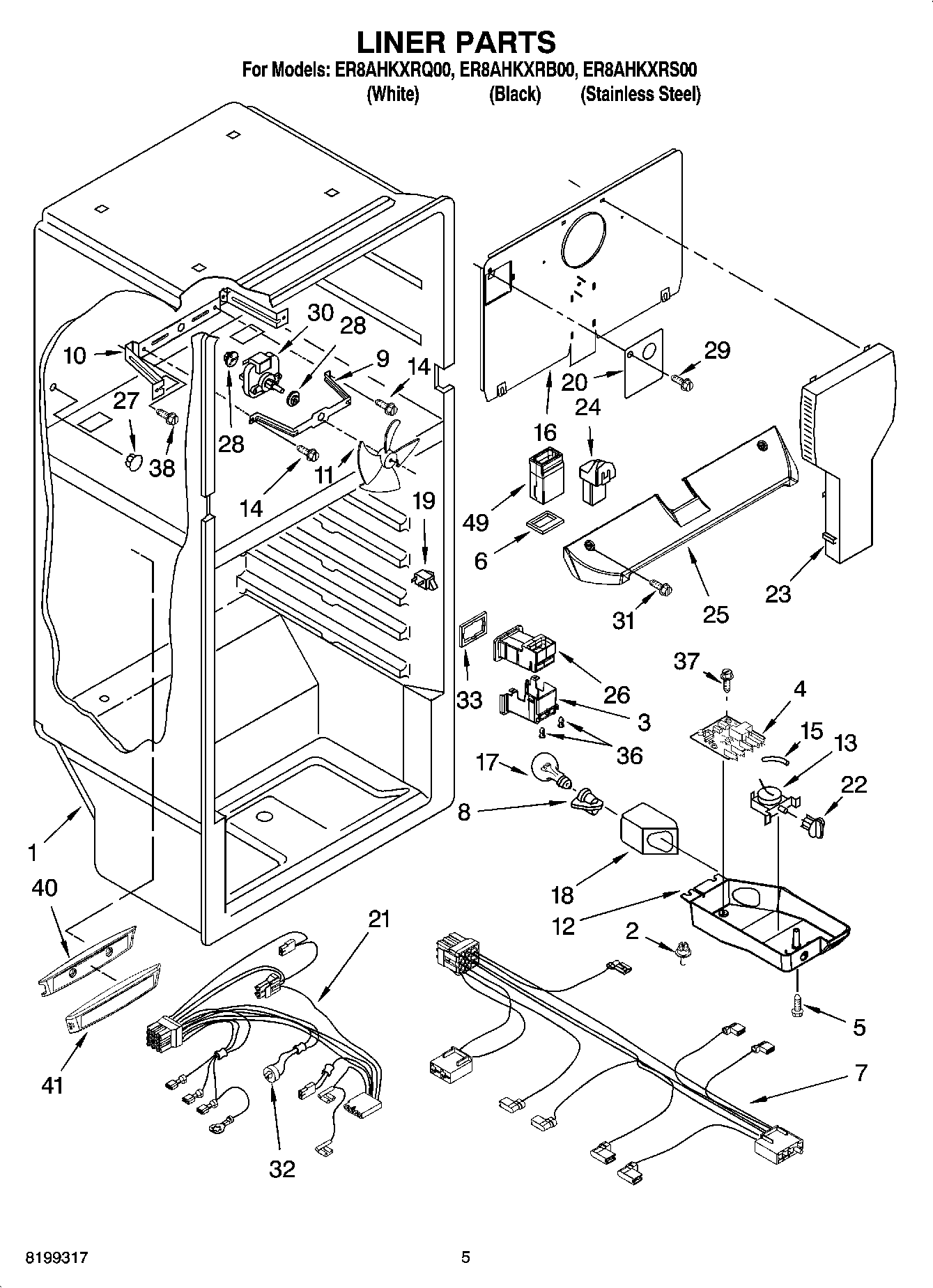

ER8AHKXRS00 03 – LINER PARTS
Written by
in
ER8AHKXRS00 03 – LINER PARTS
Products
Position
Product
1
Liner (Not A Serviceable Part)
2
939962 Whirlpool Refrigerator Rivet
3
2252837 Whirlpool Refrigerator Cover
4
4388931 Whirlpool Defrost Timer
5
WP489174 Whirlpool Refrigerator Screw
6
2263075 Whirlpool Refrigerator Gasket
7
2265572 Whirlpool Refrigerator Wire Harness
8
4387478 Whirlpool Refrigerator Light Socket
9
WPW10180172 Whirlpool Refrigerator Bracket
10
Fan Mounting Bracket
11
WP2169142 Whirlpool Fan Blade
12
Control Box
13
WPW10511937 Whirlpool Thermostat Control
14
WP489399 Whirlpool Refrigerator Screw
15
WP2196003 Whirlpool Refrigerator Bar Riser
16
Cover-Evaporator
17
RANGE ONLY 40W 120V APPL BULB
18
W11034434 Whirlpool Refrigerator Light Lens
19
W11384469 Whirlpool Door Switch
20
WP2217784 Whirlpool Refrigerator Cover
21
2319442 Whirlpool Refrigerator Wire Harness
22
WP2202885 Whirlpool Refrigerator Thermal Knob
23
9790408 Whirlpool Refrigerator Air Tower
24
Hood And Foil Assembly
25
Cover, Air Return
26
Air Diffuser
27
WP941839 Whirlpool Refrigerator Button Plug
28
WP2264462 Whirlpool Refrigerator Grommet
29
WP489478 Whirlpool Refrigerator Screw
30
WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
31
WP489474 Whirlpool Refrigerator Screw
32
WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
33
Gasket, Body Air Diffuser
36
Rivet
37
WP487353 Whirlpool Refrigerator Screw
38
WP489442 Whirlpool Refrigerator Screw
40
Insulation (4)
41
GRILL
49
2252831 Whirlpool Refrigerator Air Duct
←
