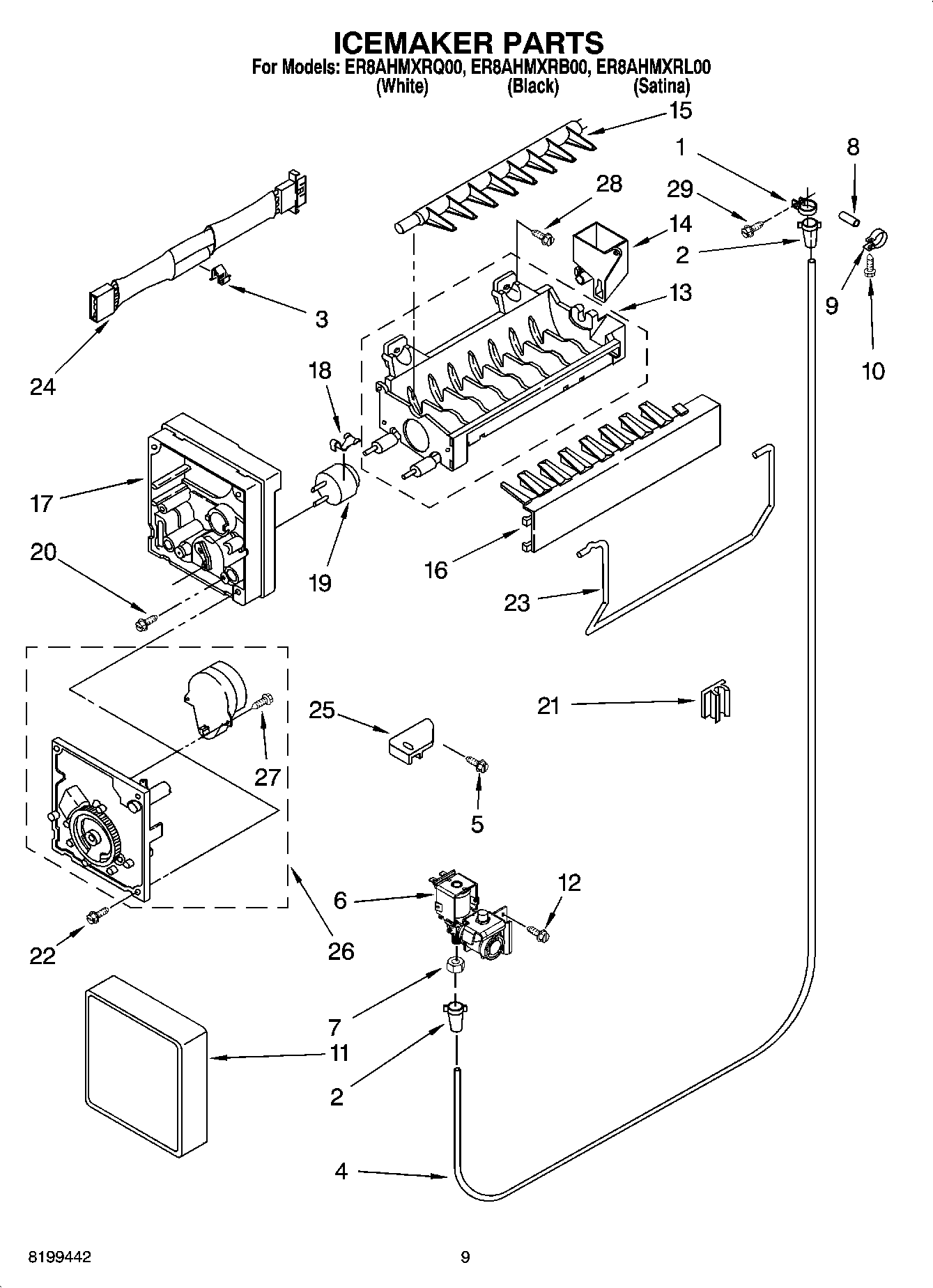

ER8AHMXRB00 05 – ICEMAKER PARTSadmin2025-04-26T11:10:01+00:00ER8AHMXRB00 05 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp24387491 Whirlpool Refrigerator Insert3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5WP489478 Whirlpool Refrigerator Screw6VALVE-INLT7WP627018 Whirlpool Refrigerator Nut8Tube, Water Inlet9WP488366 Whirlpool Refrigerator Clamp10WP488729 Whirlpool Refrigerator Door Screw112174157 Whirlpool Refrigerator Front Cover12WP489442 Whirlpool Refrigerator Screw13WPW10190929 Whirlpool Refrigerator Ice Maker Mold14WP628356 Whirlpool Refrigerator Fill Cup15WP627843 Whirlpool Refrigerator Ejector Arm16WP2182124 Whirlpool Refrigerator Stripper Arm17WP2195914 Whirlpool Refrigerator Ice Maker Housing18WP2315522 Whirlpool Refrigerator Clip19WP627985 Whirlpool Icemaker Cycling Thermostat208533917 Whirlpool Refrigerator Screw21W11501419 Whirlpool Refrigerator Clip22WP681249 Whirlpool Screw Assembly23WP627792 Whirlpool Refrigerator Shut Off Arm24WP2187464 Whirlpool Refrigerator Wire Harness25W11500948 Whirlpool Refrigerator Bracket26W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly27489136 Whirlpool Refrigerator Screw28WP488163 Whirlpool Refrigerator Screw29WP488787 Whirlpool Refrigerator Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly
