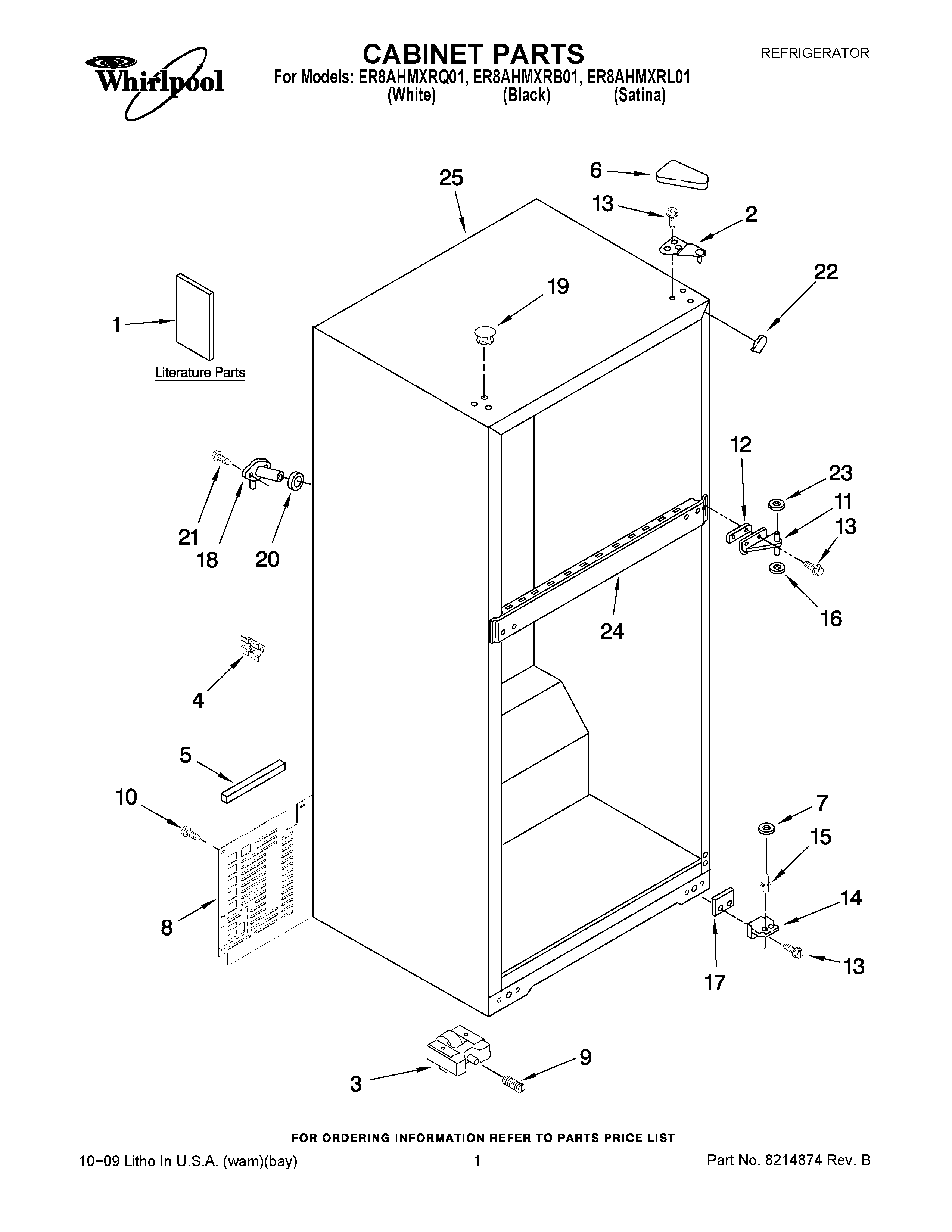

ER8AHMXRB01 01 – CABINET PARTS

ER8AHMXRB01 01 – CABINET PARTS

Written by

in

ER8AHMXRB01 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Service & Wiring Sheet
1Use & Care Guide
1Modular Icemaker Service Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
32324094 Whirlpool Refrigerator Cabinet Roller
42266506 Whirlpool Refrigerator Spacer
5Foam Block
6WP2213360 Whirlpool Refrigerator Cover
6WP2213363 Whirlpool Refrigerator Cover
7WP488296 Whirlpool Washer Refrigerator
8WP2264132 Whirlpool Refrigerator Unit Cover
92222100 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
11WP2166037 Whirlpool Refrigerator Door Hinge
122166043 Whirlpool Refrigerator Shim
122215385 Whirlpool Refrigerator Shim
13WP489497 Whirlpool Screw
14WP2325482 Whirlpool Bottom Hinge
15WP2325483 Whirlpool Hinge Pin
16WP487802 Whirlpool Refrigerator Washer
17WP2201567 Whirlpool Hinge Shim
18WP2196157 Whirlpool Fill Tube
19WP2151652 Whirlpool Refrigerator Button Plug
19WP2183998 Whirlpool Refrigerator Button Plug
20WP1106508 Whirlpool Refrigerator Gasket
21WP488729 Whirlpool Refrigerator Door Screw
22W11500943 Whirlpool Refrigerator Filler
22W10859322 Whirlpool Refrigerator Filler
23WP489467 Whirlpool Hinge Shim
25CABINET (NOT A SERVICEABLE PART)
