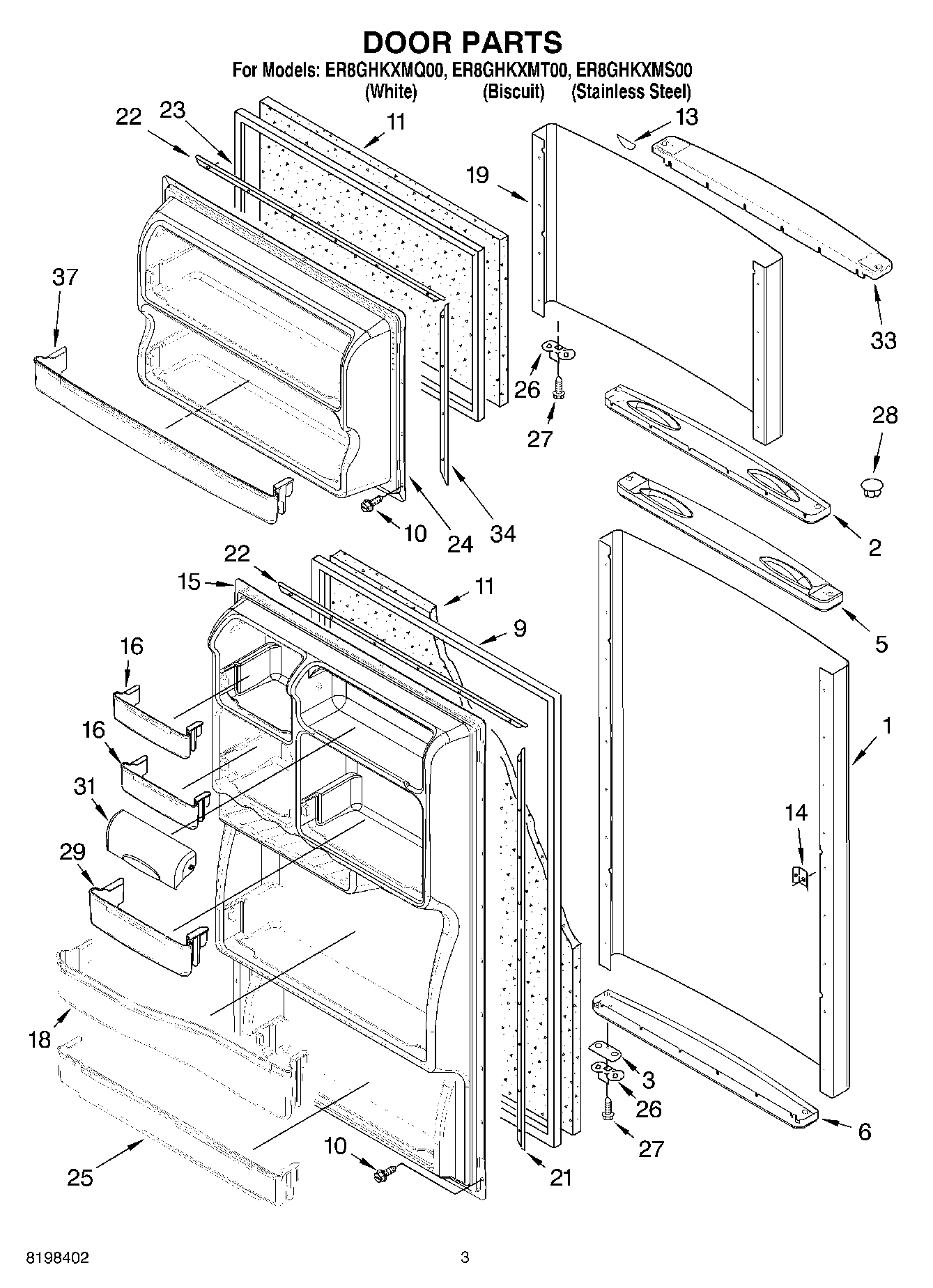

ER8GHKXMQ00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Stainless Steel) (Includes Item 5 & 6) (Also Order Item 11)
1	Refrigerator Door Panel (White) (Includes Items 5 & 6) (Also Order Item 11)
1	Refrigerator Door Panel (Biscuit) (Includes Item 5 & 6) (Also Order Item 11)
2	Handle (FC Door) (Biscuit)
2	Endcap, Handle (Freezer)
3	2258681B Whirlpool Refrigerator Shim
3	WP2258681W Whirlpool Refrigerator Shim
5	Endcap, Handle (Refrigerator)
5	2265645W Whirlpool Refrigerator Handle
5	Handle (RC Door) (Biscuit)
6	End Cap-Bottom
6	Endcap, Bottom (White)
6	Endcap, Bottom (Biscuit)
9	WP2319264T Whirlpool Door Gasket
9	WP2319264B Whirlpool Door Gasket
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
13	WP2213265 Whirlpool Refrigerator Nameplate
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
16	Trim, Door Shelf
18	Trim, Door (Middle)
19	Freezer Door Panel (Also Order Item 11) (Biscuit)
19	Freezer Door Panel (Also Order Item 11) (Stainless Steel)
19	Freezer Door Panel (Also Order Item 11) (White)
21	Retainer, Gasket
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
23	Door Gasket, M
24	Interior Door Panel (Freezer)
25	Trim, Door Shelf (Bottom)
26	W11745278 Whirlpool Bracket
27	SCREW
28	WP2212651 Whirlpool Refrigerator Button Plug
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	WP2212649 Whirlpool Refrigerator Button Plug
29	Trim, Door
31	Compartment Door
33	WPL 2252862
33	2252863 Whirlpool Refrigerator Door Trim
33	2265644W Whirlpool Refrigerator Door Trim
34	Retainer, Gasket
37	Trim, Door Shelf
