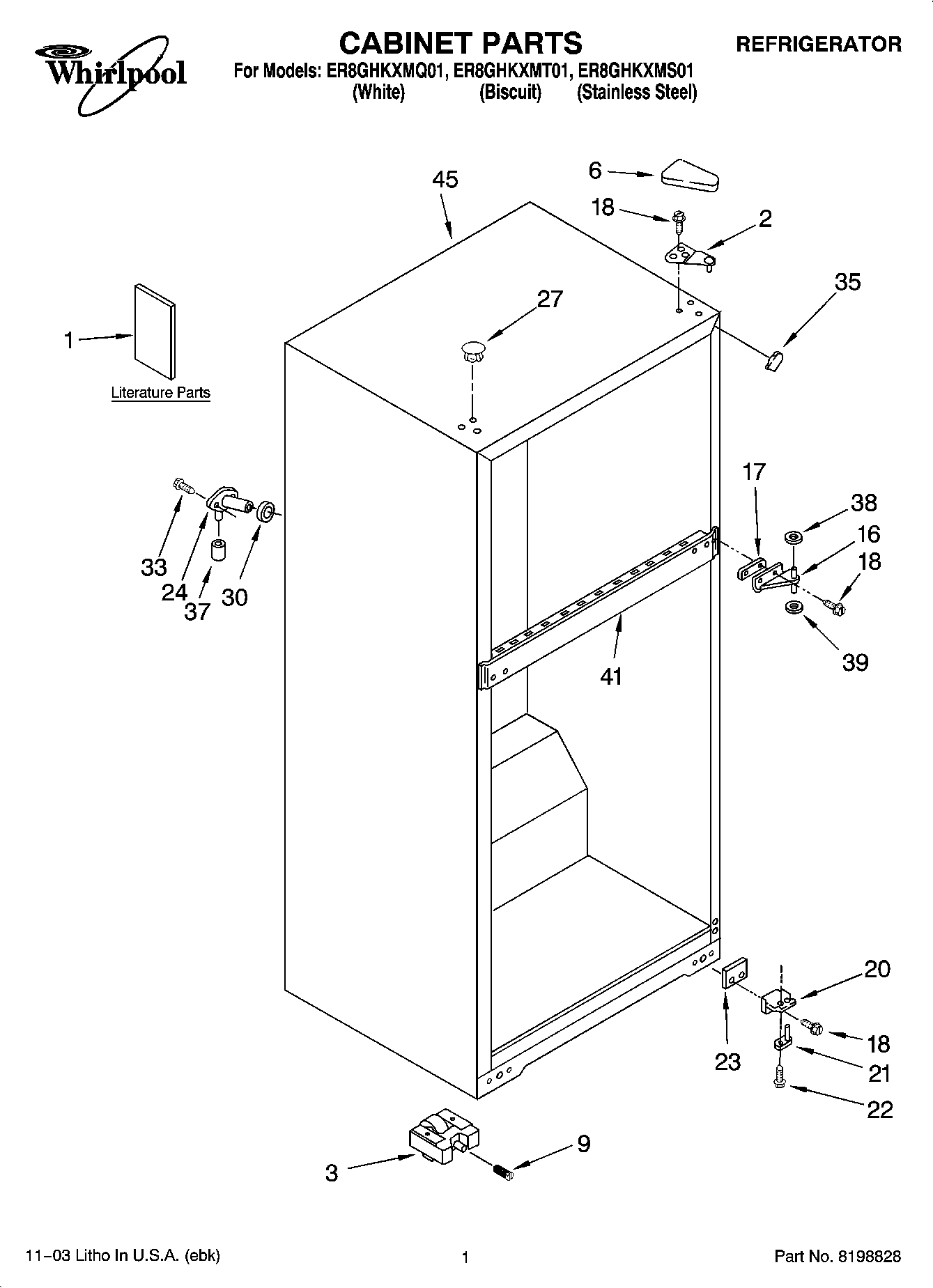

ER8GHKXMS01 01 – CABINET PARTSadmin2025-04-26T11:08:56+00:00ER8GHKXMS01 01 – CABINET PARTS ProductsPositionProduct1LITERATURE PARTS (Service & Wiring Sheet)1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS1Literature Parts (English)1Literature Parts (Do-It-Yourself Manual Ref./Frz.)1Literature Parts (Use & Care Guide Energy Guide)2WP2261963 Whirlpool Refrigerator Door Hinge32324094 Whirlpool Refrigerator Cabinet Roller6WP2213363 Whirlpool Refrigerator Cover6WP2213360 Whirlpool Refrigerator Cover62213364 Whirlpool Refrigerator Cover92222100 Whirlpool Refrigerator Screw16WP2166037 Whirlpool Refrigerator Door Hinge172166043 Whirlpool Refrigerator Shim18WP489497 Whirlpool Screw20WP2325482 Whirlpool Bottom Hinge21Hinge-Pin Bott.22WP3428970 Whirlpool Refrigerator Screw23WP2201567 Whirlpool Hinge Shim24WP2196157 Whirlpool Fill Tube27Hole Plug (6) (Biscuit)27WP2151652 Whirlpool Refrigerator Button Plug27WP2183998 Whirlpool Refrigerator Button Plug30WP1106508 Whirlpool Refrigerator Gasket33WP488729 Whirlpool Refrigerator Door Screw352202282 Whirlpool Refrigerator Filler35W10859322 Whirlpool Refrigerator Filler35W11500943 Whirlpool Refrigerator Filler37WP487996 Whirlpool Refrigerator Cap Tube38WP489467 Whirlpool Hinge Shim39WP487802 Whirlpool Refrigerator Washer41Rail Center (Not Serviced)45Cabinet (Not A Serviceable Part)
