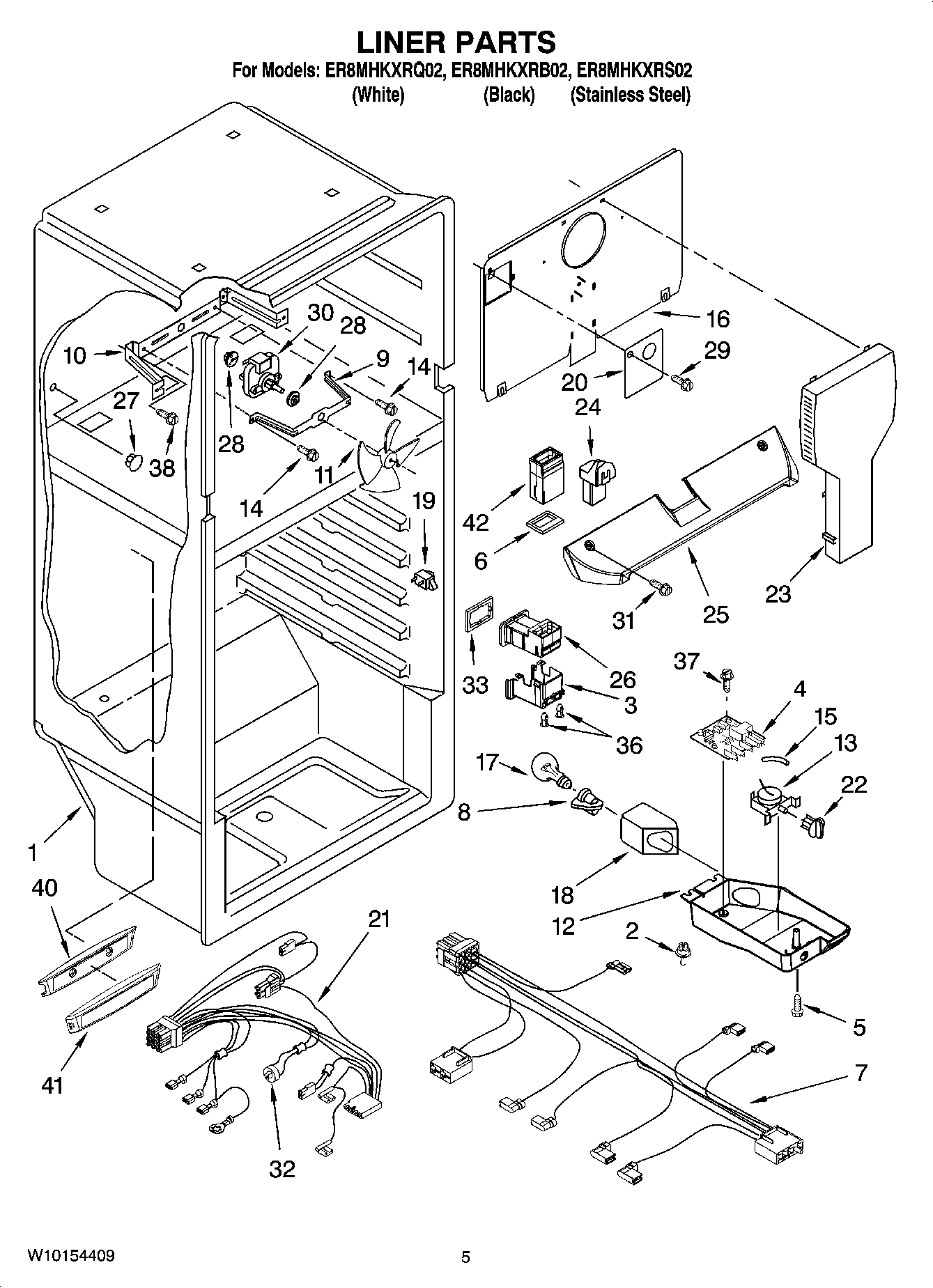

ER8MHKXRB02 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2939962 Whirlpool Refrigerator Rivet
32252837 Whirlpool Refrigerator Cover
44388931 Whirlpool Defrost Timer
5WP489174 Whirlpool Refrigerator Screw
62263075 Whirlpool Refrigerator Gasket
72265572 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WPW10180172 Whirlpool Refrigerator Bracket
10Fan Mounting Bracket
11WP2169142 Whirlpool Fan Blade
12Control Box
13WPW10511937 Whirlpool Thermostat Control
14WP489399 Whirlpool Refrigerator Screw
15WP2196003 Whirlpool Refrigerator Bar Riser
16Cover-Evaporator
17W11679940 Whirlpool Refrigerator Light Bulb Assembly
18W11034434 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20WP2217784 Whirlpool Refrigerator Cover
212319442 Whirlpool Refrigerator Wire Harness
22WP2202885 Whirlpool Refrigerator Thermal Knob
239790408 Whirlpool Refrigerator Air Tower
24Hood And Foil Assembly
25Cover, Air Return
26AIR DUCT ASSEMBLY
27WP941839 Whirlpool Refrigerator Button Plug
28WP2264462 Whirlpool Refrigerator Grommet
29WP489478 Whirlpool Refrigerator Screw
30WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
31WP489474 Whirlpool Refrigerator Screw
32WPW10225581 Whirlpool Refrigerator Defrost Thermostat
33Gasket, Body Air Diffuser
36Rivet
37WP487353 Whirlpool Refrigerator Screw
38WP489442 Whirlpool Refrigerator Screw
40Insulation (4)
41GRILL
422252831 Whirlpool Refrigerator Air Duct
