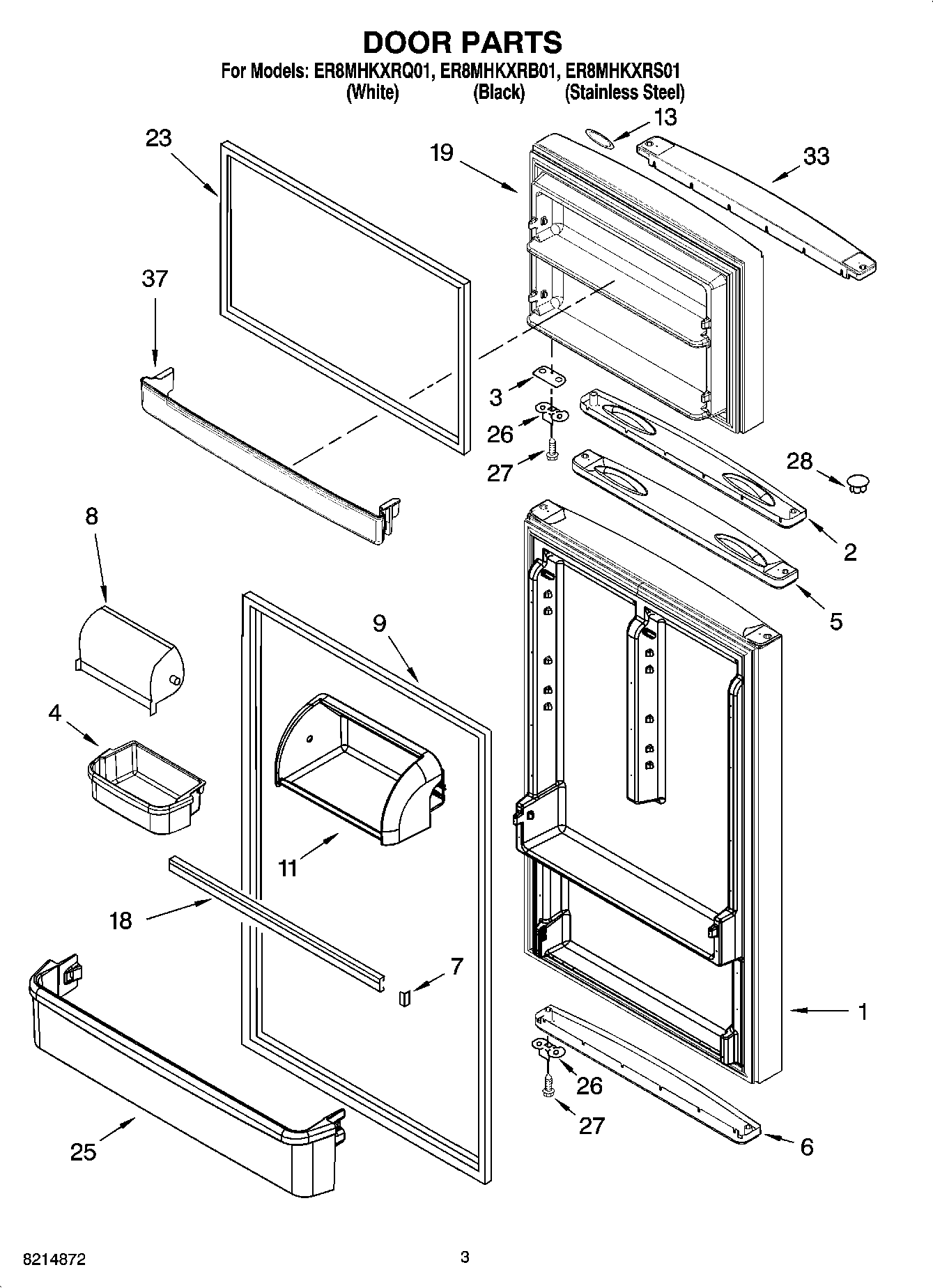

ER8MHKXRS01 02 – DOOR PARTSadmin2025-04-26T11:10:59+00:00ER8MHKXRS01 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK) |
| 1 | Refrigerator Door Panel (Includes Illus. 5,6 & 9) (White) |
| 1 | Refrigerator Door Panel (Includes Illus. 5,6 & 9) (Stainless Steel) |
| 2 | Endcap, Handle (Freezer) |
| 2 | 2265645W Whirlpool Refrigerator Handle |
| 3 | WP2258681W Whirlpool Refrigerator Shim |
| 3 | 2258681B Whirlpool Refrigerator Shim |
| 4 | W11396038 Whirlpool Door Shelf Bin |
| 5 | Endcap, Handle (Refrigerator) |
| 6 | End Cap-Bottom |
| 6 | Endcap, Bottom (White) |
| 7 | ENDCAP-TRM |
| 8 | Door, Compartment |
| 9 | WP2319264B Whirlpool Door Gasket |
| 9 | WP2319264T Whirlpool Door Gasket |
| 11 | 2264477 Whirlpool Refrigerator Housing Assembly |
| 13 | WP2213265 Whirlpool Refrigerator Nameplate |
| 18 | Trim, Door |
| 19 | Freezer Door Panel (Includes Illus. 2,23 & 33) (Stainless Steel) |
| 19 | Freezer Door Panel (Includes Illus. 2,23 & 33) (White) |
| 19 | FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (BLACK) |
| 23 | WP2319263B Whirlpool Refrigerator Black Door Gasket |
| 23 | WP2319263T Whirlpool Refrigerator FIP Gasket |
| 25 | Trim, Door Shelf |
| 26 | W11745278 Whirlpool Bracket |
| 27 | SCREW |
| 28 | WP2212651 Whirlpool Refrigerator Button Plug |
| 28 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 33 | 2252863 Whirlpool Refrigerator Door Trim |
| 33 | 2265644W Whirlpool Refrigerator Door Trim |
| 37 | Trim, Door Shelf (Freezer) |
