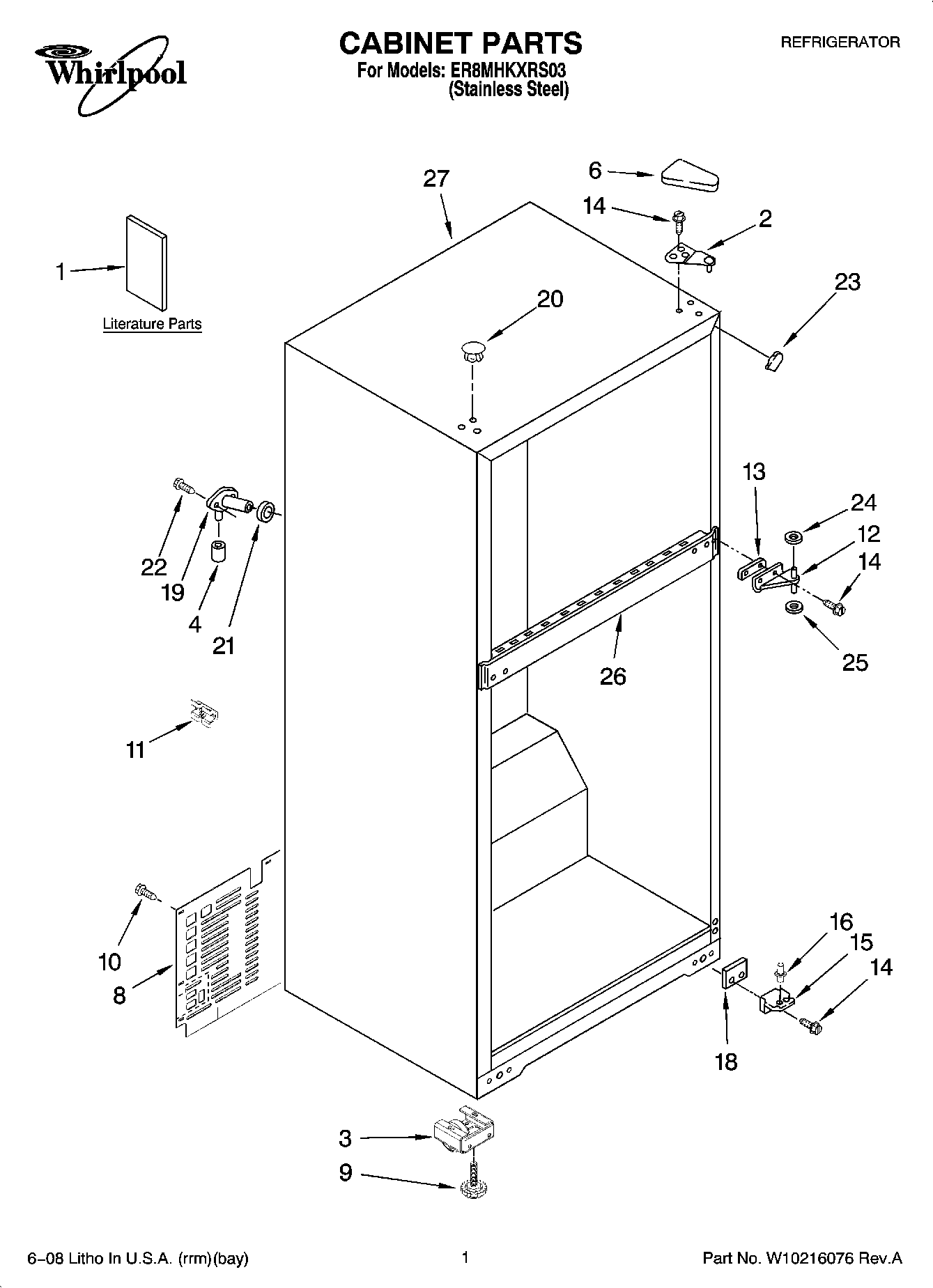

ER8MHKXRS03 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WPW10142530 Whirlpool Refrigerator Cabinet Roller
4WP487996 Whirlpool Refrigerator Cap Tube
6WP2213363 Whirlpool Refrigerator Cover
8WP2264132 Whirlpool Refrigerator Unit Cover
9WPW10133299 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
112266506 Whirlpool Refrigerator Spacer
12WP2166037 Whirlpool Refrigerator Door Hinge
132215385 Whirlpool Refrigerator Shim
14WP489497 Whirlpool Screw
15WP2325482 Whirlpool Bottom Hinge
16WP2325483 Whirlpool Hinge Pin
18WP2201567 Whirlpool Hinge Shim
19WP2196157 Whirlpool Fill Tube
20WP2183998 Whirlpool Refrigerator Button Plug
21WP1106508 Whirlpool Refrigerator Gasket
22WP488729 Whirlpool Refrigerator Door Screw
23W11500943 Whirlpool Refrigerator Filler
24WP489467 Whirlpool Hinge Shim
25WP487576 Whirlpool Washer
26Rail, Center (Not Serviced)
27Cabinet, (Not A Serviceable Part)
