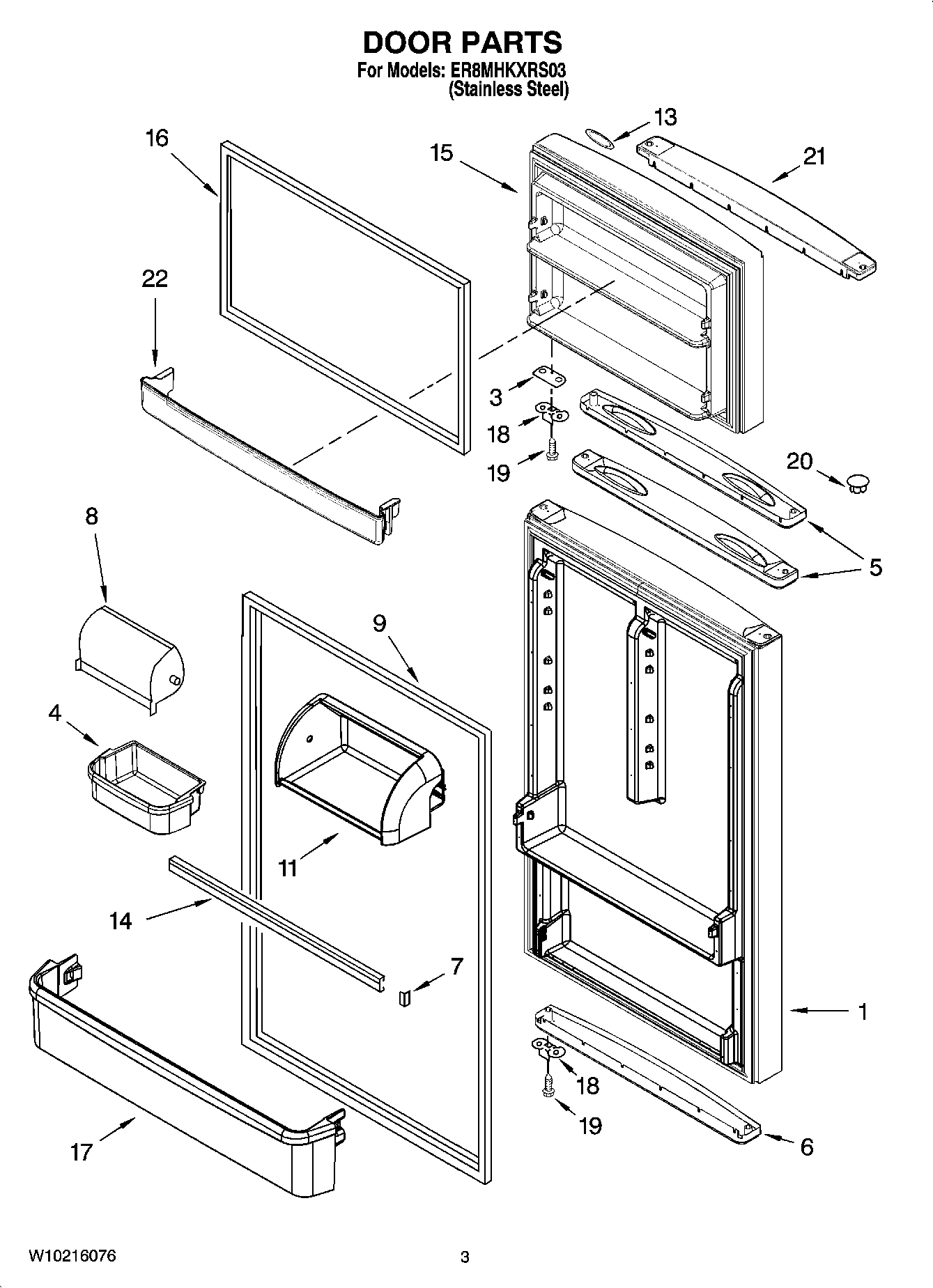

ER8MHKXRS03 02 – DOOR PARTS

ER8MHKXRS03 02 – DOOR PARTS

Written by

in

ER8MHKXRS03 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (STAINLESS)
32258681B Whirlpool Refrigerator Shim
4W11396038 Whirlpool Door Shelf Bin
5Endcap, Handle (Refrigerator)
6End Cap-Bottom
7ENDCAP-TRM
8Door, Compartment
9WP2319264B Whirlpool Door Gasket
112264477 Whirlpool Refrigerator Housing Assembly
13WP2213265 Whirlpool Refrigerator Nameplate
14TRIM, RC DOOR
15FREEZER DOOR (INCLUDES ILLUS. 16 & MOLDED DOOR HANDLE) (STAINLESS)
16WP2319263B Whirlpool Refrigerator Black Door Gasket
17Trim, Door Shelf
18W11745278 Whirlpool Bracket
19SCREW
20WP2212651 Whirlpool Refrigerator Button Plug
212252863 Whirlpool Refrigerator Door Trim
22Trim, Door Shelf (Freezer)
