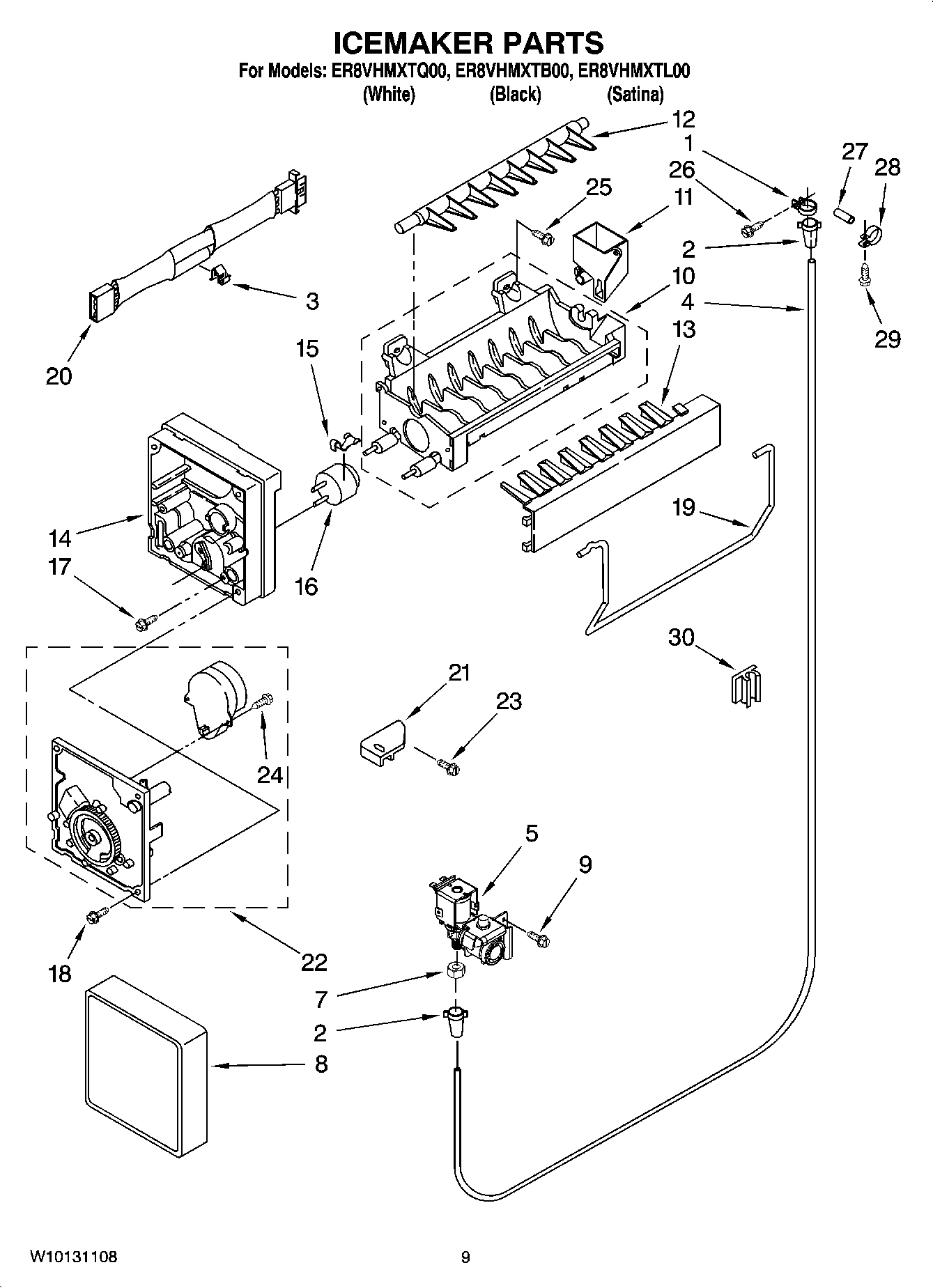

ER8VHMXTB00 05 – ICEMAKER PARTSadmin2025-04-26T11:09:32+00:00ER8VHMXTB00 05 – ICEMAKER PARTS ProductsPositionProduct1WP488878 Whirlpool Refrigerator Tube Clamp24387491 Whirlpool Refrigerator Insert3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5VALVE-INLT7WP627018 Whirlpool Refrigerator Nut82174157 Whirlpool Refrigerator Front Cover10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11W10122561 Whirlpool Refrigerator Cup Fill12WP627843 Whirlpool Refrigerator Ejector Arm13WP2182124 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP627985 Whirlpool Icemaker Cycling Thermostat178533917 Whirlpool Refrigerator Screw18WP681249 Whirlpool Screw Assembly19WP627792 Whirlpool Refrigerator Shut Off Arm20WP2187464 Whirlpool Refrigerator Wire Harness21W11500948 Whirlpool Refrigerator Bracket22W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly23WP489478 Whirlpool Refrigerator Screw24489136 Whirlpool Refrigerator Screw25WP488163 Whirlpool Refrigerator Screw26WP489442 Whirlpool Refrigerator Screw27Tube, Water Inlet28WP488366 Whirlpool Refrigerator Clamp29WP488729 Whirlpool Refrigerator Door Screw30W11501419 Whirlpool Refrigerator Clip1004317943 Whirlpool Refrigerator Ice Maker Assembly
