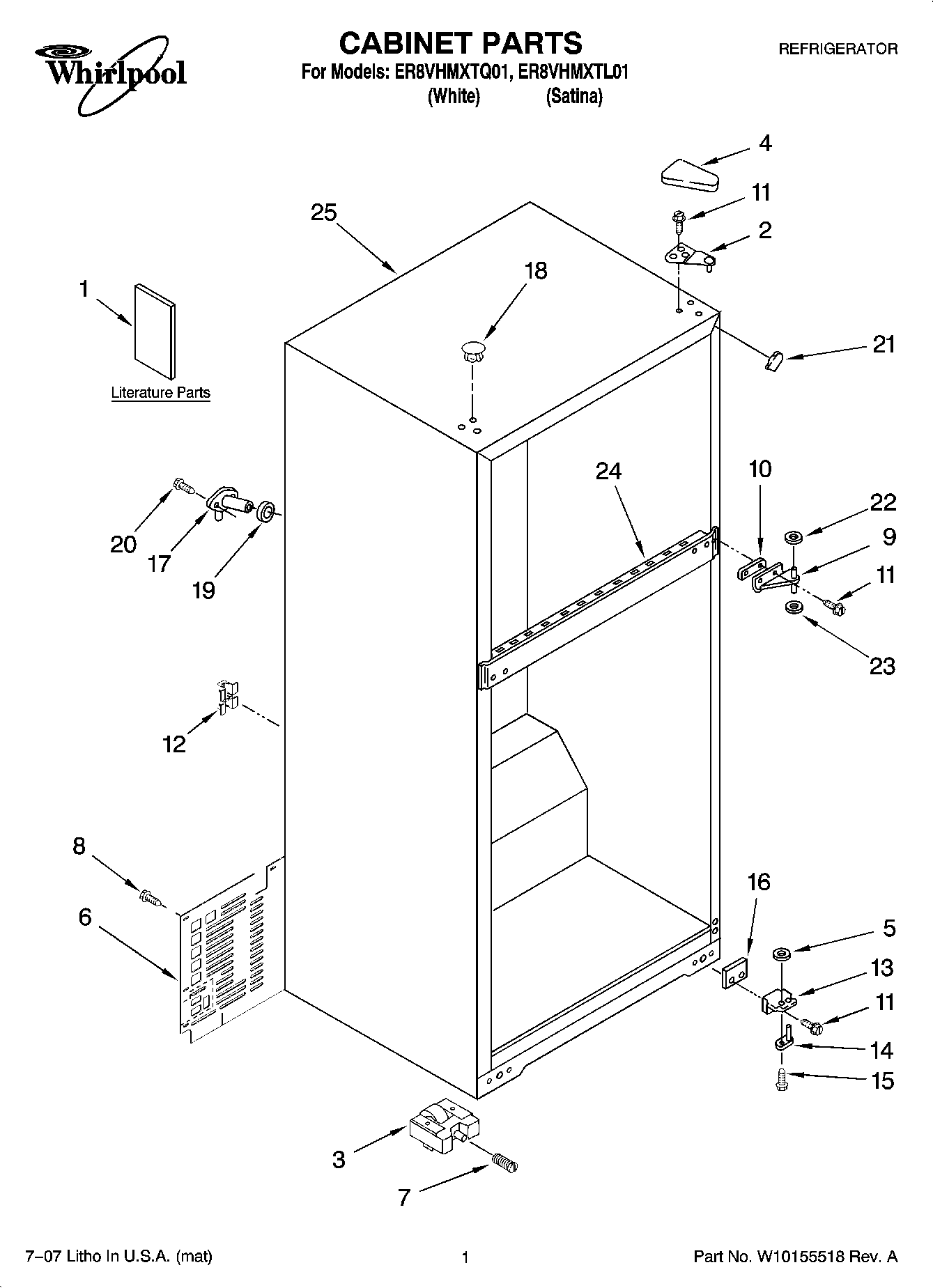

ER8VHMXTL01 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Guide
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP2213360 Whirlpool Refrigerator Cover
4	WP2213363 Whirlpool Refrigerator Cover
5	WP488296 Whirlpool Washer Refrigerator
6	WP2264132 Whirlpool Refrigerator Unit Cover
7	2222100 Whirlpool Refrigerator Screw
8	WP489442 Whirlpool Refrigerator Screw
9	WP2166037 Whirlpool Refrigerator Door Hinge
10	2215385 Whirlpool Refrigerator Shim
10	2166043 Whirlpool Refrigerator Shim
11	WP489497 Whirlpool Screw
12	2266506 Whirlpool Refrigerator Spacer
13	WP2325482 Whirlpool Bottom Hinge
14	Hinge-Pin Bott.
15	WP3428970 Whirlpool Refrigerator Screw
16	WP2201567 Whirlpool Hinge Shim
17	WP2196157 Whirlpool Fill Tube
18	WP2151652 Whirlpool Refrigerator Button Plug
18	WP2183998 Whirlpool Refrigerator Button Plug
19	WP1106508 Whirlpool Refrigerator Gasket
20	WP488729 Whirlpool Refrigerator Door Screw
21	W11500943 Whirlpool Refrigerator Filler
21	W10859322 Whirlpool Refrigerator Filler
22	WP489467 Whirlpool Hinge Shim
23	WP487576 Whirlpool Washer
24	Rail, Center (Not Serviced)
25	Cabinet, (Not A Serviceable Part)
