ER8VHMXTL01 05 – ICEMAKER PARTS

ER8VHMXTL01 05 – ICEMAKER PARTS

Written by

in

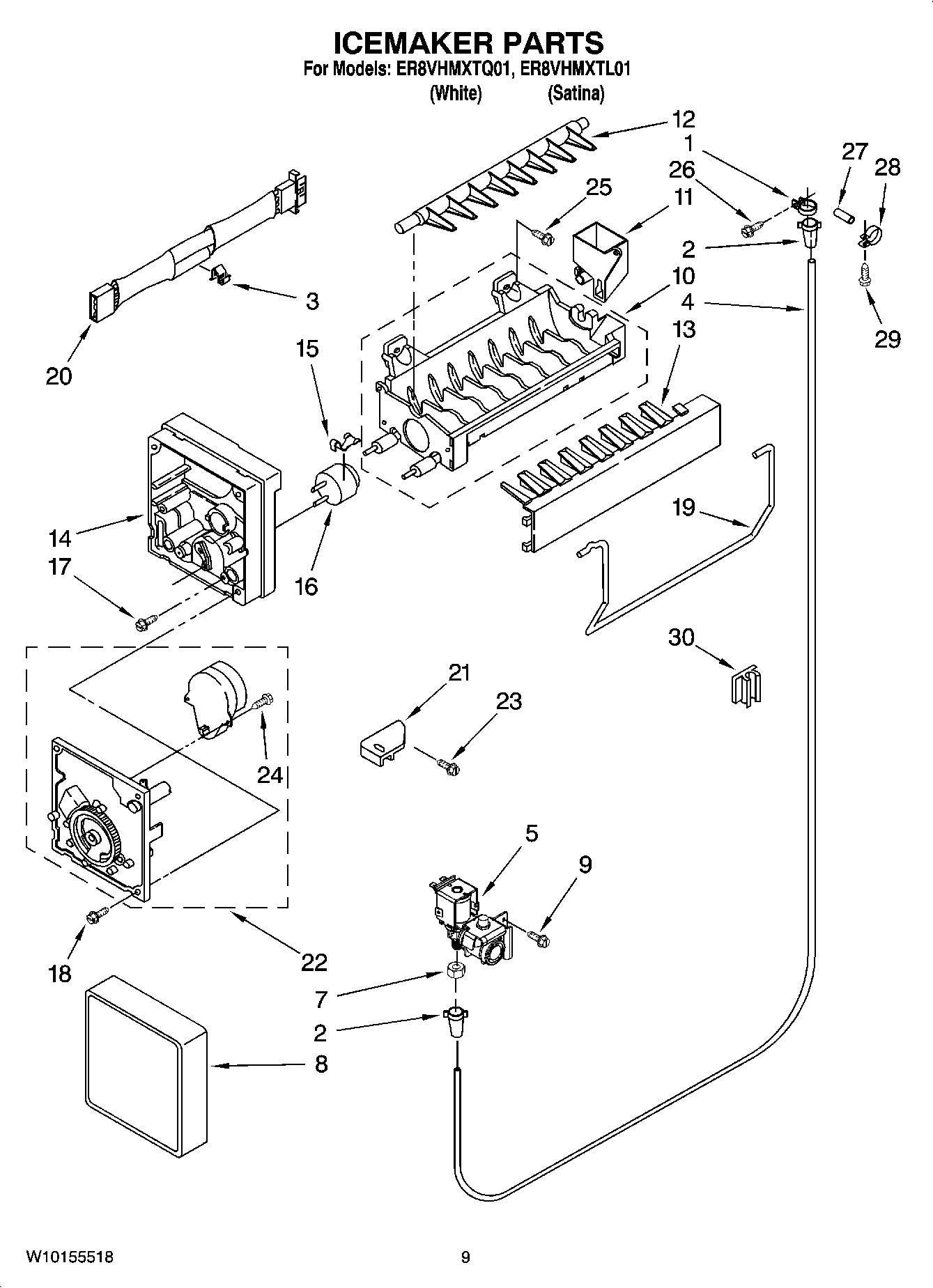

ER8VHMXTL01 05 – ICEMAKER PARTS

Products

PositionProduct
1WP488878 Whirlpool Refrigerator Tube Clamp
24387491 Whirlpool Refrigerator Insert
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5VALVE-INLT
7WP627018 Whirlpool Refrigerator Nut
82174157 Whirlpool Refrigerator Front Cover
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11W10122561 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WP2182124 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19WP627792 Whirlpool Refrigerator Shut Off Arm
20WP2187464 Whirlpool Refrigerator Wire Harness
21W11500948 Whirlpool Refrigerator Bracket
22W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
23WP489478 Whirlpool Refrigerator Screw
24489136 Whirlpool Refrigerator Screw
25WP488163 Whirlpool Refrigerator Screw
26WP489442 Whirlpool Refrigerator Screw
27Tube, Water Inlet
28WP488366 Whirlpool Refrigerator Clamp
29WP488729 Whirlpool Refrigerator Door Screw
30W11501419 Whirlpool Refrigerator Clip
1004317943 Whirlpool Refrigerator Ice Maker Assembly
