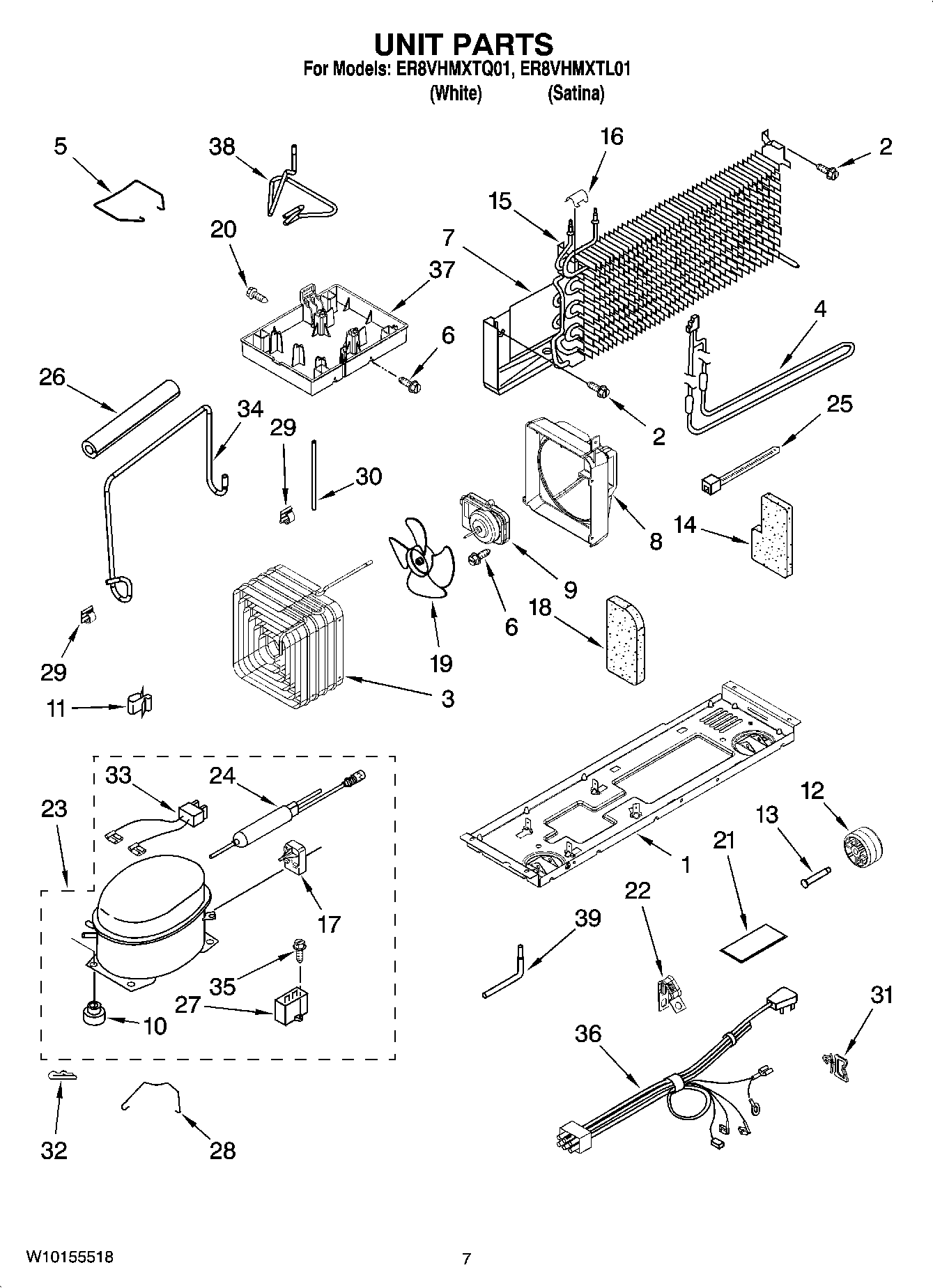

ER8VHMXTQ01 04 – UNIT PARTS

ER8VHMXTQ01 04 – UNIT PARTS

Written by

in

ER8VHMXTQ01 04 – UNIT PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	WPW10222450 Whirlpool Refrigerator Support
2	WP489442 Whirlpool Refrigerator Screw
3	Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2264835 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	Heat Shield
8	WP2263929 Whirlpool Refrigerator Air Baffle
9	W11578915 Whirlpool Condenser Motor
10	WP4387558 Whirlpool Refrigerator Compressor Grommet
10	WP2163786 Whirlpool Refrigerator Grommet
11	W10812038 Whirlpool Refrigerator Clip
12	WPW10475495 Whirlpool Roller Assembly
13	WP2264756 Whirlpool Refrigerator Rivet
14	8201619 Whirlpool Refrigerator Support Assembly
15	WP2263920 Whirlpool Refrigerator Evaporator
16	9791833 Whirlpool Refrigerator Clip
17	WPW10197428 Whirlpool Start Device
19	2264129 Whirlpool Refrigerator Fan Blade
20	WP489489 Whirlpool Screw
21	2266360 Whirlpool Shield Assembly
22	549193 Whirlpool Refrigerator Power Clamp
23	W10233960 Whirlpool Refrigerator Compressor
24	WPW10143759 Whirlpool Dryer Filter
24	W10843121 Whirlpool Refrigerator Tube
25	WPW10339879 Whirlpool Wire Tie
26	2264838 Whirlpool Refrigerator Sleeve
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Bale Strap
29	W11501419 Whirlpool Refrigerator Clip
30	2264278 Whirlpool Refrigerator Extension
31	CLIP, HARNESS
32	Clip, Compressor
33	WP2172890 Whirlpool Refrigerator Wire
34	W10140199 Whirlpool Extension Tube
35	SCREW
36	Wire Assy. Unit
37	WP2263928 Whirlpool Refrigerator Evaporator Tray
38	W10140197 Whirlpool Refrigerator Tube
39	W11676464 Whirlpool Tube
