ER8YHMXSL01 01 – CABINET PARTS

ER8YHMXSL01 01 – CABINET PARTS

Written by

in

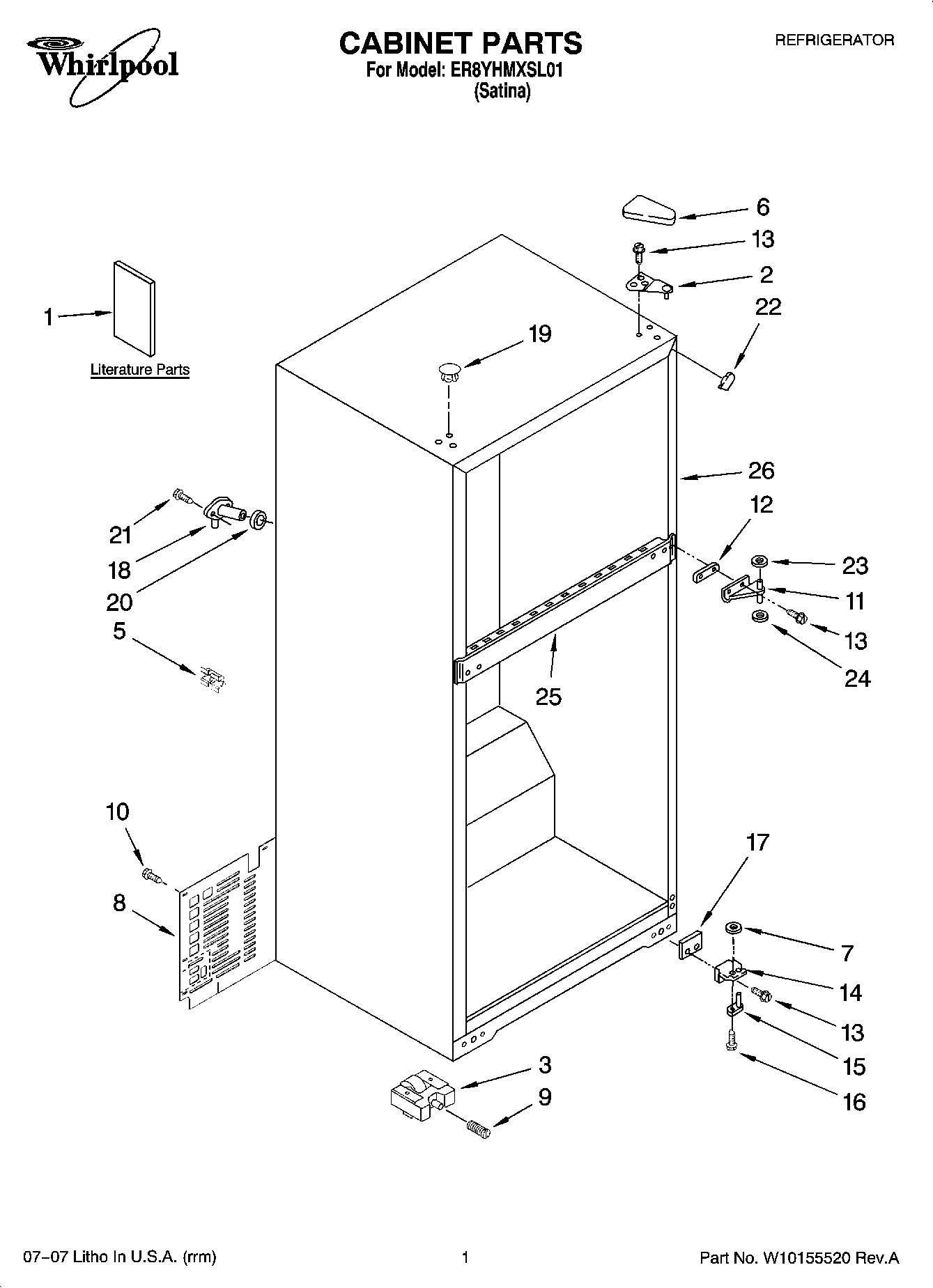

ER8YHMXSL01 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Modular Icemaker Service Sheet
1Energy Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Service & Wiring Sheet
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
32324094 Whirlpool Refrigerator Cabinet Roller
52266506 Whirlpool Refrigerator Spacer
6WP2213363 Whirlpool Refrigerator Cover
7WP488296 Whirlpool Washer Refrigerator
8WP2264132 Whirlpool Refrigerator Unit Cover
92222100 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
11WP2166037 Whirlpool Refrigerator Door Hinge
122215385 Whirlpool Refrigerator Shim
13WP489497 Whirlpool Screw
14WP2325482 Whirlpool Bottom Hinge
15Hinge-Pin Bott.
16WP3428970 Whirlpool Refrigerator Screw
17WP2201567 Whirlpool Hinge Shim
18WP2196157 Whirlpool Fill Tube
19WP2183998 Whirlpool Refrigerator Button Plug
20WP1106508 Whirlpool Refrigerator Gasket
21WP488729 Whirlpool Refrigerator Door Screw
22W11500943 Whirlpool Refrigerator Filler
23WP487802 Whirlpool Refrigerator Washer
24WP487576 Whirlpool Washer
25Rail, Center (Not Serviced)
26Cabinet, (Not A Serviceable Part)
