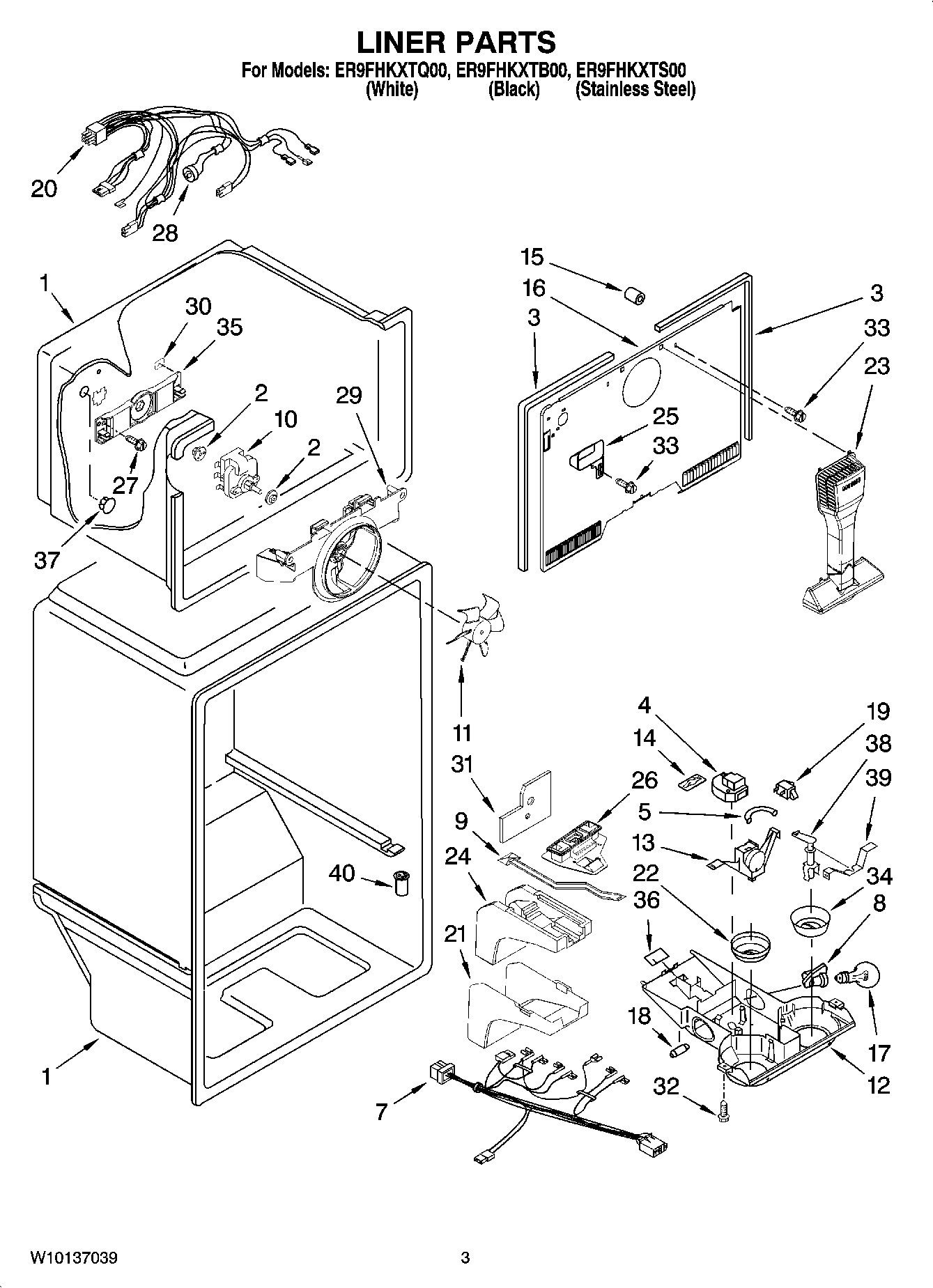

ER9FHKXTB00 02 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	WP2314156 Whirlpool Refrigerator Defrost Timer
5	Thermostat Tube Barrier
7	2310174 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	Clip, Defrost Timer
15	WP487996 Whirlpool Refrigerator Cap Tube
16	Cover, Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly Freezer Compt. (Includes Illus. 25)
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Cover, Hole
26	Air Separator Assembly
27	WP488163 Whirlpool Refrigerator Screw
28	WP2321800 Whirlpool Refrigerator Bimetallic Defrost
29	BRACKET, FAN MOTOR
30	Retainer-Screw
31	Shield, heat
32	WP489442 Whirlpool Refrigerator Screw
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
35	2254454 Whirlpool Refrigerator Bracket
36	WP2205079 Whirlpool Refrigerator Seal
37	WP941839 Whirlpool Refrigerator Button Plug
38	Post, Damper
39	Bracket, Damper Knob
40	WP2210509 Whirlpool Refrigerator Tub Valve
