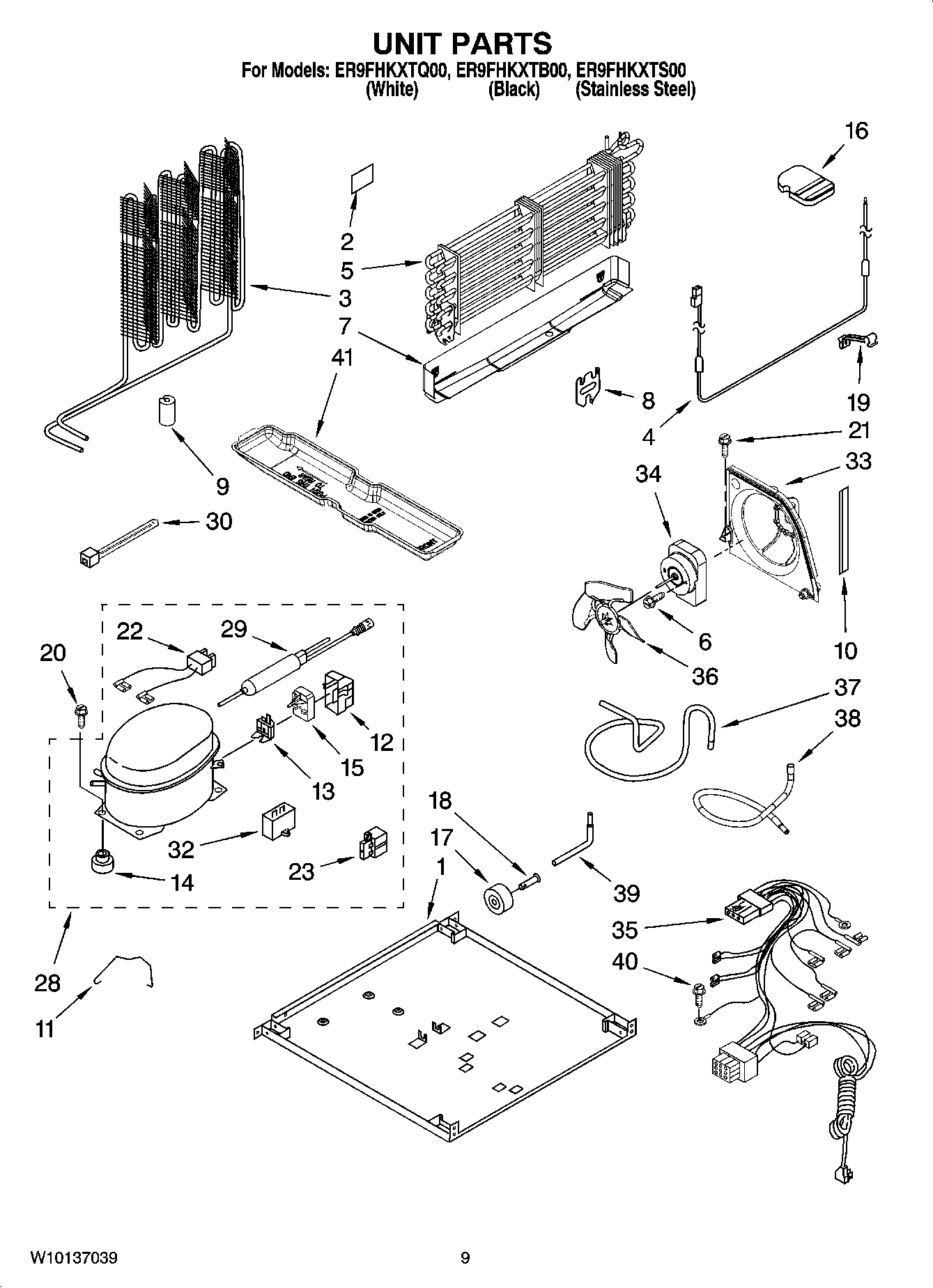

ER9FHKXTB00 05 – UNIT PARTSadmin2025-04-26T11:07:59+00:00ER9FHKXTB00 05 – UNIT PARTS ProductsPositionProduct1Plate, Unit Mounting2W11553819 Whirlpool Refrigerator Insulation3WP2214960 Whirlpool Refrigerator Condenser4WP2315531 Whirlpool Refrigerator Heater5Evaporator Assy.6WPW10171469 Whirlpool Refrigerator Screw7Drain Pan8Bracket, Heater9W10852725 Whirlpool Refrigerator Grommet10Extension, Air Baffle112212996 Whirlpool Refrigerator Retainer12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2214067 Whirlpool Refrigerator Overload Relay14WP4387558 Whirlpool Refrigerator Compressor Grommet14876811 Whirlpool Grommet15WP2225929 Whirlpool Refrigerator Start Device16Support Block17WPW10475495 Whirlpool Roller Assembly18W11594405 Whirlpool Axle19Clip, Heater213400518 Whirlpool Oven Foot Mount Screw22WP2172890 Whirlpool Refrigerator Wire23W10920279 Whirlpool Refrigerator Start Relay28W10309988 Whirlpool Refrigerator Compressor29WPW10143759 Whirlpool Dryer Filter30WPW10339879 Whirlpool Wire Tie32WPW10662129 Whirlpool Refrigerator Run Capacitor33WP2315541 Whirlpool Refrigerator Air Baffle34WP2188874 Whirlpool Refrigerator Condenser Motor352187382 Whirlpool Refrigerator Wire Harness36W11458267 Whirlpool Refrigerator Fan Blade37Tube, Discharge38Tube, Suction392154109 Whirlpool Refrigerator Tube40WP489128 Whirlpool Refrigerator Screw41Following Parts Not Illustrated and Optional Parts Not Included41VALVE, ACCESS (5/8``)41876764 Whirlpool Refrigerator Primary Valve41978027 Whirlpool Refrigerator Primary Valve41978030 Whirlpool Refrigerator Valve41WP978025 Whirlpool Refrigerator Valve41WP2254574 Whirlpool Refrigerator Evaporator Tray41VALVE, ACCESS (1/2``)41978026 Whirlpool Refrigerator Primary Valve41REFRIGERANT CHARGE 4.0 Ozs. (R134A)
