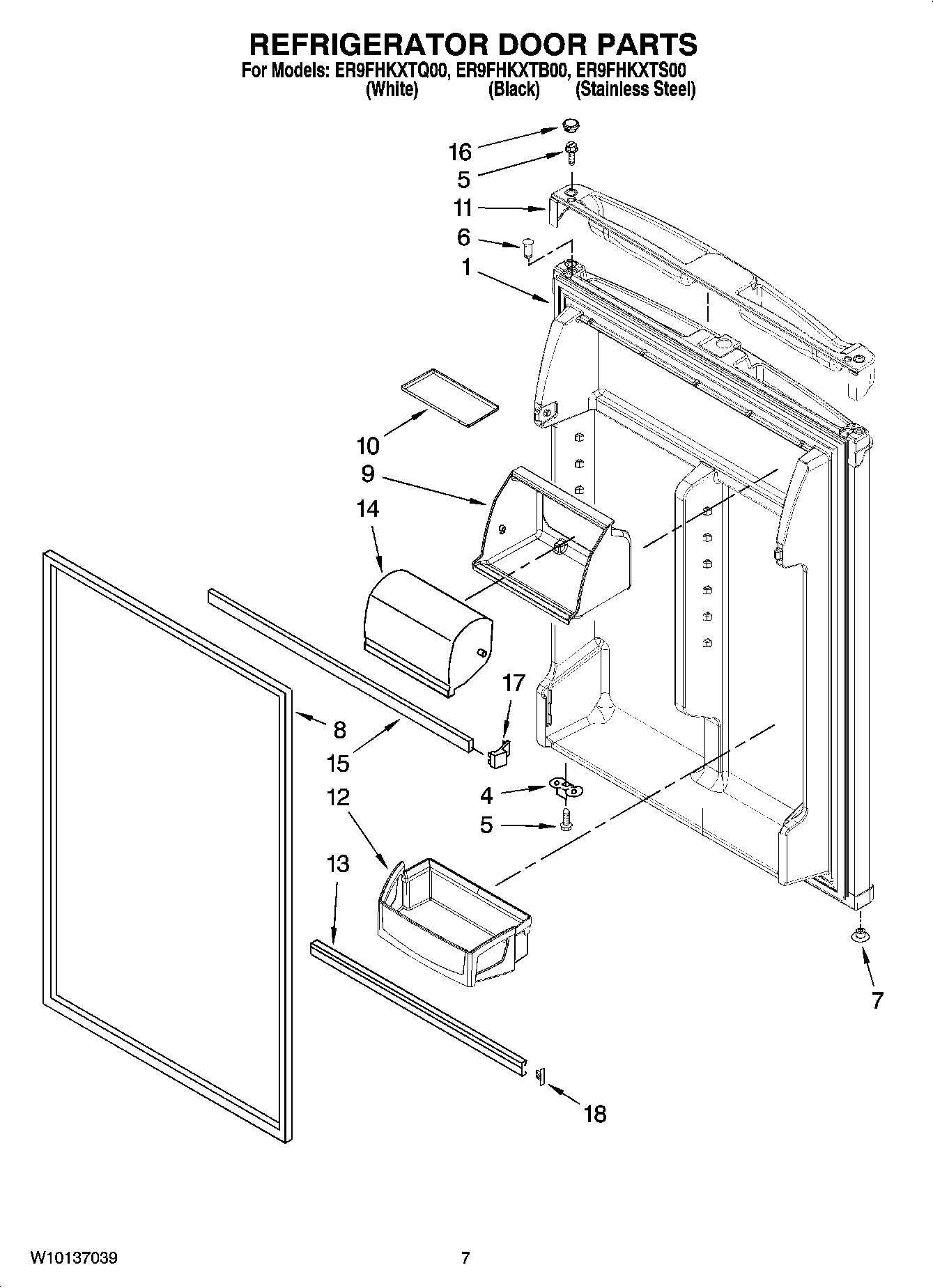

ER9FHKXTS00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 6 & 8) (Stainless Steel)
1	Refrigerator Door (Includes Illus. 8 & 12) (Black)
1	Refrigerator Door (Includes Illus. 8 & 12) (White)
4	W11745278 Whirlpool Bracket
5	WP681249 Whirlpool Screw Assembly
6	WP2183003 Whirlpool Thimble
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2177305 Whirlpool Refrigerator Door FIP Gasket
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
9	Housing Compartment
10	Tray, Door
11	Endcap, Handle (White)
11	Endcap, Handle (Black)
12	Bin, Door (4)
13	WPW10421484 Whirlpool Refrigerator Door Trim
14	DOOR-COMP
15	WP2159312 Whirlpool Refrigerator Door Trim
16	HOLE PLUG, ENDCAP (WHITE)
16	HOLE PLUG, ENDCAP (BLACK)
17	Endcap, Door Trim
18	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
