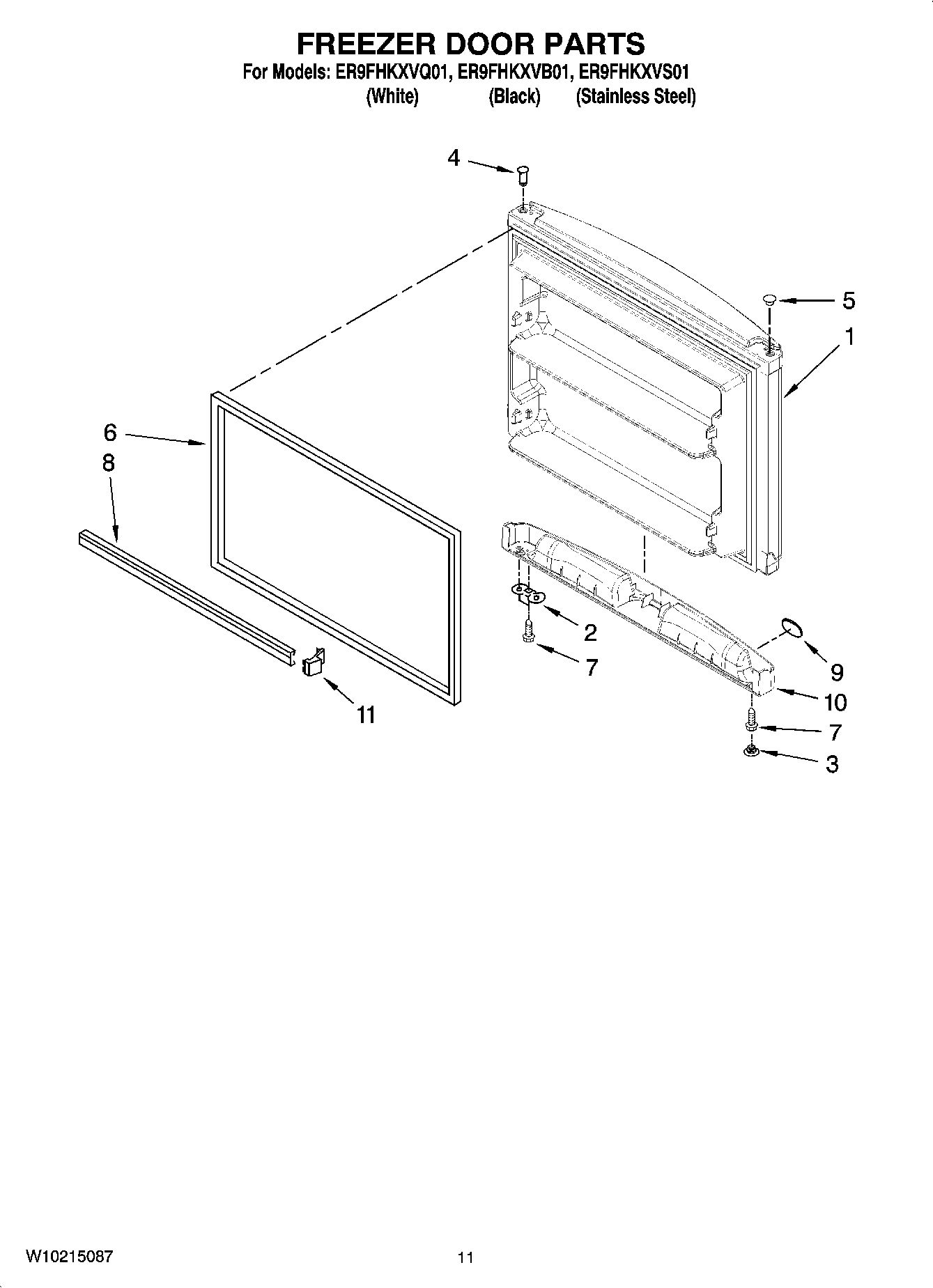

ER9FHKXVS01 06 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI41048A5
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799832
	WPL 799833
	WPL 876029
	W11729596 Whirlpool Ice Maker Field Install Kit
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI41049A9
	WPL ARI41045A6
	WPL ARI41046A9
	WPL ARI41047A1
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	212643 Whirlpool Refrigerator Permagum Sealer
	350930 Whirlpool White Spray Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
1	Freezer Door (Includes Illus. 6 & 7) (Black)
1	Freezer Door (Includes Illus. 6 & 7) (White)
1	Freezer Door (Includes Illus. 6 & 7) (Stainless)
2	W11745278 Whirlpool Bracket
3	HOLE PLUG, ENDCAP (BLACK)
3	HOLE PLUG, ENDCAP (WHITE)
4	WP2183003 Whirlpool Thimble
5	WP2212651 Whirlpool Refrigerator Button Plug
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6	2159327 Whirlpool Refrigerator Door Gasket
6	2177304 Whirlpool Refrigerator FIP Gasket
7	WP681249 Whirlpool Screw Assembly
8	Trim-Door (2)
9	WP2213265 Whirlpool Refrigerator Nameplate
10	Endcap, Handle (Black)
10	Endcap, Handle (White)
11	ENDCAP
