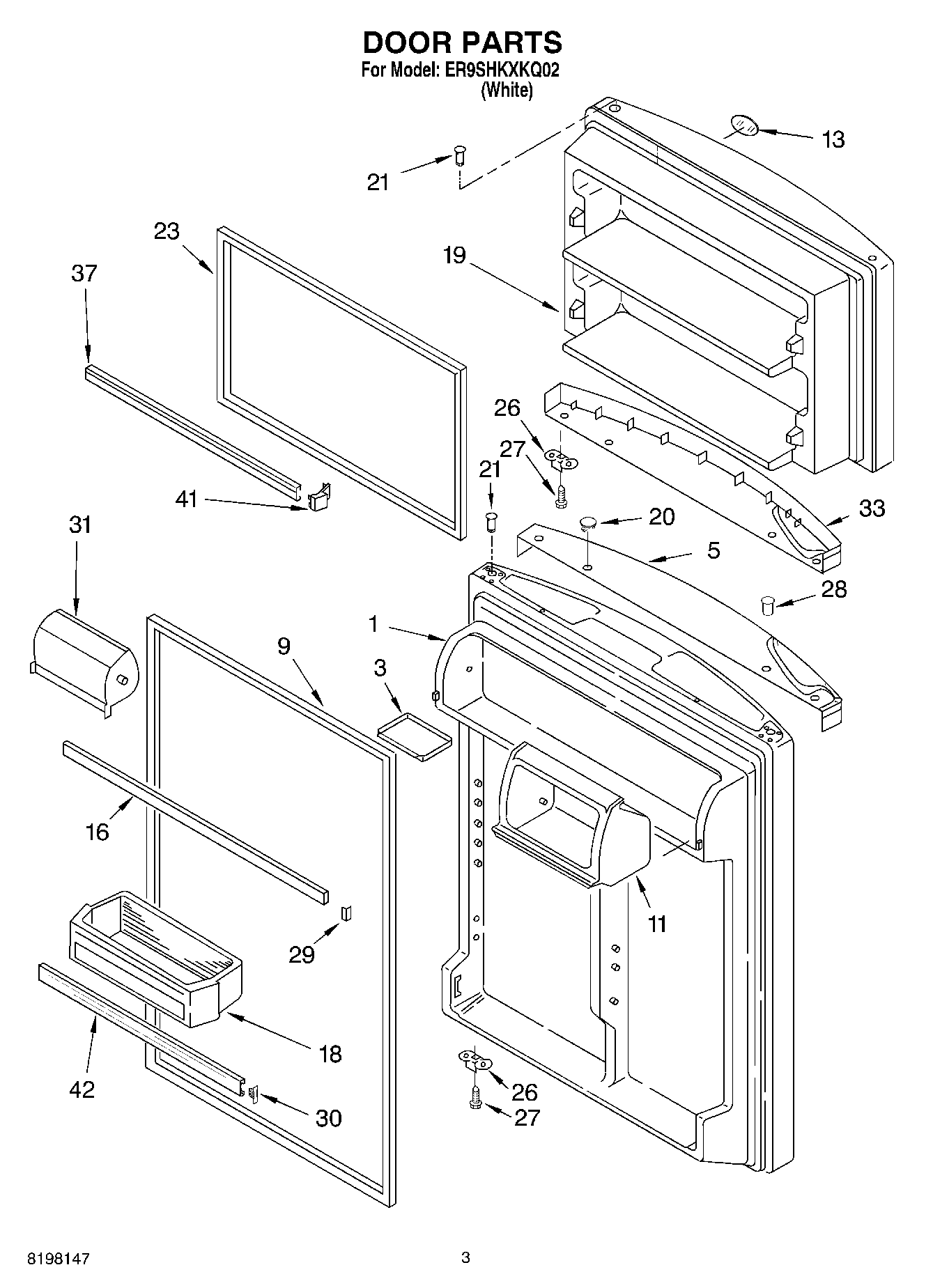

| 1 | Refrigerator Door (Includes Illus. 8 & 12) (White) |
| 3 | Tray, Door |
| 5 | Endcap, Handle (White) |
| 9 | 2159057 Whirlpool Refrigerator Fresh Food Door Gasket |
| 11 | Housing Compartment |
| 13 | WP2213265 Whirlpool Refrigerator Nameplate |
| 16 | WP2159312 Whirlpool Refrigerator Door Trim |
| 18 | Bin, Door (4) |
| 19 | Freezer Door (Includes Illus. 6 & 7) (White) |
| 20 | HOLE PLUG, ENDCAP (WHITE) |
| 21 | WP2183003 Whirlpool Thimble |
| 23 | 2159327 Whirlpool Refrigerator Door Gasket |
| 26 | W11745278 Whirlpool Bracket |
| 27 | WP681249 Whirlpool Screw Assembly |
| 28 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 29 | Endcap, Door Trim |
| 30 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 31 | DOOR-COMP |
| 33 | Endcap, Handle (White) |
| 37 | Trim-Door (2) |
| 41 | ENDCAP |
| 42 | WPW10421484 Whirlpool Refrigerator Door Trim |
