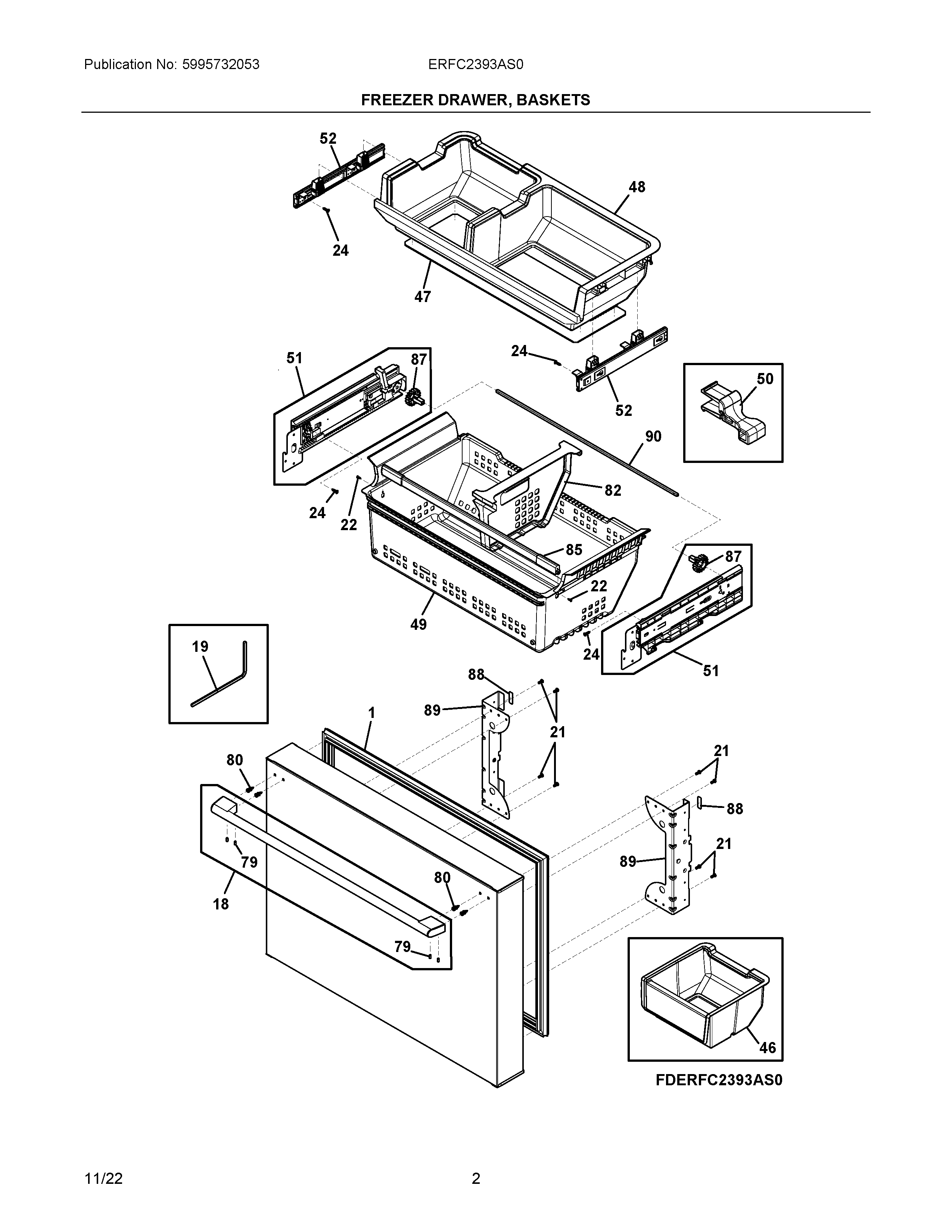

ERFC2393AS0 02 – FREEZER DRAWER, BASKETS

Products

Position	Product
NIB	242039701 Frigidaire Refrigerator Screw
NI	242146401 Frigidaire Refrigerator Screw
NIB	242039702 Frigidaire Refrigerator Screw
1	GASKET
11	5304532821 Frigidaire Drawer Panel
18	5304524807 Frigidaire Handle Assembly
19	5304508270 Frigidaire Wrench
21	241690602 Frigidaire Refrigerator Screw
22	241953902 Frigidaire Refrigerator Screw
24	240383412 Frigidaire Refrigerator Screw
46	CONTAINER, ICE, FREEZER
47	GLASS, BASKET, UPPER
48	BASKET, FREEZER, GRAY, UPPER
49	BASKET, FREEZER, GRAY, LOWER
50	CLIP, FREEZER BASKET, GRAY
51A	5304532801 Frigidaire Slide Assembly
51	5304532800 Frigidaire Slide Assembly
52A	SLIDE ASSEMBLY, BASKET, GRAY, LH UPPER
52	SLIDE ASSEMBLY, BASKET, GRAY, RH UPPER
79	5304523101 Frigidaire Screw
80	218755504 Frigidaire Refrigerator Shoulder Screw
82	DIVIDER, LOWER BASKER, GRAY, FREEZER
85	BEAM, SUPPORT, GRAY, DIVIDER, LOWER BASKET
87	PINION, GEAR, GRAY
88	241979602 Frigidaire BUMPER
89	BRACKET, FREEZER DRAWER, GRAY
90	241770705 Frigidaire Bar
