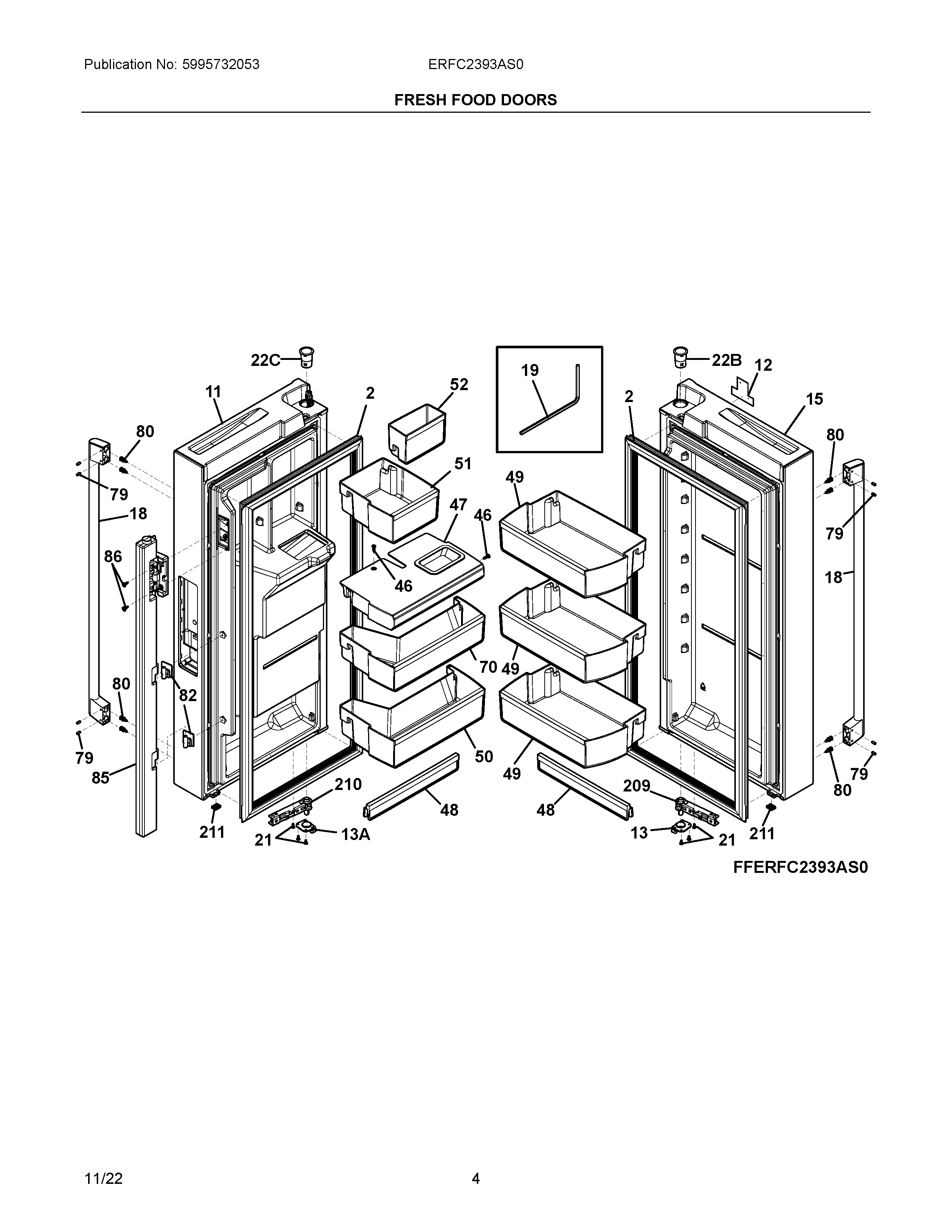

ERFC2393AS0 03 – FRESH FOOD DOORS

ERFC2393AS0 03 – FRESH FOOD DOORS

Written by

in

ERFC2393AS0 03 – FRESH FOOD DOORS

Products

PositionProduct
NIAHARNESS, WIRING, DOOR/DISPENSER
NI241806601 Frigidaire Refrigerator Water Connector
NIA5304508776 Frigidaire Washer Lock
2GASKET-DR
115304533314 Frigidaire Door Assembly
125304532471 Frigidaire Refrigerator Label Assembly
13A5304508038 Frigidaire Refrigerator Door Stop
135304508039 Frigidaire Refrigerator Door Stop
15DOOR ASSEMBLY, FRESH FOOD, STAINLESS, RH
185304524807 Frigidaire Handle Assembly
195304508270 Frigidaire Wrench
21241953902 Frigidaire Refrigerator Screw
22C241760401 Frigidaire Refrigerator Bearing
22B241760403 Frigidaire Refrigerator Bearing
46SCREW, 19.1MM, GREY
47COVER BRACKET, ICE CHUTE, GRAY
485304532856 Frigidaire Door Bin
495304532854 Frigidaire Refrigerator Door Bin
50DOOR BIN, 2 LITER, LH DOOR
515304533094 Frigidaire Door Bin
525304533093 Frigidaire Door Bin
70DOOR BIN, DAIRY
795304523101 Frigidaire Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
82241779402 Frigidaire HINGE-MULLION
855304530856 Frigidaire Assembly-Mullion
86242015001 Frigidaire Refrigerator Screw
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304508077 Frigidaire Refrigerator Bumper
