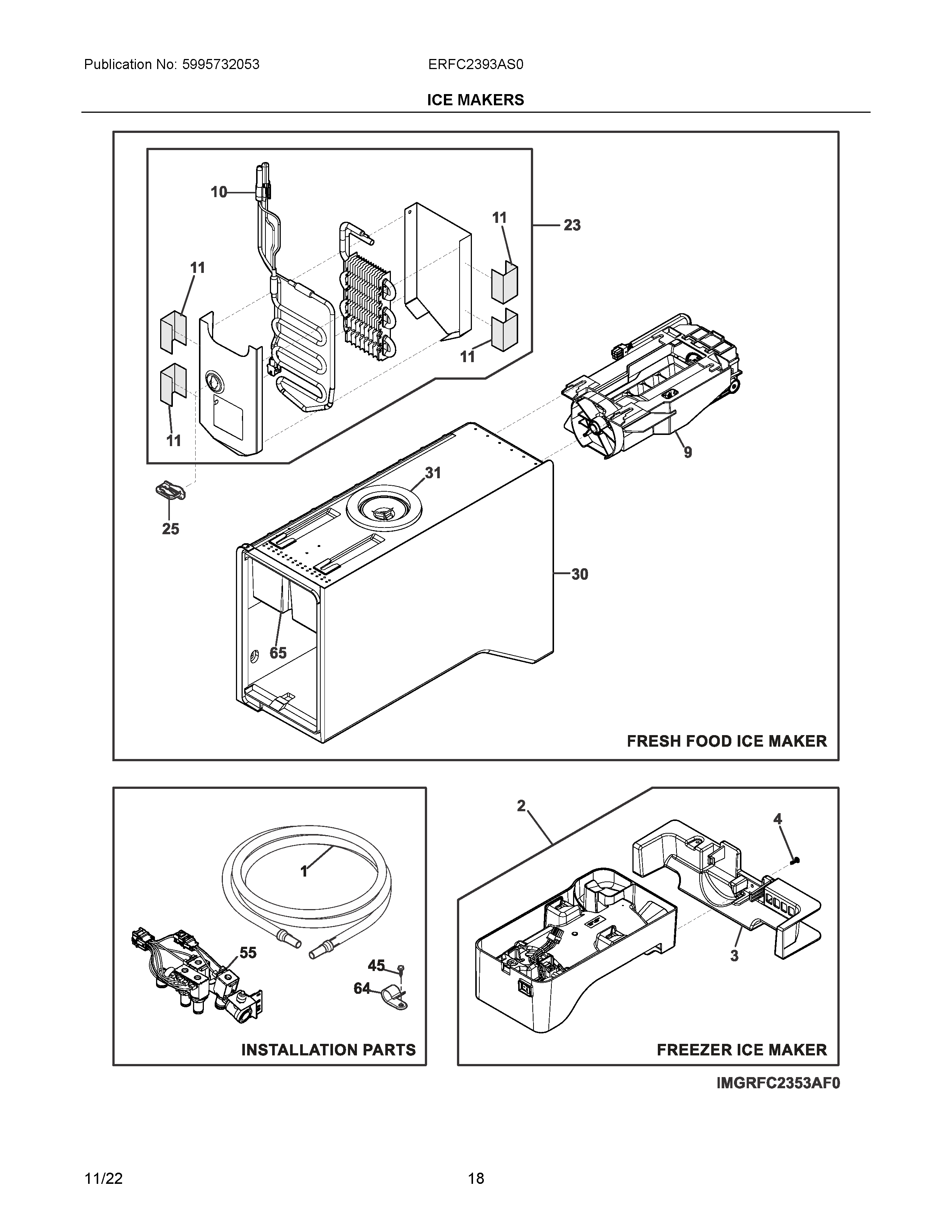

ERFC2393AS0 09 – ICE MAKERS

ERFC2393AS0 09 – ICE MAKERS

Written by

in

ERFC2393AS0 09 – ICE MAKERS

Products

PositionProduct
NIA241953902 Frigidaire Refrigerator Screw
NIB5304530732 Frigidaire Refrigerator Wiring Harness
NIA5303918645 Frigidaire Refrigerator Thermistor Kit
NIC242200102 Frigidaire Refrigerator Clip
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NIB218976830 Frigidaire Refrigerator Tube
NI218515401 Frigidaire Refrigerator Clip
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA218976829 Frigidaire Refrigerator Tube
1218976443 Frigidaire Refrigerator Tube
25304532932 Frigidaire Ice Maker
3BRACKET, ICE MAKER BLOCK, GRAY, FREEZER
45304453707 Frigidaire Oven Screw
9243297608 Frigidaire Refrigerator Ice Maker
105304519629 Frigidaire Refrigerator Clip
115304485759 Frigidaire Refrigerator Tape
235304530680 Frigidaire Assembly Evaporator
255304508037 Frigidaire Refrigerator Connector
30HOUSING ASSEMBLY, ICE MAKER, GREY, FRESH FOOD
31241512813 Frigidaire Seal Doughnut
455303307980 Frigidaire Oven Screw
55VALVE,WATER,QUAD SOLENOID
64240396801 Frigidaire Refrigerator Tube Clamp
65COVER, WIRING
