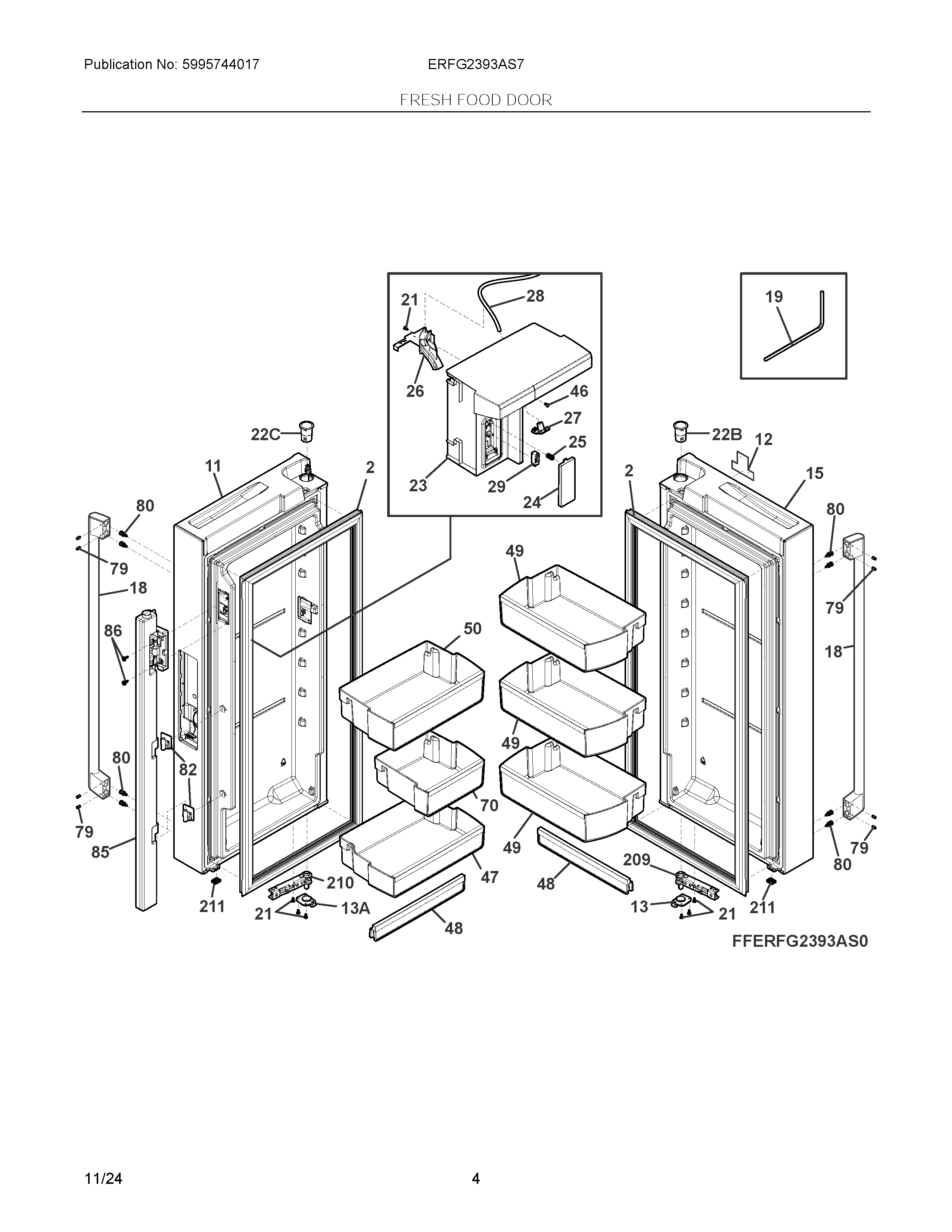

ERFG2393AS7 03 – FRESH FOOD DOOR

ERFG2393AS7 03 – FRESH FOOD DOOR

Written by

in

ERFG2393AS7 03 – FRESH FOOD DOOR

Products

PositionProduct
NIB5304531012 Frigidaire Harness
NIAHARNESS
NIA5304508776 Frigidaire Washer Lock
NI241806601 Frigidaire Refrigerator Water Connector
2GASKET-DR
115304532830 Frigidaire Door Assembly
125304532471 Frigidaire Refrigerator Label Assembly
13A5304508038 Frigidaire Refrigerator Door Stop
135304508039 Frigidaire Refrigerator Door Stop
155304532831 Frigidaire Door Assembly
185304524807 Frigidaire Handle Assembly
195304508270 Frigidaire Wrench
21241953902 Frigidaire Refrigerator Screw
22B241760403 Frigidaire Refrigerator Bearing
22C241760401 Frigidaire Refrigerator Bearing
23HOUSING, WATER DISPENSER, GRAY
24BUTTON, WATER DISPENSER, GRAY
255304519199 Frigidaire Refrigerator Spring
265304531239 Frigidaire Refrigerator Retainer
275304532859 Frigidaire Nozzle Assembly
28218976449 Frigidaire Water Tube
29241870104 Frigidaire Switch
46SCREW, 19.1MM, GREY
475304532904 Frigidaire Door Bin
485304532856 Frigidaire Door Bin
495304532854 Frigidaire Refrigerator Door Bin
505304532855 Frigidaire Door Bin
705304532857 Frigidaire Door Bin
80218755504 Frigidaire Refrigerator Shoulder Screw
82241779402 Frigidaire HINGE-MULLION
855304530856 Frigidaire Assembly-Mullion
86242015001 Frigidaire Refrigerator Screw
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304508077 Frigidaire Refrigerator Bumper
