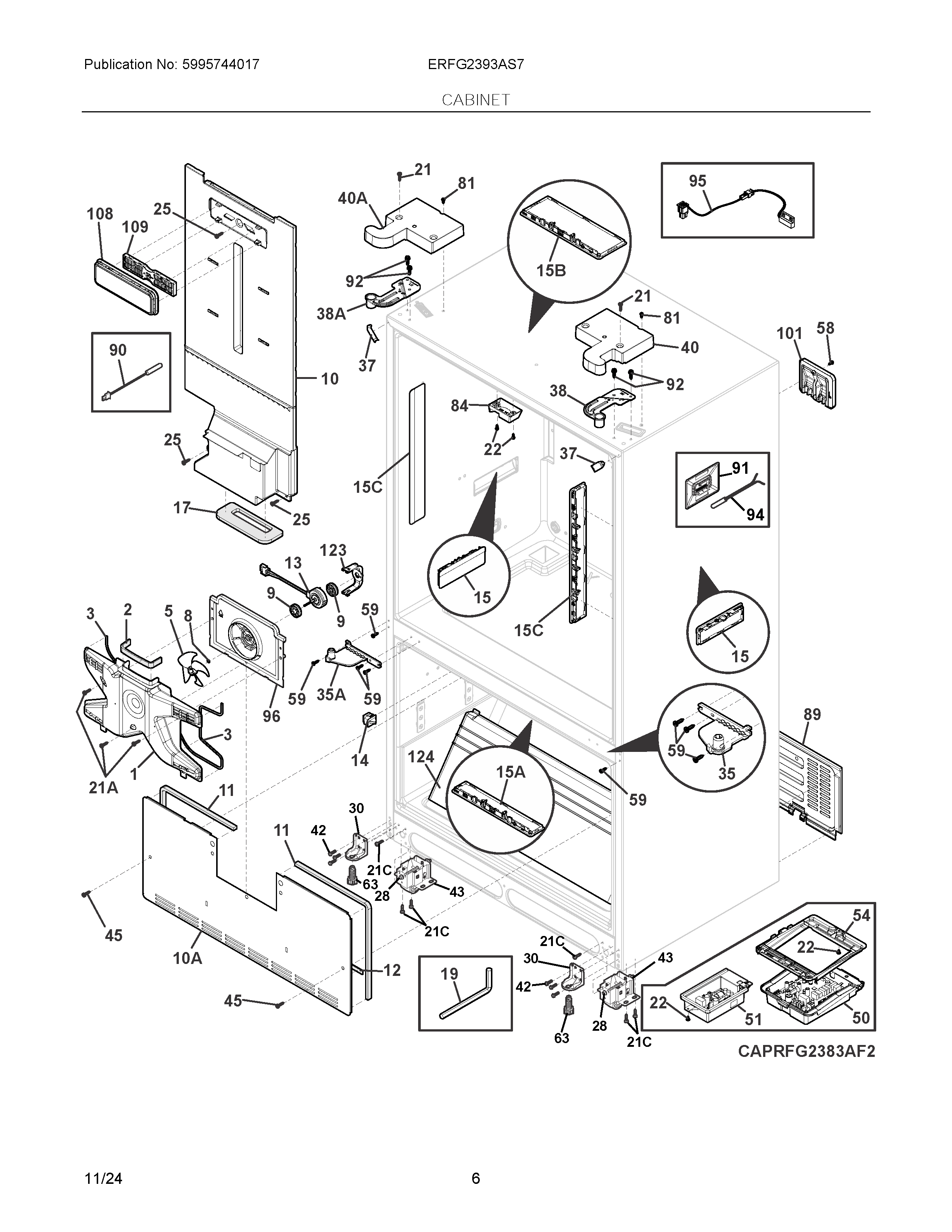

ERFG2393AS7 04 – CABINET

ERFG2393AS7 04 – CABINET

Written by

in

ERFG2393AS7 04 – CABINET

Products

PositionProduct
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NIAWCI 241842302
NI242039702 Frigidaire Refrigerator Screw
NI218515401 Frigidaire Refrigerator Clip
NIC241969001 Frigidaire Refrigerator Cap
NIA241500305 Frigidaire Refrigerator Screw
NIA5304508776 Frigidaire Washer Lock
NIB241953902 Frigidaire Refrigerator Screw
NIA5304532916 Frigidaire Harness
15304530963 Frigidaire Cover
2218249809 Frigidaire Refrigerator Seal
3241860117 Frigidaire Gasket
55304532795 Frigidaire Refrigerator Blade
8215474201 Frigidaire Refrigerator Washer
95304508006 Frigidaire Refrigerator Bushing
10A241860404 Frigidaire Refrigerator Cover
105303918904 Frigidaire AIR TOWER W/ Gasket
11241860104 Frigidaire Refrigerator Coil Cover Gasket
12241860105 Frigidaire Refrigerator Gasket-Coil Cover
13MOTOR
145304520495 Frigidaire Refrigerator Switch
15C5304524658 Frigidaire Refrigerator Light Assembly
15A5304526810 Frigidaire Light Assembly
15BLAMP
155304524656 Frigidaire Refrigerator Assembly-Light
175304530941 Frigidaire Refrigerator Gasket
195304532082 Frigidaire Door Alignment Kit
21C5304515677 Frigidaire Package of 4 Screws
21241732101 Frigidaire Refrigerator Screw
21A242015001 Frigidaire Refrigerator Screw
225304455650 Frigidaire Refrigerator Screw
25240383407 Frigidaire Refrigerator Screw
285304499445 Frigidaire Refrigerator Roller Assembly
30241778702 Frigidaire Refrigerator Bracket-Anti Tip
355304530887 Frigidaire Refrigerator Hinge Assembly
35A5304530888 Frigidaire Refrigerator Hinge Assembly
375304519618 Frigidaire Refrigerator Cabinet Corner Trim
38A5304530819 Frigidaire Refrigerator Hinge Bracket
385304530818 Frigidaire Refrigerator Hinge Bracket
40A5304534835 Frigidaire Cover
405304534834 Frigidaire Cover
42240578902 Frigidaire Screw Mounting Hinge
435304533552 Frigidaire Roller Assembly
45241500303 Frigidaire Refrigerator Screw
505304535057 Frigidaire Erf 2507 Main Board
515304532919 Frigidaire Control Board
54SUPPORT, HOUSING, MAIN BOARD
58241853202 Frigidaire Refrigerator Screw
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
635304533555 Frigidaire Anti-Tip Leveler
81134154100 Frigidaire Screw 10-32 x 0.375 Co
84WCI 5304532842
895304520905 Frigidaire Assembly Cover Refrigerator
90240597220 Frigidaire Sensor
91WCI 5304532808
92241710601 Frigidaire Refrigerator Screw
945303918775 Frigidaire Refrigerator Thermistor
955304531014 Frigidaire Harness
96242204604 Frigidaire Shroud
101COVER, WATER TUBE
108WCI 5304532870
109WCI ELPAULTRA2
1235304508007 Frigidaire Refrigerator Bracket
124WCI 242006904
