ERL6296SK4 13 – SYSTEM

ERL6296SK4 13 – SYSTEM

Written by

in

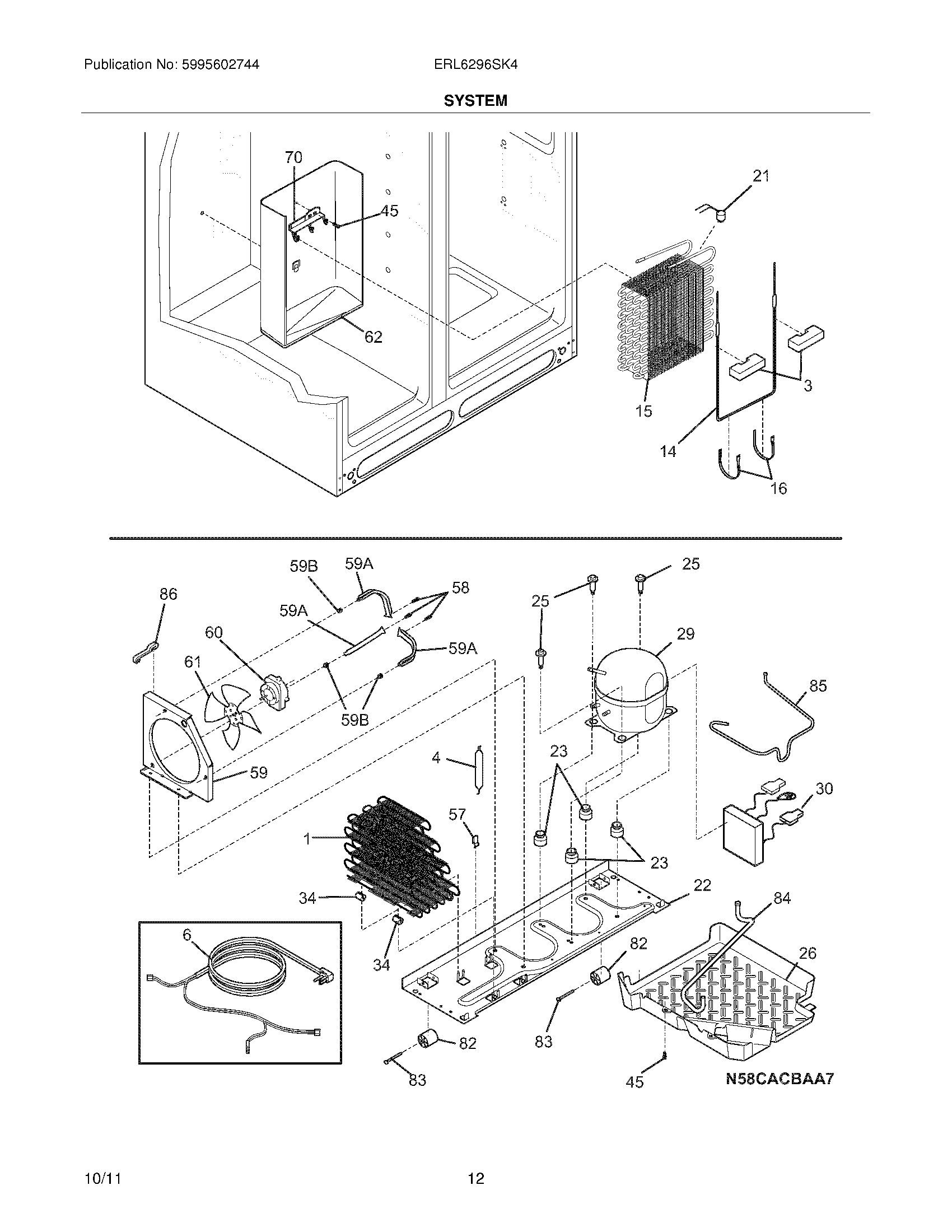

ERL6296SK4 13 – SYSTEM

Products

Position	Product
NI	WCI 241804902
NI	WCI 240447102
NI	240451503 Frigidaire Refrigerator Screw
NI	5303918327 Frigidaire Refrigerator Heat Exchanger Kit
NI	241510802 Frigidaire Refrigerator Wiring Harness
NI	WCI 5303918244
NI	WCI 240447201
NI	WCI 241599904
NI	WCI 241635703
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	218252201 Frigidaire Refrigerator Screw
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
1	5304526057 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 241550503
14	WCI 5303918308
15	5303918480 Frigidaire Refrigerator Evaporator Kit
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	WCI 240330011
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 240491503
26	241697502 Frigidaire Pan-Defrost Drain
29	WCI 5303918331
30	WCI 241577503
34	240405201 Frigidaire Refrigerator Grommet
45	5304455650 Frigidaire Refrigerator Screw
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59A	WCI 240346502
59B	WCI 240346601
59	241946105 Frigidaire Refrigerator Condenser Shroud
60	297279550 Frigidaire Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304481642 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241957901 Frigidaire Refrigerator Tube-Drain
85	241856901 Frigidaire Refrigerator Tube-Connector
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
